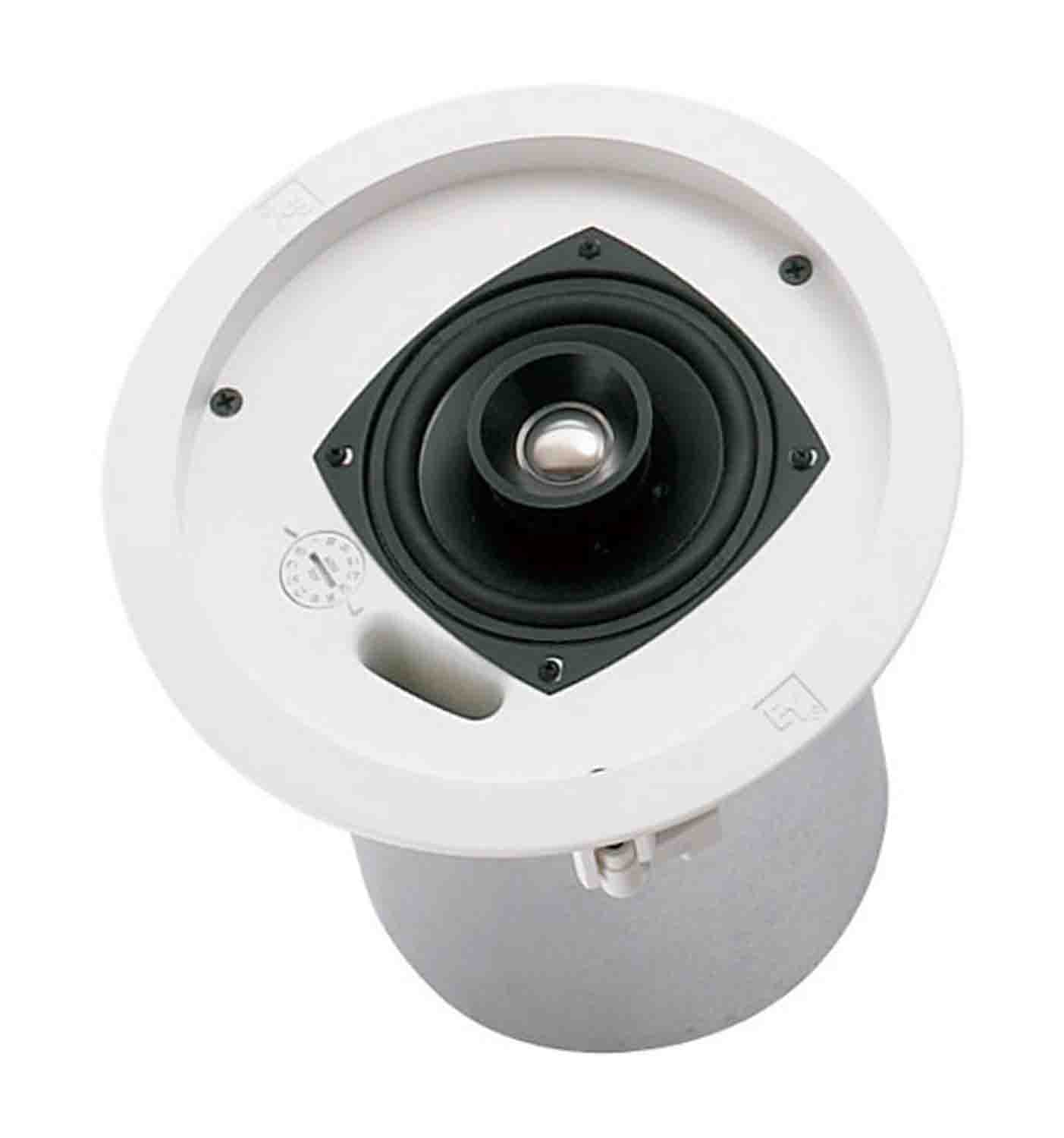

Electro-Voice EVID C4.2, 4Inch 2‑way coaxial ceiling loudspeaker

The Electro-Voice EVID C4.2, 4Inch 2‑way coaxial ceiling loudspeaker is a compact, low-profile 4" coaxial installation speaker, offering a smooth, extended frequency response appropriate for both background music and paging applications in offices, waiting rooms, and retail spaces.

The EVID C4.2 is equipped with a line-matching transformer for 70V/100V operation, and a transformer tap selector switch that includes 8 Ohm bypass operation, conveniently located on the front of the speaker. The enclosure is both ported and tuned, optimizing bass response, and the unit is supplied with a well-designed 3-point mounting system for simplified installation.

Product Specification:

Speaker Type: Ported cabinet, internally damped, two-way (passive crossover included)

LF Transducer: 4-inch polypropylene cone

Power Rating: 200W

Enclosure Material: Steel enclosure and UL94V-0 rated baffle and bezel

Sensitivity: 1 W/1 m 86dB

Height: 6.93" (176mm)

Weight Net: 5.95lbs (2.7kg)

Transformer: Yes

Input Formats: 8ω, 70 V, 100 V

Coverage (Nominal -6 dB): 130 (conical)

Mounting Systems: Integrated 3-point toggle anchors

Chassis Size: 4" (101.6mm)

Regulatory Approvals: UL1480; UL2043

Diameter (Max): 7.13" (181mm)

Package Weight: 19.95 lb

Box Dimensions (LxWxH): 26.5 x 11.6 x 10.7"
