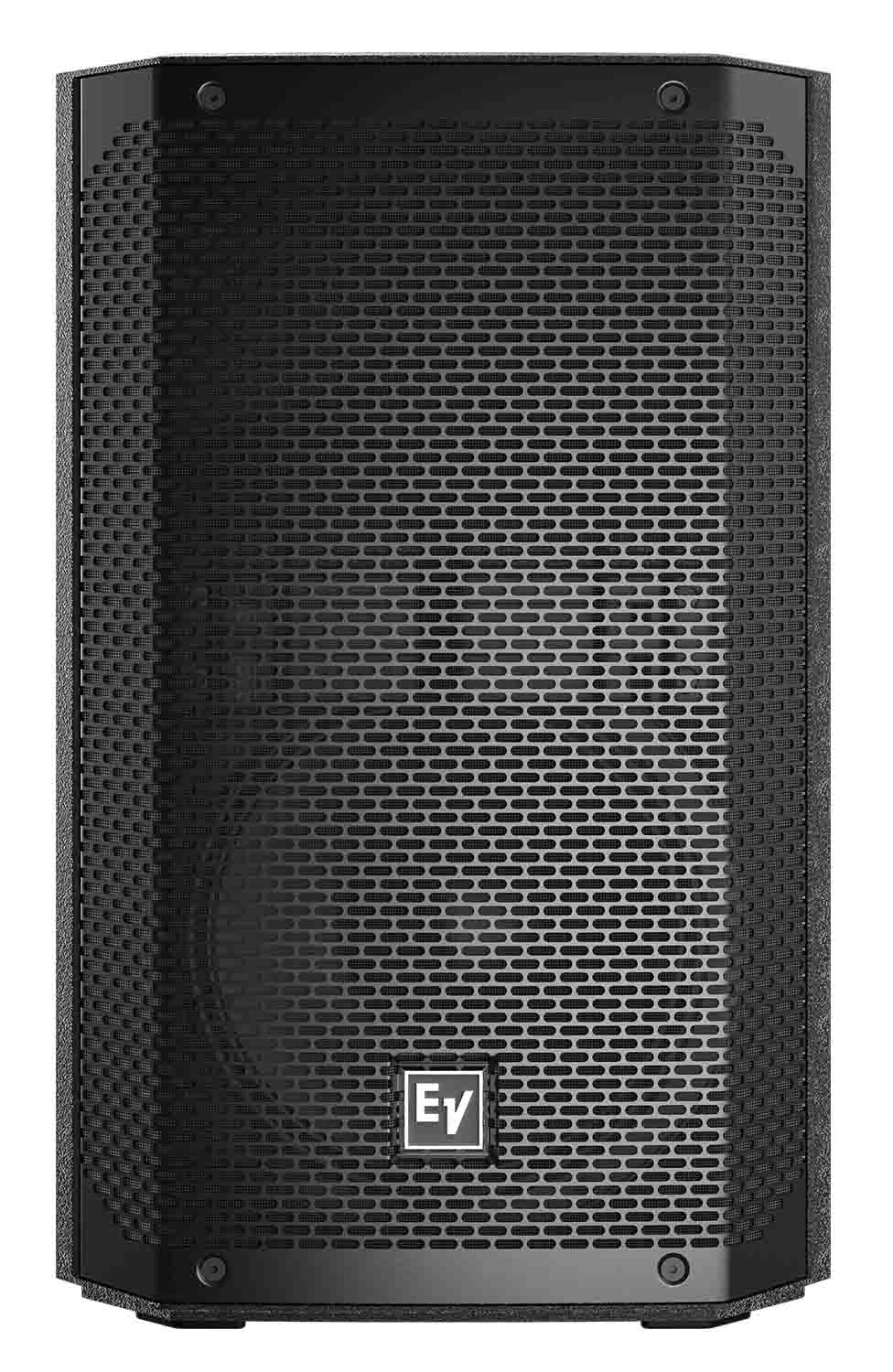

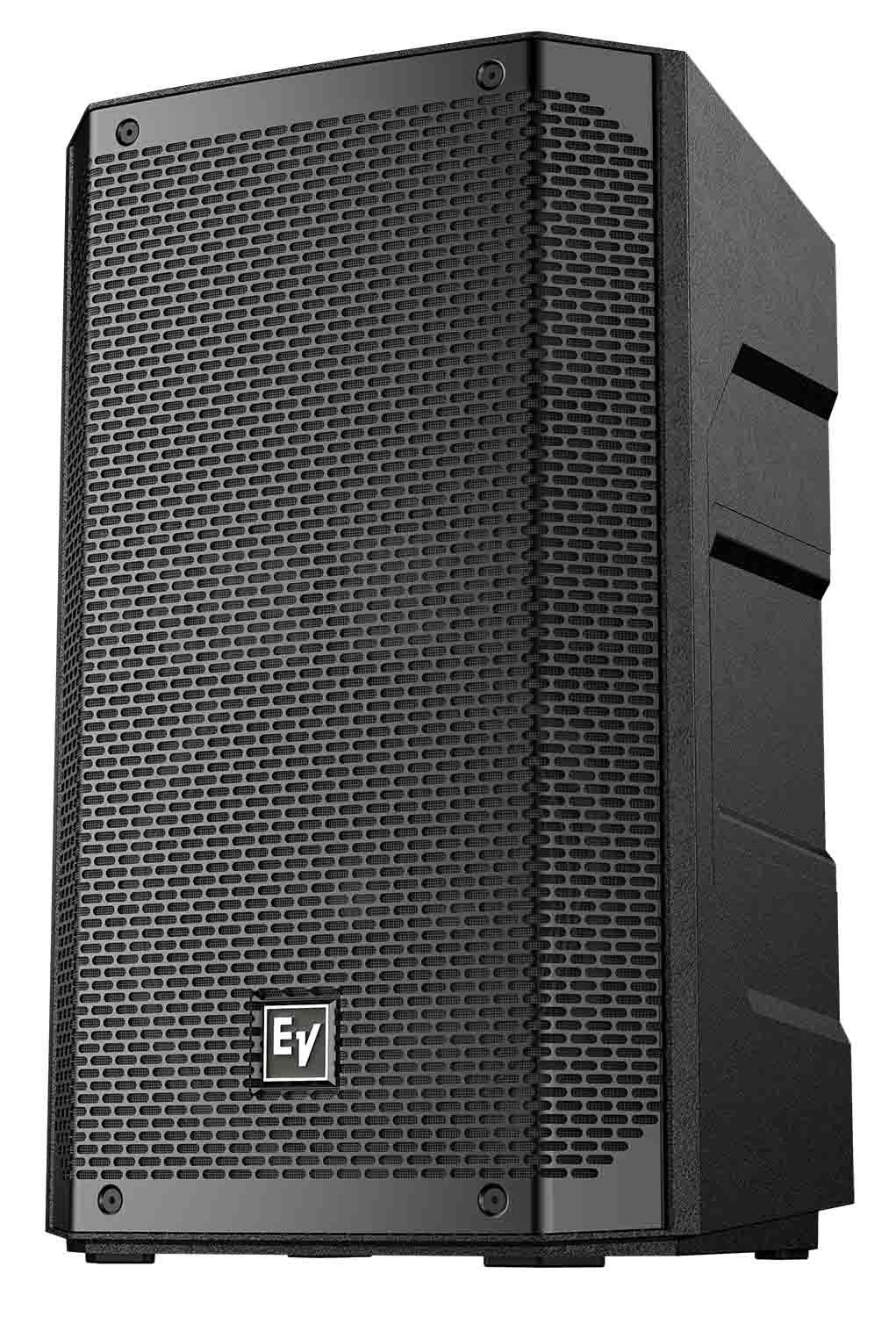

Electro-Voice ELX200-10, 10" Passive Loudspeaker

The Electro-Voice ELX200-10 is a 10" Passive Loudspeaker is designed to deliver an unprecedented combination of sound quality, portability and durability at its price point. All-new custom components tested to levels far exceeding the industry norm make ELX200 a robust workhorse capable of handling real-world abuse and professional applications beyond the capability of competitors’ products in its category.

Every aspect of ELX200 is designed for ideal results as part of the whole - the acoustical, electrical and mechanical components all work together seamlessly. The full-range models feature a low profile form factor designed with a high-spec composite enclosure to balance weight, manageability, as well as structural integrity. The proprietary features that have made the other members of the EV portable speaker family a goto for best-in-class performance are also present: Signal Synchronized Transducers (SST) waveguide concept.

EV's industry-leading quality and testing procedures yield efficient transducer design and meaningful specs, resulting in components that deliver accurate, linear response at the system’s highest output levels. Translation: loud and clear all the way up to the limit. Unified in one of the strongest full-range composite enclosures ever built by EV. The ELX200 is established as the new benchmark for toughness - both acoustically and physically; maximum efficiency with maximum toughness.

Product Specifications:

Speaker Type: Full-Range

Woofer Size: 10inch

Frequency Response (-3 dB)¹: 65 Hz - 20 kHz

Frequency Range (-10 dB)¹: 49 Hz - 22 kHz

Max. SPL/1m (calc)²: 127dB

Coverage (Nominal -6 dB) H: 90°

Coverage (Nominal -6 dB) V: 60°

LF Transducer: EVS-10M 254 mm (10 in)

Power Rating: 1200W

Crossover Frequency: 2 kHz

Connector Type: Dual NL4

Enclosure Material: Polypropylene Composite

Grille: 18 AWG steel with powdercoat

Available Color: Black or White

Height: 531mm (20.91")

Width: 330mm (12.99")

Recommended High-Pass Frequency: 55Hz

Depth: 319mm (12.56")

Weight Net: 13.4kg (29.54 lbs)

Shipping Weight: 15.3kg (33.73 lbs)

Nominal Impedance: 8Ω
