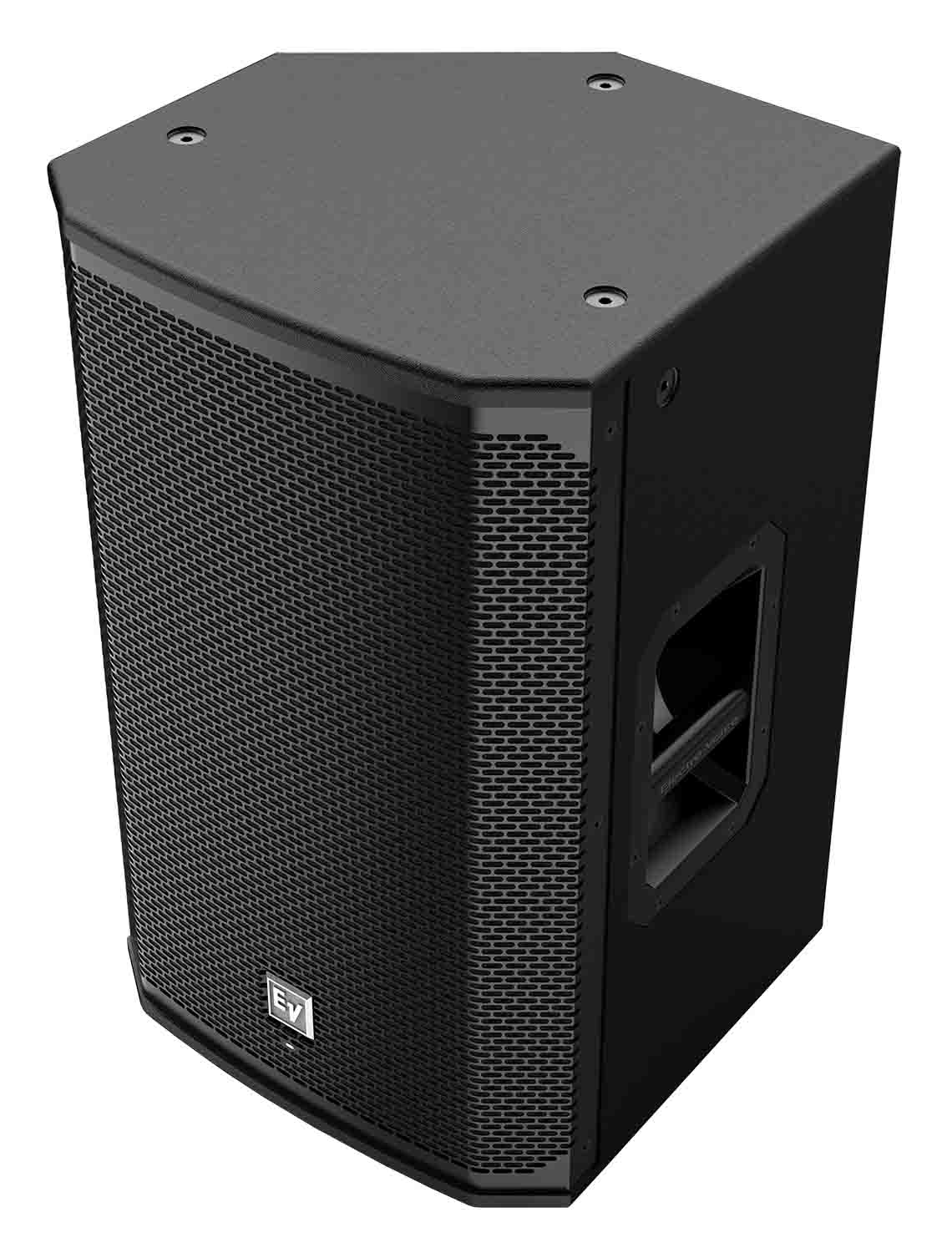

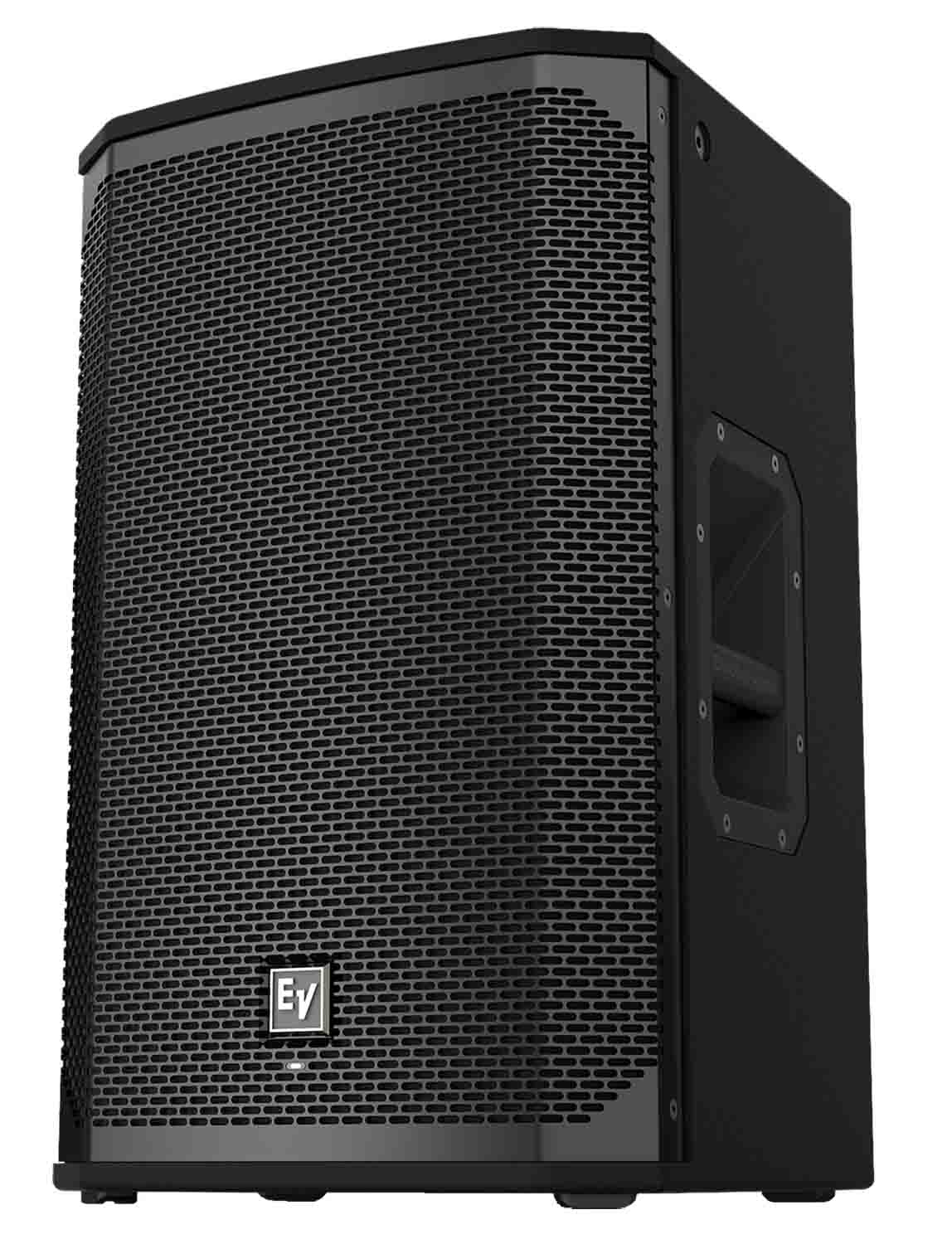

Electro-Voice EKX-12P, 12" Powered Loudspeaker - 1500W

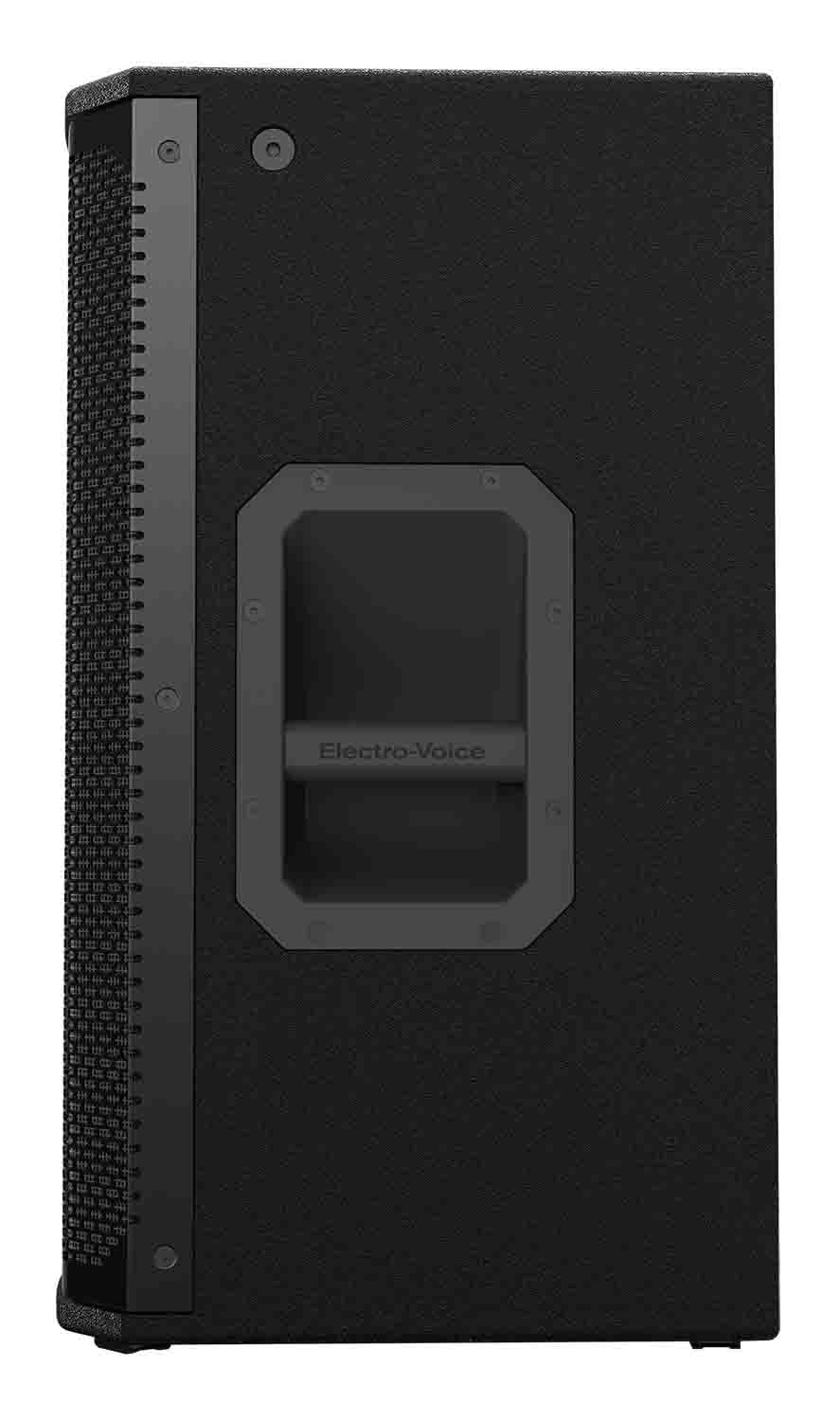

The Electro-Voice EKX-12P is a 12" Powered Loudspeaker - 1500W High-efficiency 1500 W Class D power amplifier delivers up to 132 dB peak SPL on the EKX-12P via high-sensitivity transducers designed and engineered by EV and Intelligent thermal management with a variable-speed fan controlled by multiple onboard sensors, ensuring superior performance and reliability in demanding environmental conditions. Lightweight, compact 15-mm wood enclosure with internal bracing, durable EVCoat finish, eight M10 threaded mounting points, aluminum pole mounts, and all-metal handles.

Product Specifications:

Frequency Response (-3 dB): 60 Hz - 18 kHz¹

Frequency Range (-10 dB): 50 Hz - 20 kHz¹

Maximum SPL:  132 dB²

Coverage (H x V): 90" x 60"

Power Rating: 1500 W

LF Transducer: EVS-12M 300 mm (12 in)

HF Transducer:  DH-1M 1-inch titanium compression driver

Crossover Frequency: 1.7 kHz

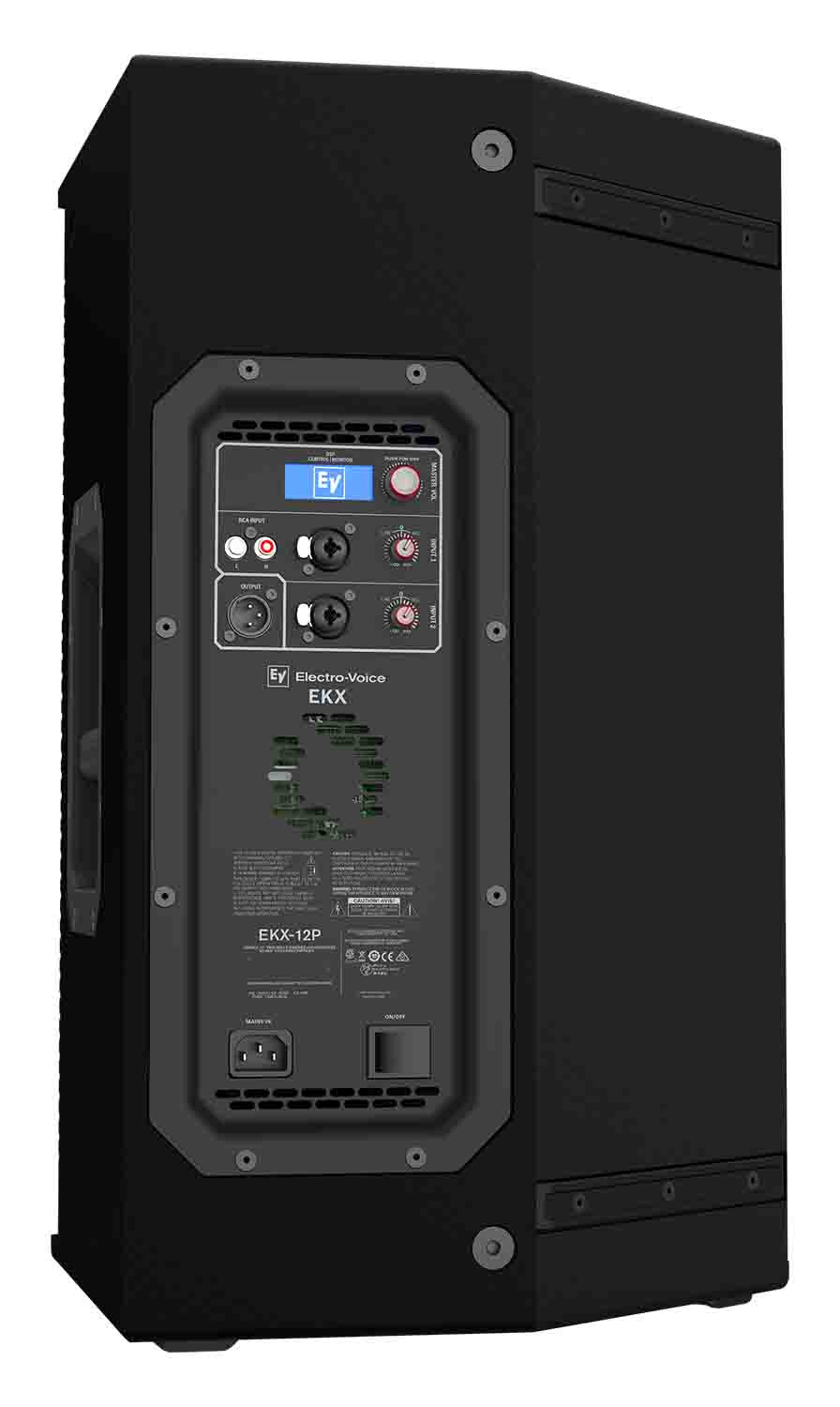

Connectors: (1) Stereo RCA input, (2) XLR/TRS combo jack, and (1) XLR link output

Enclosure: 15 mm plywood with EVCoat

Grille: 18 AWG steel with powdercoat

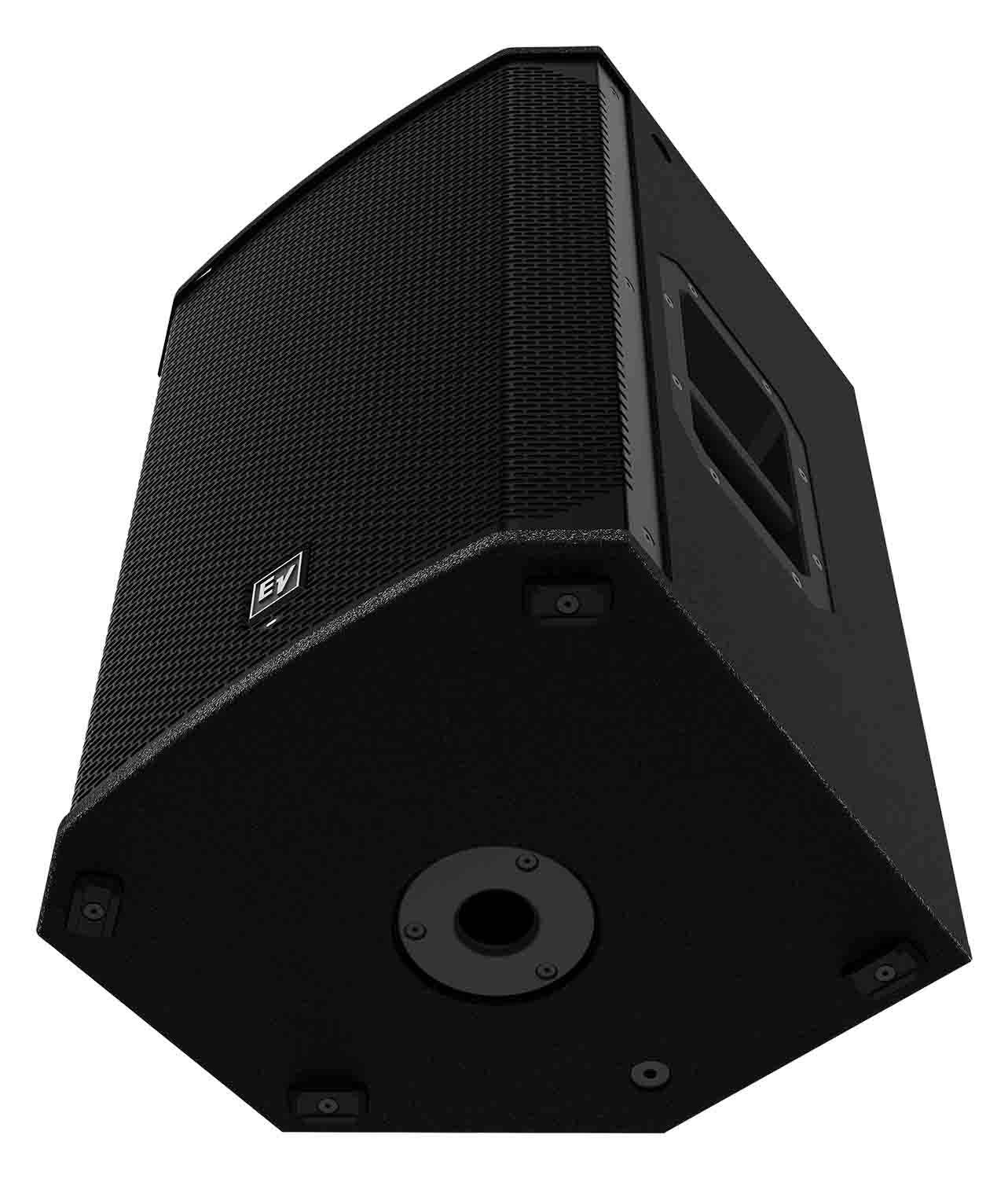

Suspension: (8) M10 threaded mounting points

Dimensions (H x W x D):  607 mm x 375 mm x 356 mm (24 in x 15 in x 14 in)

Net Weight: 18.8 kg (41.4 lb)

Shipping Weight: 22.9 kg (50.4 lb)

Power Consumption: 1.8 A³
