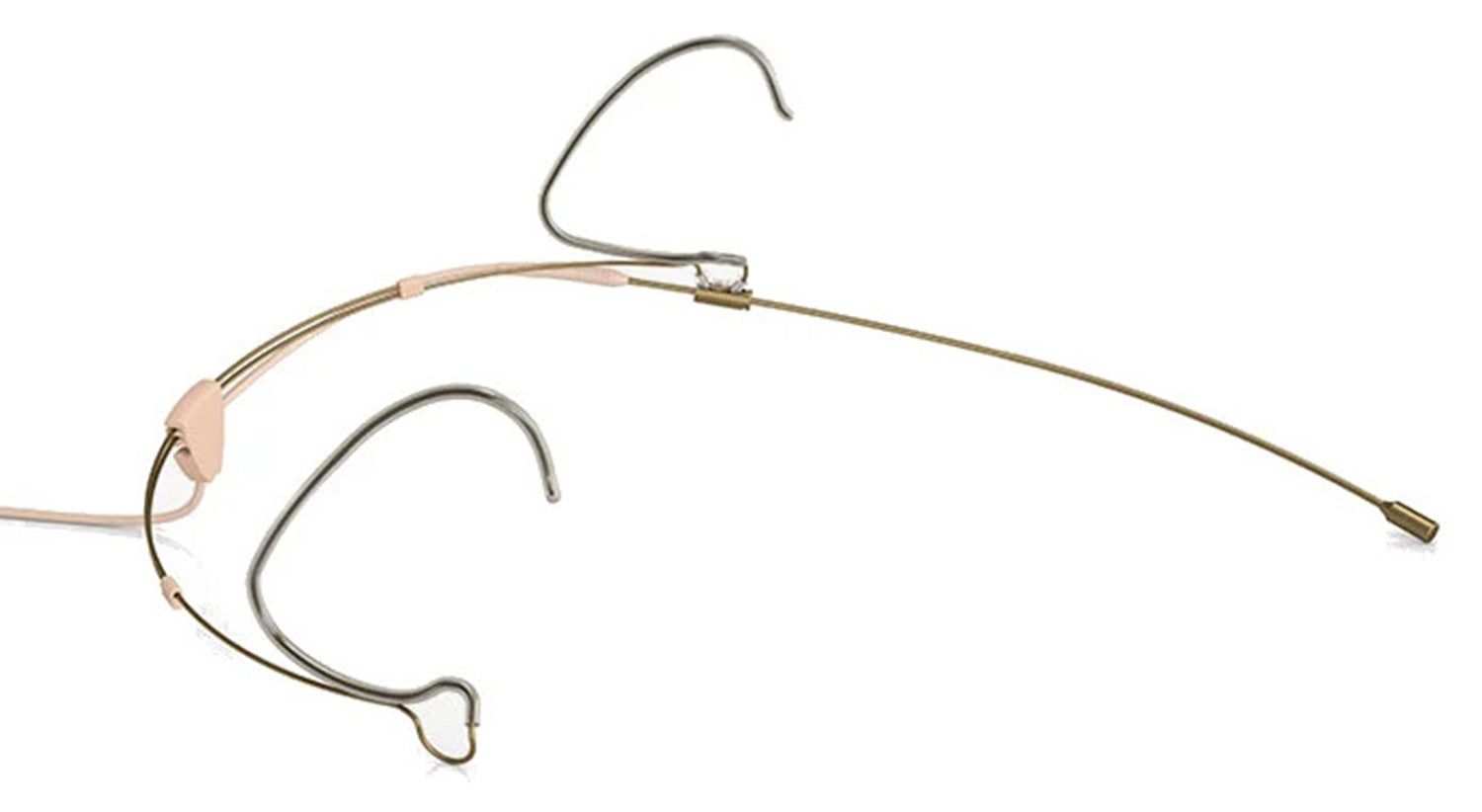

DPA 6066-OC-R-F10 Subminiature Omnidirectional Headset Microphone with TA4F Adapter

The DPA 6066-OC-R-F10 Subminiature Omnidirectional Headset Microphone with TA4F Adapter is Small in size, but packed with reliable clarity the 6066 Subminiature Headset from DPA Microphones features a microphone only 3mm in diameter with all the award-winning, powerful performance for which DPA is renowned.

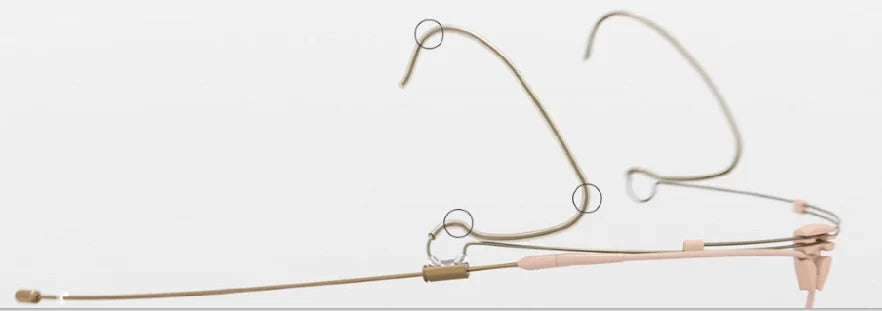

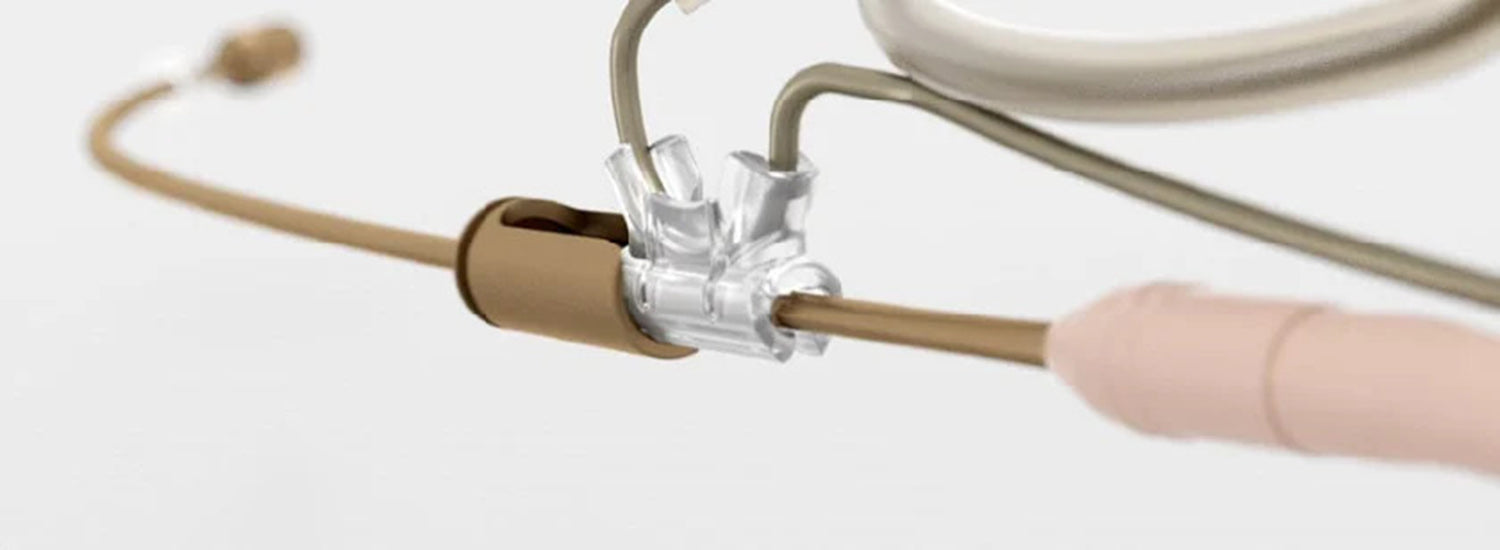

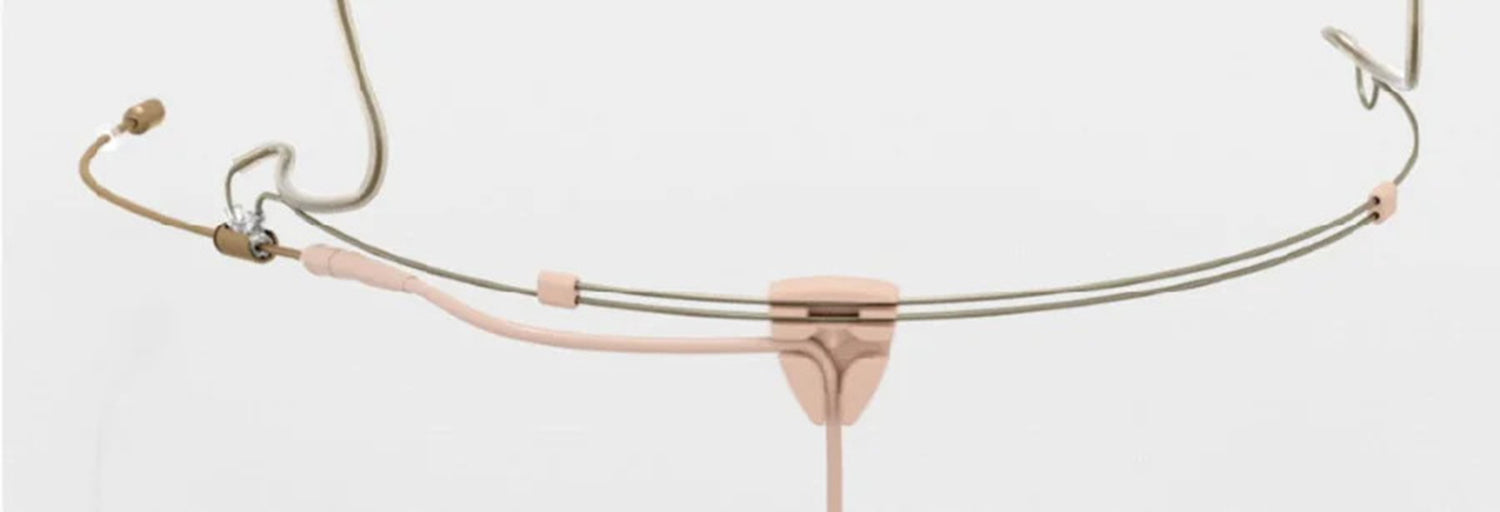

Shrunk to an impressive miniature size, the DPA 6066 ensures clarity, consistency, and durability at the heart of the mic. From loud to soft, you will experience increased clarity and openness from minimized distortion. The headset itself is designed for over-ear, maximum comfort—three-point ear grips with spring mechanisms help secure below the ear and side of the head for secure positioning while moving.

Extremely durable, cables are equipped with an inner core made of Kevlar to withstand rough pulls and avoid tangles, while a strain relief is also integrated in the mic housing for additional strength.

As mics are typically connected to a wireless belt pack, both cable and capsule are designed to ensure immunity to noisy wireless devices and with a comprehensive mix of adapters, you will be sure to find the perfect mic to suit your wireless transmitter.

Product Specification:

Connector: TA4F Mini-XLR

Color: Beige

Directional pattern: Omnidirectional

Principle of operation: Pressure

Principle of operation: Pre-polarized condenser

Frequency range: 20 Hz - 20 kHz

Frequency range, ±2 dB: 40 Hz - 20 kHz with 4 dB soft boost at 8 - 20 kHz

Sensitivity, nominal, ±3 dB at 1 kHz: 6 mV/Pa; -44 dB re. 1 V/Pa

Equivalent noise level, A-weighted: Typ. 26 dB(A) re. 20 μPa (max. 28 dB(A))

S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): Typ. 68 dB(A)

Total harmonic distortion (THD): < 1% up to 128 dB SPL peak

Dynamic range: Typ. 102 dB

Max. SPL, peak before clipping: 144 dB

Output impedance: From MicroDot: 30 - 40 Ω. From DAD6001-BC: 100 Ω

Cable drive capability: Up to 300 m (984 ft) with DAD6001-BC XLR adapter

Power supply (for full performance): Min. 5 V to max. 10 V through DPA adapter for wireless systems. With DAD6001-BC: 48 V phantom power ±4 V for full performance. Works from 12V

Weight: 11 g (0.40 oz)

Microphone head size (h x w x d): 3.4 / 8.9 mm

Capsule diameter: 3 mm

Cable length: 1.3 m (4.3 ft)
