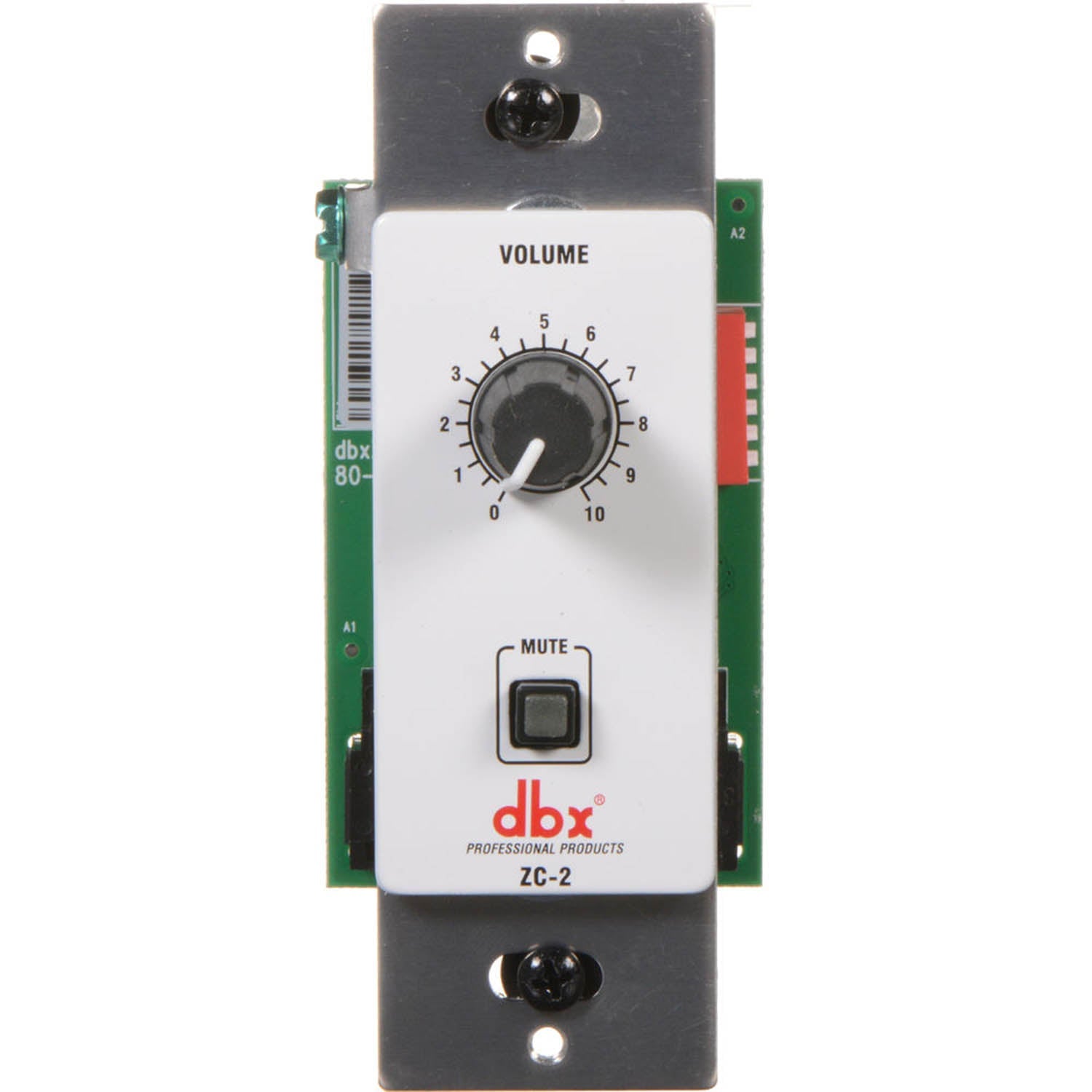

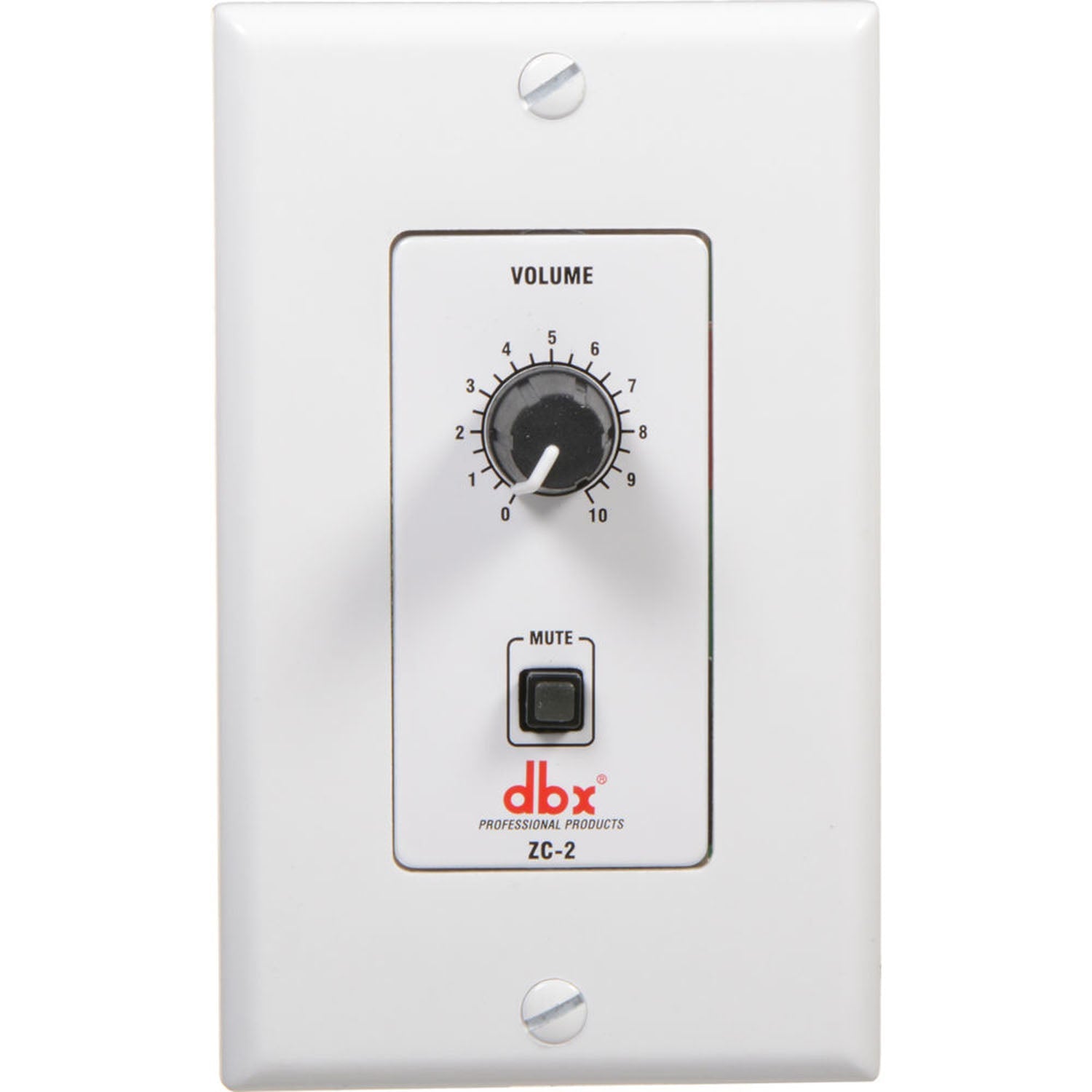

DBX ZC-2 Wall-Mounted Zone Controller

The DBX ZC-2 Wall-Mounted Zone Controller offer extended utility to the Drive Rack and ZonePRO families. The nine Zone Controllers use analog DC voltage to provide logic control ranging from zone source selection, volume and muting, to program or scene selection and fire safety muting. Wired with readily available and affordable CAT5 cable with universally accepted RJ-45 connectors at distances up to 1000 ft, the ZC Zone Controllers offer simple yet elegant solutions to the contractor.

The ZC-2 offers programmable volume and mute control for the Drive Rack 220i, 260 and ZonePRO products.

Product Specification:

Compressor Threshold Range: -40dBu to +20dBu

Compressor Ratio: >4:1 For input levels beyond 20dB above threshold

Max Compression: 30dB

De-esser Characteristic: Wideband Gain Reduction

Expander/Gate Threshold Range: OFF to +15dBu

Expander/Gate Ratio: Adjustable 1.5:1 to 10:1

Expander/Gate Max Depth: >50dB

Power Consumption: 15W

Operating Voltage: DO: 120VAC 60Hz, 100VAC 50/60Hz; EU: 230VAC 50/60Hz

Operating Temperature: 0°C to 45°C (32°F to 113°F)

Dimensions: 1.75" x 5.75" x 19" (4.5cm x 14.6cm x 48.5cm)

Unit Weight: 4.5 lbs/2.04 Kgs

Shipping Weight: 6.54 lbs/2.97 Kgs
