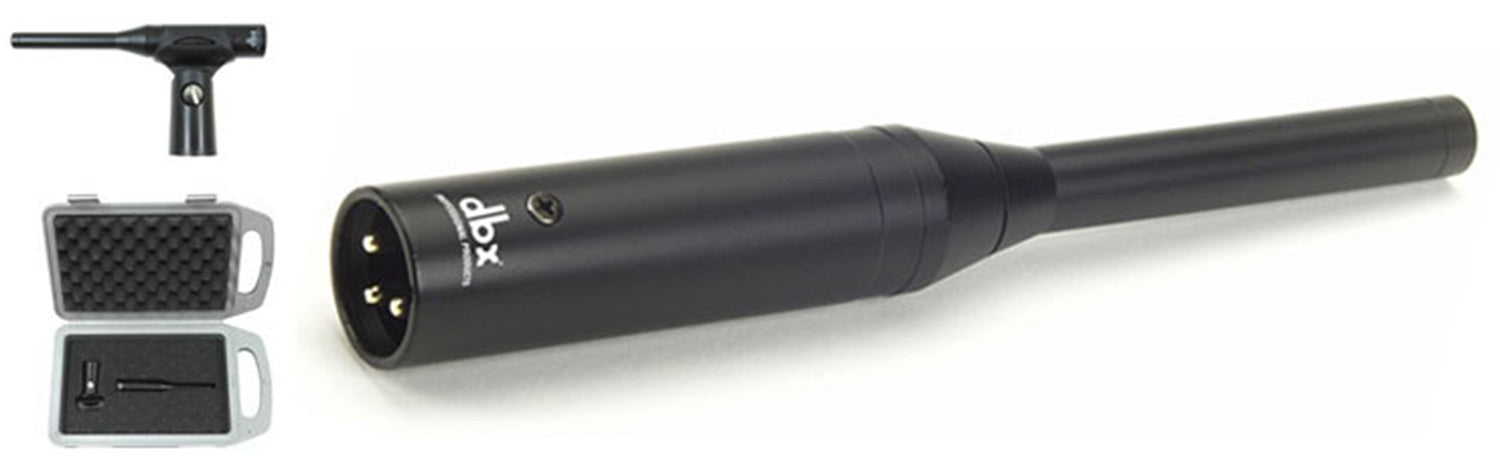

DBX RTA-M Reference Microphone

The DBX RTA-M Reference Microphone real time audio analyzing mic is the perfect accessory tool for the Drive Rack PA series (PA, PX, PA+, PA2) and 260. Used in conjunction with the System Setup Wizard and Auto EQ Wizard the RTA-M is ideal for optimizing the sound quality of even the most difficult of acoustic environments.

The RTA-M is an omni-directional, flat frequency measurement microphone specially designed for the Drive rack series to pick up all frequencies from 20 Hz to 20 kHz, ensuring accurate pinking/real-time analysis of your audio. It runs on phantom power (supplied by the Drive rack units) and comes with a clip and case.

Product Specification:

Element Type: Back-electret condenser

Polar Pattern: Omnidirectional

Frequency Response: 20 Hz to 20 kHz

Impedance: 250 Ohms ± 30% (@ 1 kHz)

Sensitivity: -63 dB +-3 dB (0 dB = 1 V/microbar @ 1 kHz indicated by open circuit)

Operating Voltage: 9 to 52 VDC phantom power

Dimensions: 0.4 x 5.7" / 1.0 x 14.5 cm

Package Weight: 1.535 lb

Box Dimensions: 12.9 x 10.75 x 4
