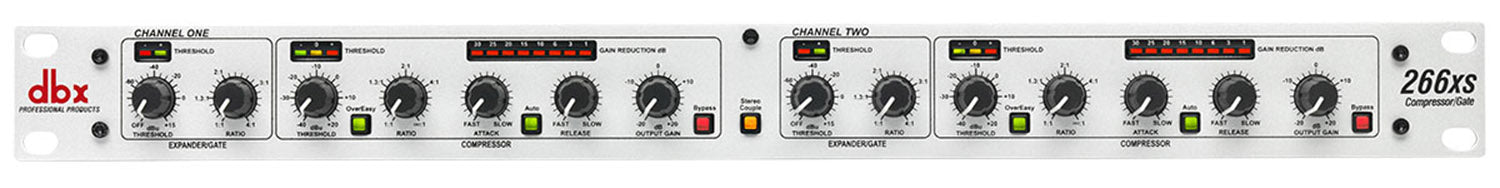

DBX 266XS Dual Compressor/Gate

The DBX 266XS is a dual channel compressor gate that when added to a live sound rig or studio, will deliver more polished, professional sound. The unit can function either as a stereo processor or in dual mono mode and features all the usual controls required for this kind of processor.

The unit provides the ability to smooth out uneven levels, add sustain to guitars and fatten up drums. It also makes it easy to bring vocals to the front of a mix. For simplified operation the Over easy compression technology returns smooth and musical performance, while the exclusive Autodynamics attack and release controls puts great sound within easy reach.

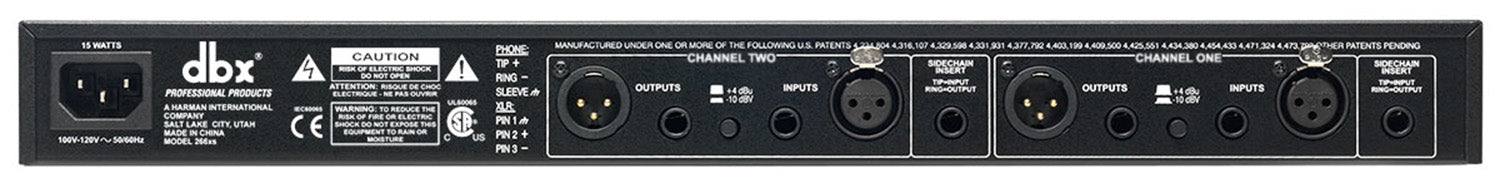

The processor has true RMS power summing and features quality input and output connectors. Comprehensive visual feedback is provided by gain reduction metering and backlit switches.

Product Specification:

Input Connectors: 1/4" TRS and female XLR (pin 2 hot)

Input Type: Electronically balanced/unbalanced, RF filtered

Input Impedance: 40kΩ balanced/unbalanced

Max Input: >+22dBu Balanced or Unbalanced

Output Connectors: 1/4" TRS, male XLR (pin 2 hot)

Output Type: Impedance-balanced/unbalanced, RF filtered

Sidechain: 1/4" TRS Phone, Normal led: Ring = Output (send); tip = Input (return)

Sidechain Impedance: Tip = >10kΩ (Input), Ring = 2kΩ (Output)

Sidechain Max Input Level: Tip = >+22dBu (Input)

Sidechain Max Output Level: Ring = >+20dBu (Output)

Compressor Threshold Range: -40dBu to +20dBu

Compressor Ratio: 1:1 to Infinity:1

Compressor Attack Time: Scalable Program-Dependent Autodynamics

Compressor Release Time: Scalable Program-Dependent Autodynamics

Expander/Gate Threshold Range: -60dBu to +15dBu

Expander/Gate Ratio: 1:1 to 4:1

Expander/Gate Attack Time: <100µs

Expander/Gate Release Time: Program-dependent

Compressor Threshold Range: -40dBu to +20dBu

Compressor Ratio: >4:1 For input levels beyond 20dB above threshold

Max Compression: 30dB

De-esser Characteristic: Wideband Gain Reduction

Expander/Gate Threshold Range: OFF to +15dBu

Expander/Gate Ratio: Adjustable 1.5:1 to 10:1

Expander/Gate Max Depth: >50dB

Power Consumption: 15W

Operating Voltage: DO: 120VAC 60Hz, 100VAC 50/60Hz; EU: 230VAC 50/60Hz

Operating Temperature: 0°C to 45°C (32°F to 113°F)

Dimensions: 1.75" x 5.75" x 19" (4.5cm x 14.6cm x 48.5cm)

Unit Weight: 4.5 lbs/2.04 Kgs

Shipping Weight: 6.54 lbs/2.97 Kgs
