DBX 1261M 12x6 Digital Zone Processor

The DBX 1261M 12x6 Digital Zone Processor offers fixed I/O, pre-configured architecture, configurable insert processing and optional duplication of audio channels to another Zone PRO device via a link bus.

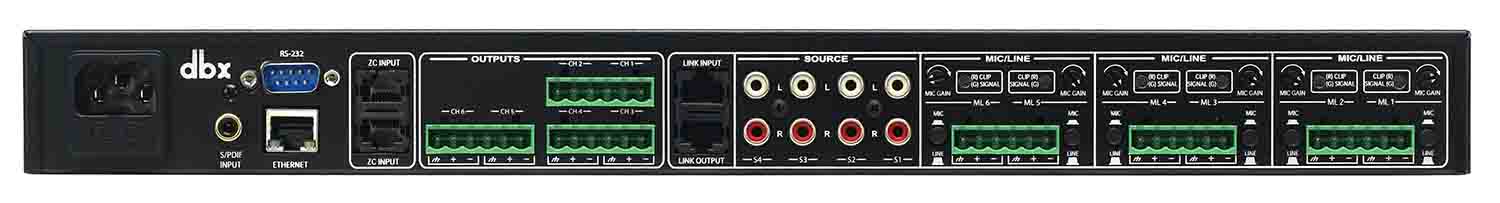

The 1261m features a total of 12 inputs and six outputs. Inputs include six balanced mic/line switchable terminal block inputs, four mono-summed pairs of unbalanced RCA inputs and one S/PDIF input for up to two digital channels. Hardware-controlled

microphone gain allows adjustment of microphone gain per channel.

The 1261m device has a pre-configured architecture with input processing, a central matrix and output processing. Two input insert positions and one output insert position allow channel-specific insert processing to be configured. Auto Warmth, a psychoacoustic function that maintains full frequency bandwidth even when the signal level has dropped, is permanently available on each output zone.

A link bus allows duplication of the first six audio channels to another Zone PRO device in applications where additional output zones are required.

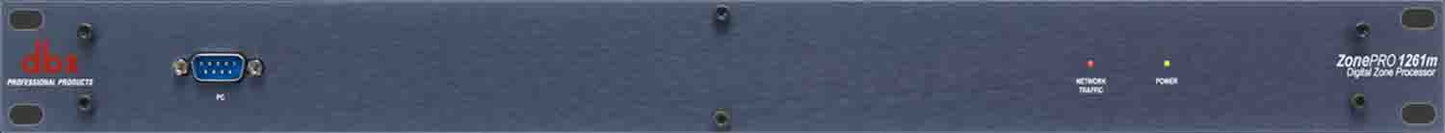

The front panel of the 1261m features a power status LED, a network traffic LED, and an RS-232 control port.

Additional system control is offered in the form of optional Zone Controllers. This collection of hardware wall-controllers represents a series of simple, elegant user interfaces for functions such as volume, source and preset control.

All Zone PRO devices can be controlled by third party control systems via RS-232 or Ethernet as applicable (see table for further information).

Zone PRO Designer the configuration, control and monitoring software for the Zone PRO family of devices offers control of the Zone PRO 1261m via Ethernet or RS-232. The Configuration Wizard within Zone PRO Designer guides users through the step-by step configuration process of the 1261m.

Product Specification:

Phantom Power: +15VDC

Maximum Input Level: +20dBu mic/line, +12dBu RCA

CMRR: > 40dB, typically >55db @ 1kHz

Mic Input Noise: (E.I.N.) < -118dBu, 22Hz-22kHz, 150Ω source impedance

Outputs: Balanced, RF filtered Euro block x6

Operating Voltage: 100-240 VAC, 50/60Hz

Power Consumption: 27 watts

BTU: <92.13

Dimensions: 1U rackmount: 7.75" x 19" x 1.75" (19.69 x 48.26 x 4.45 cm)

Weight: 6.2 lbs (2.81 kg)

Package Weight: 8.105 lb

Box Dimensions (LxWxH): 22.2 x 11.4 x 3.7"
