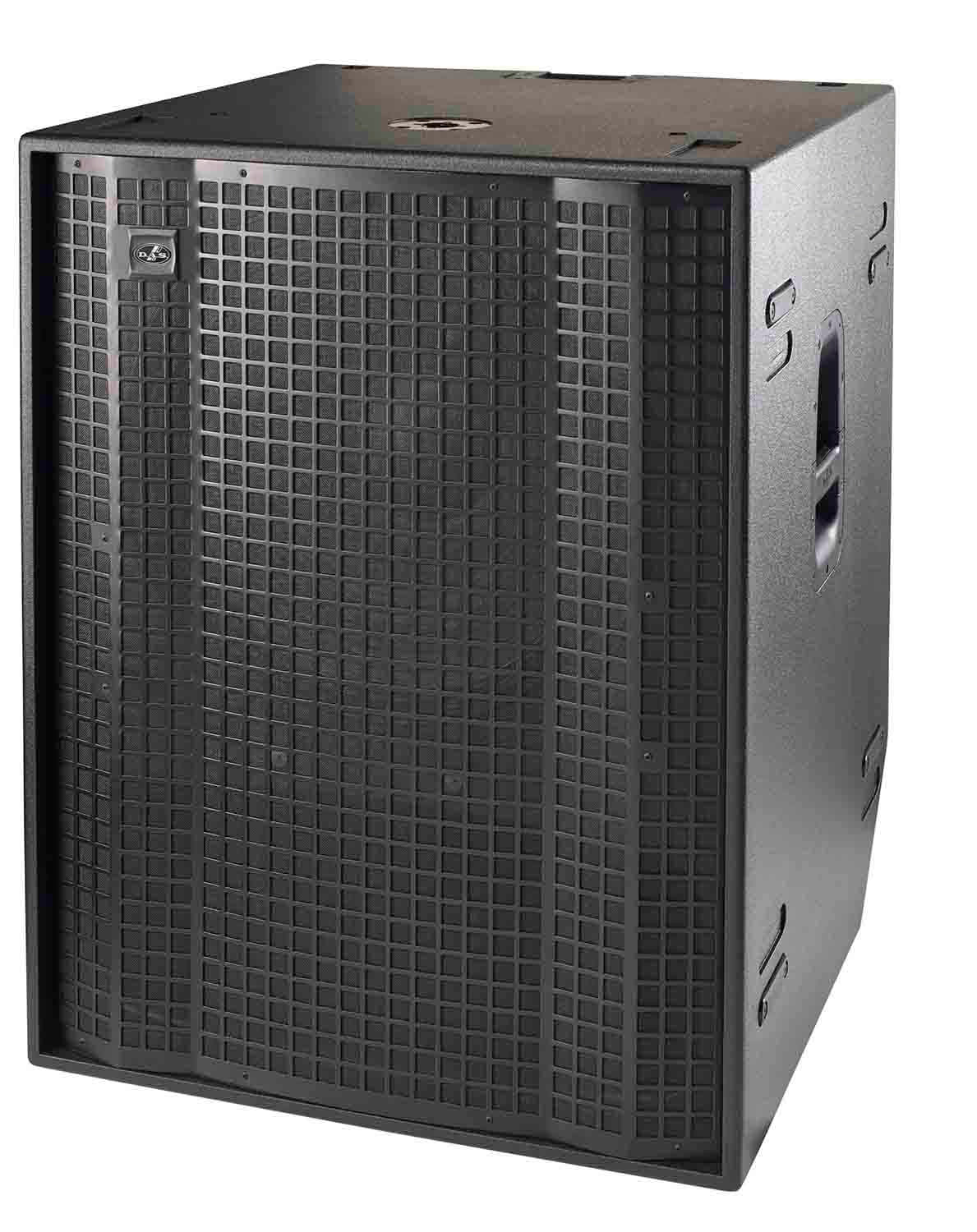

DAS Audio EVENT-121A 3200 Watt, 21 inch Powered Subwoofer

The EVENT-121A is a direct radiating rear-loaded powered subwoofer system that incorporates a single 21-inch neodymium loudspeaker providing earth-moving low-frequency reproduction for the Event Series line arrays. The combination of direct radiation and rear-loading provides a high output, tight and accurate sub-bass response.

The EVENT-121A employs the new DAS 21LFN loudspeaker which offers impressive features such as a 4″ sandwich split winding voice coil, a powerful FEA optimized neodymium magnet assembly and an FEA optimized suspension system with double silicon spider. The result is a loudspeaker with exceptional sensitivity, high power handling capacity and a quality suspension design capable of withstanding the stress and mechanical fatigue of today´s high-power pro audio systems. An aluminum demodulating ring benefits lower distortion and effective forced ventilation of the voice coil gap provides for a high thermal rating and reduced power compression.

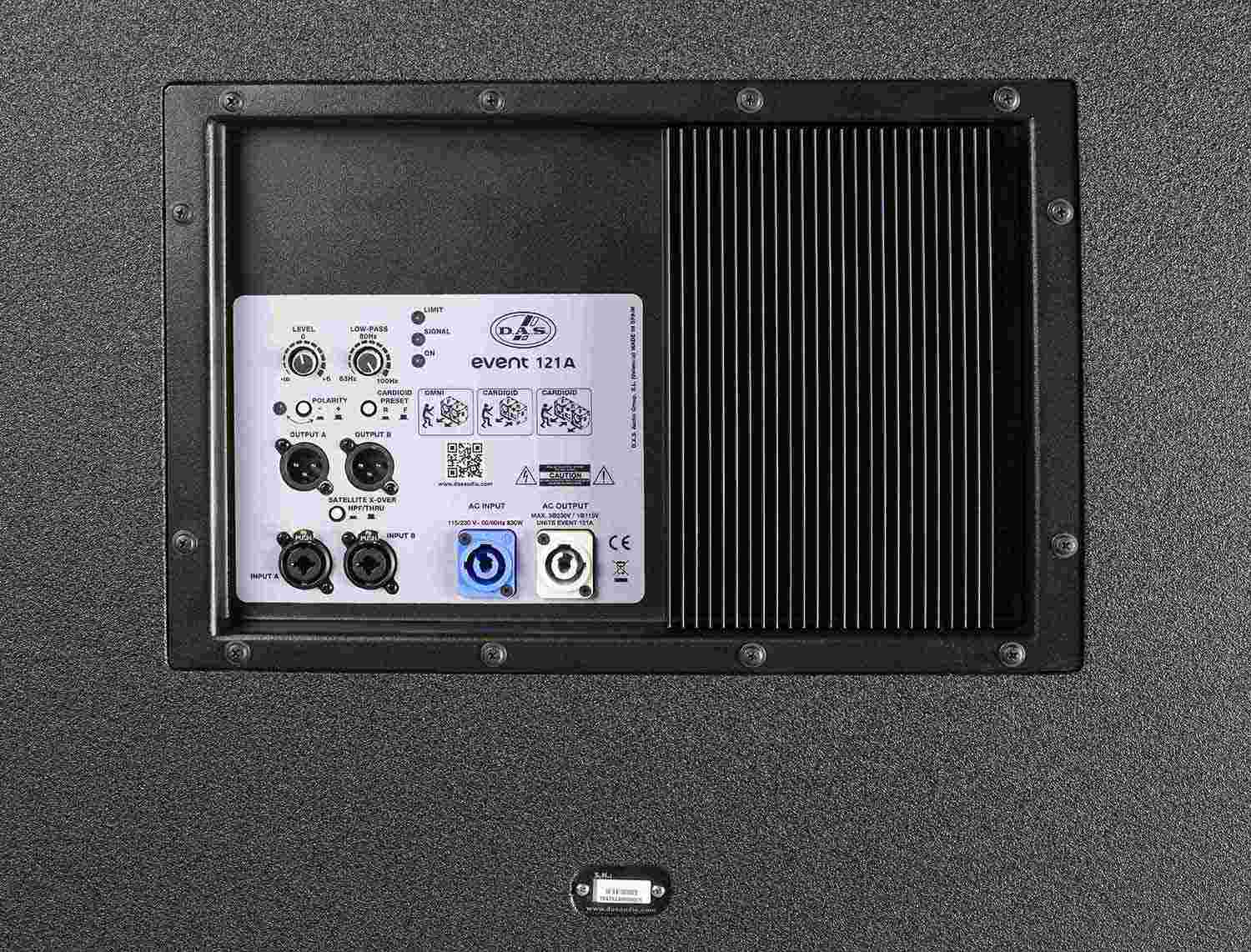

The EVENT-121A electronics package includes a 3200 W peak Class D amplifier and 24-bit high-end DSP for top quality audio reproduction. On the rear panel, controls can be found for gain, polarity and a continually variable low-pass filter which ranges from 63 Hz to 100 Hz. A unique “cardioid preset” button simplifies the use of subs in cardioid configurations, making the setup of two to three units a snap without the need for an external DSP.

The EVENT-121A is phase response coherent with the EVENT-208A, EVENT-210A and EVENT-212A active tops offering precise alignment. Two balanced inputs with stereo filtered outputs which can be switched to pass-through connections are provided.

Product Specifications:

Frequency Range (-10 dB): 30 Hz – 125 Hz

Maximum Peak SPL at 1 m: 141 dB

Nominal Amplifier Power (continuous): 1600 W

Nominal Amplifier Power (peak): 3200 W

Input Type: Balanced

Input Impedance: 20 kohms

AC Input Connector: powerCon NAC3FCA

AC Output Connector: powerCON NAC3FCB

Operating Range: 90-250 VAC

Current Draw 115 V: 7.2 A

Current Draw 230 V: 3.6 A

Dimensions (H x W x D): (965 x 740 x 755) mm, (38,0 x 29,1 x 29,7) in

Net Weight: 78,5 kg (173,1 lb)
