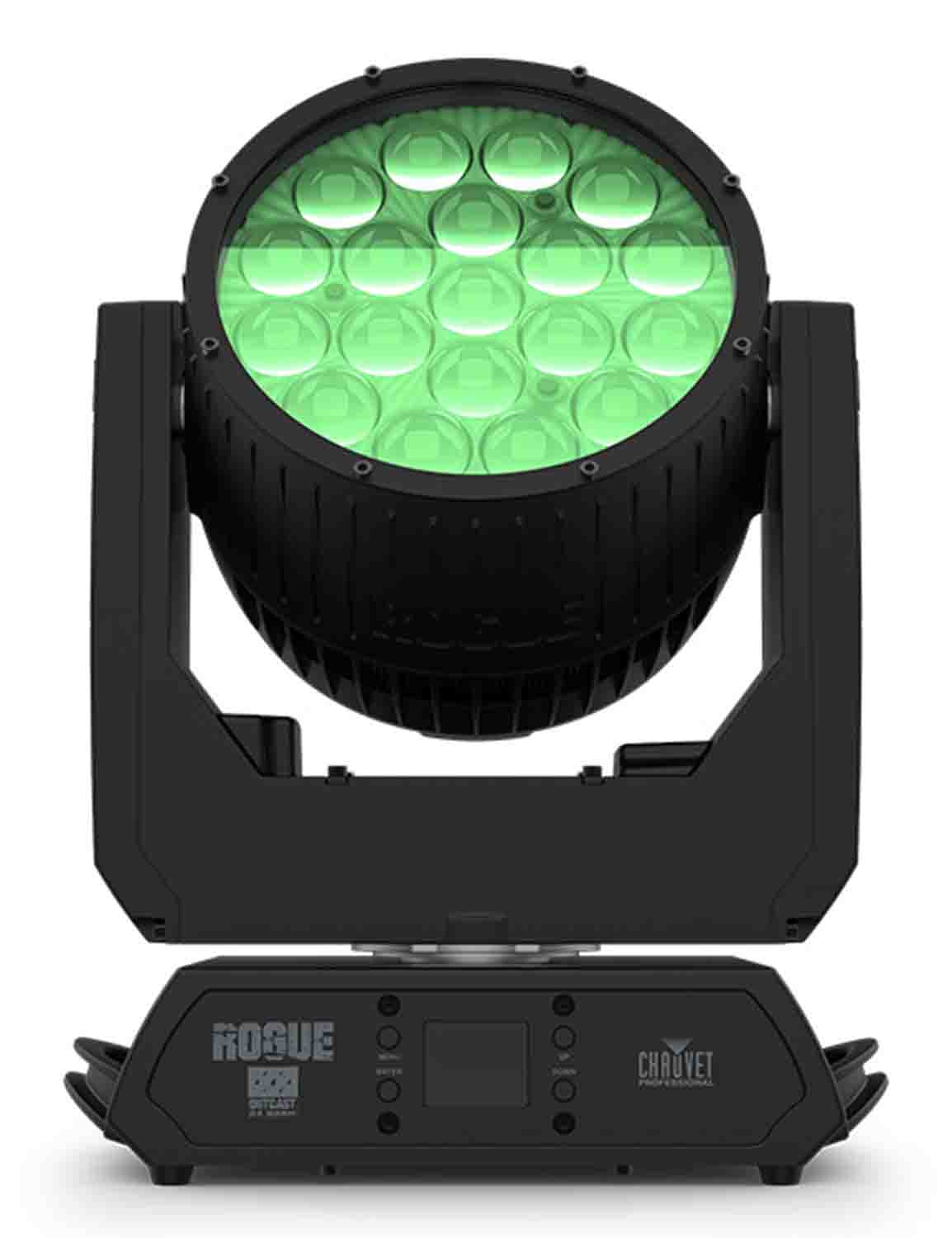

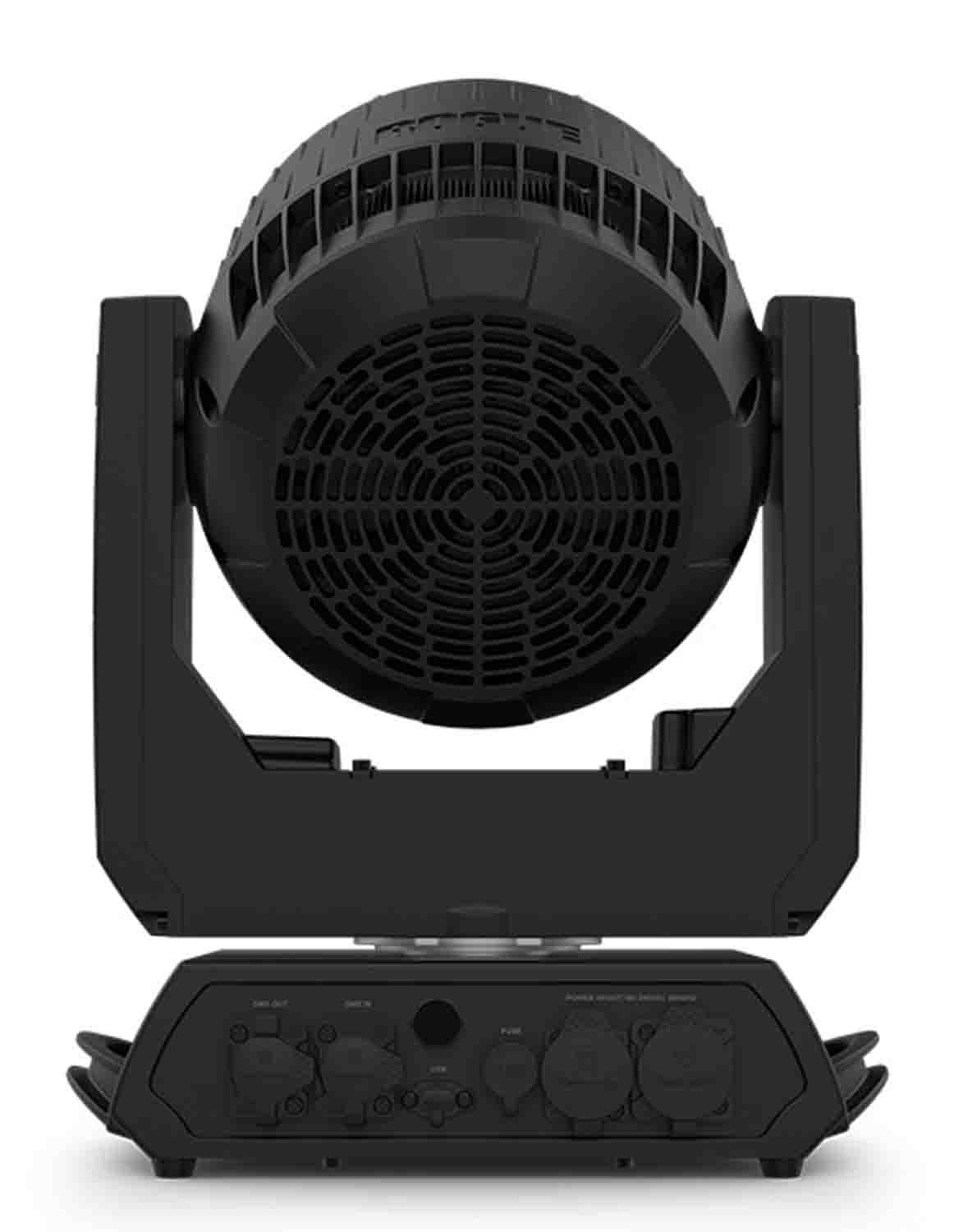

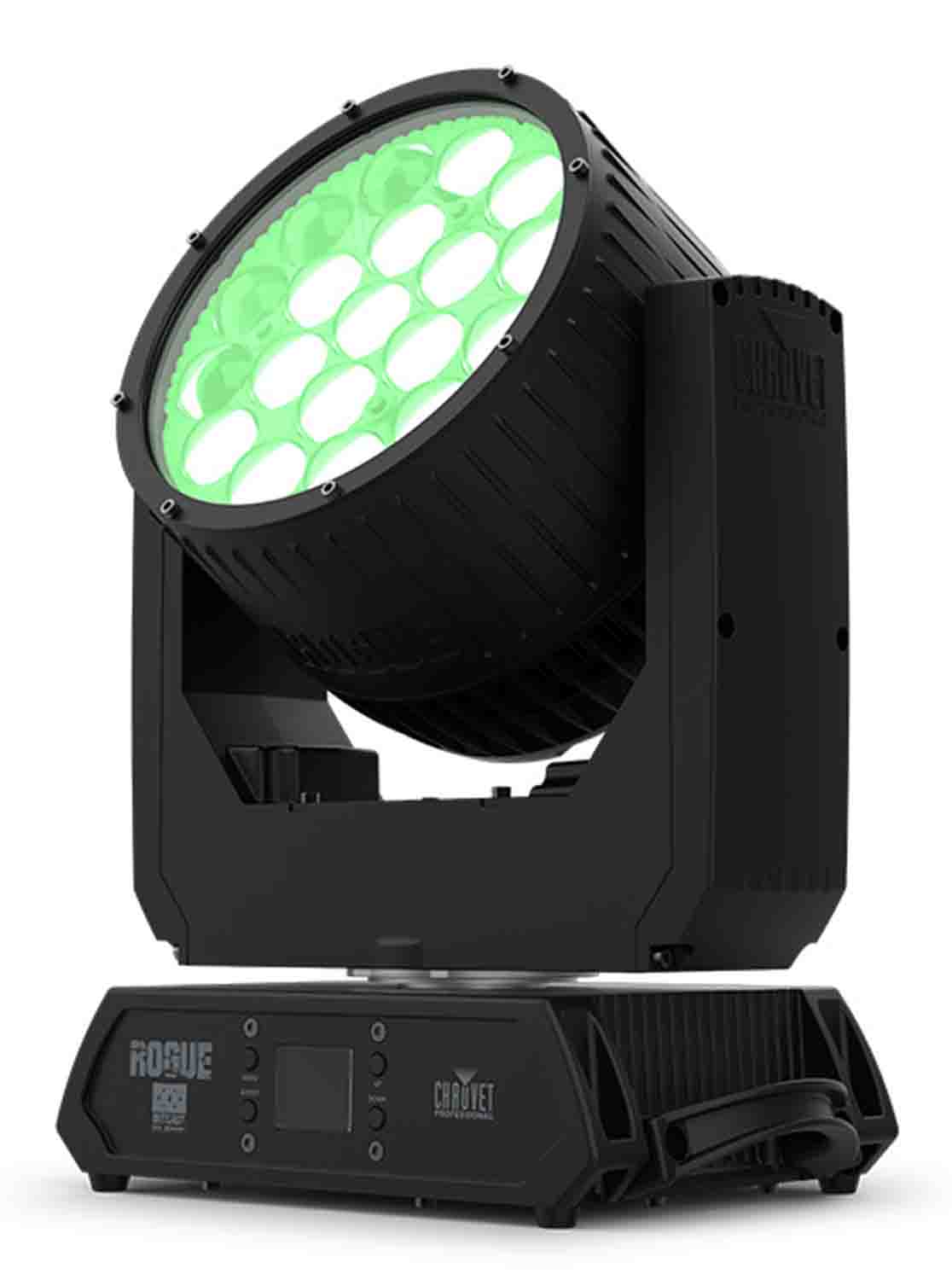

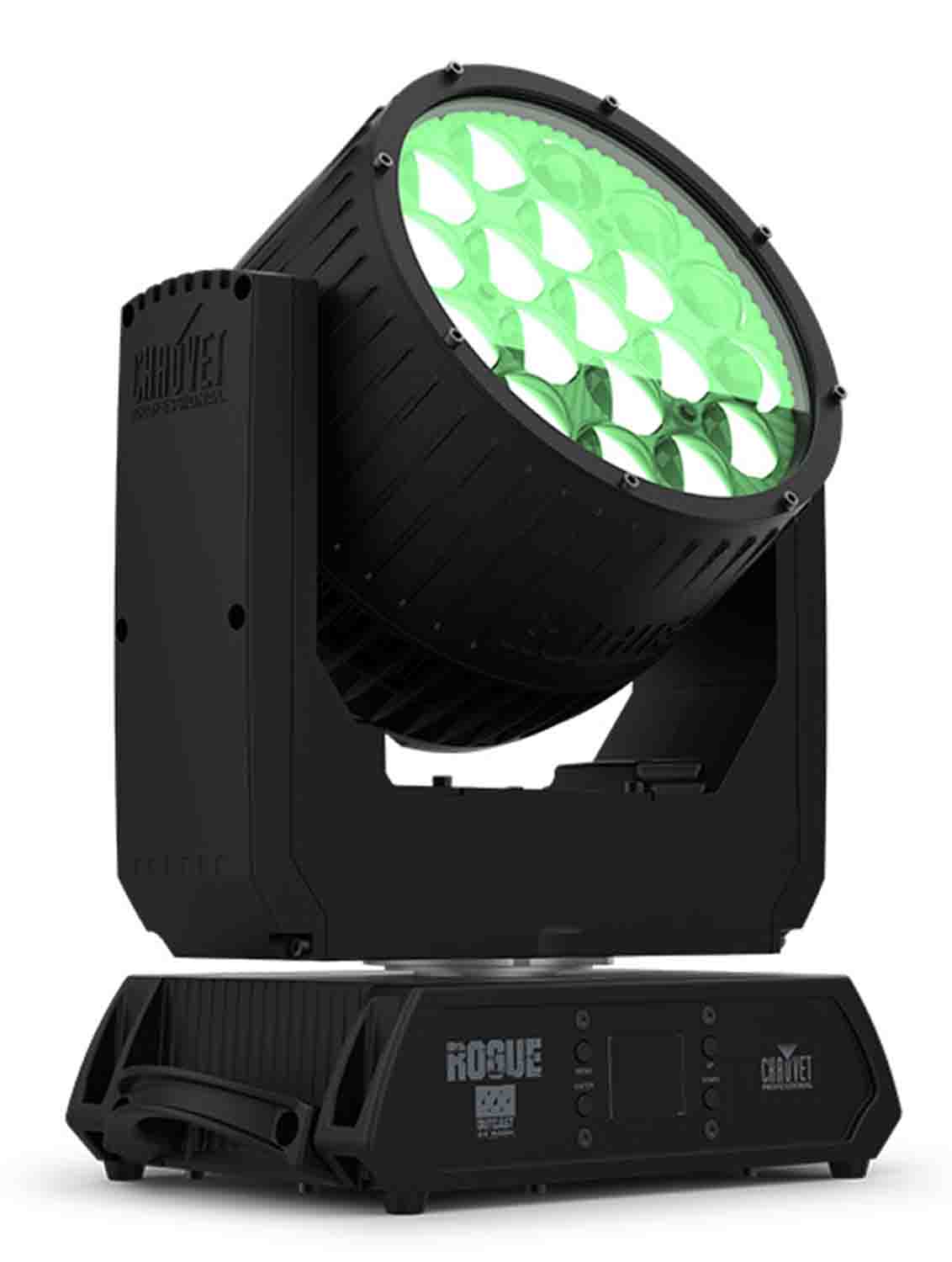

Chauvet Pro Rogue Outcast 2X Wash IP65 Rated RGBW LED Yoke Fixture

The Chauvet Pro Rogue Outcast 2X Wash IP65 Rated RGBW LED Yoke Fixture is a lightweight IP65 wash that goes wide and hangs anywhere, with a wide zoom range of 8° to 66°, wide 2800 to 10000 K color temp range, wide selection of simple to complex DMX personalities, and a durable alloy housing that suits this versatile workhorse to the widest range of both indoor and outdoor applications, including on-camera use with its user selectable calibrated white. 19 bright 25W RGBW quad-LEDs occupy 5 pixel-mappable zones and produce excellent color blending and fades with 16-bit master and individual dimming.

Product Specifications:

Optical

Light Source: 19 LEDs (quad-color RGBW) 25 W, (1.5 A), 50,000 hours life expectancy

Color Temperature (range): 2800 to 10000 K

Beam Angle: 8° to 36.1°

Field Angle: 11.8° to 53°

Cutoff Range: 17.5° to 66.1°

Zoom Range: 8° to 66.1°

Lumens – Source: n/a

Lumens – Output: 6,258

Illuminance (11.8°): 8,713 lux @ 5 m

Illuminance (53°): 694 lux @ 5 m

Selectable PWM: 600Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz

Dynamic Effects

Pan and Tilt: 540°/270°

Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 270° tilt

Dimmer: Electronic

Shutter/Strobe: Electronic

Zoom: Motorized

Strobe Rate: 0 to 20 Hz

Standalone Color Mixing: Yes

Color Temperature Presets: Yes

Dim Curves: 6

Built-in Automated Programs: Yes

Customizable Programs: No

Recall Custom Programs: No

Construction / Physical

Dimensions: 11.92x8.58x14.1" (303x218x361mm)

Weight: 23.4 lb (10.6 kg)

Exterior Color: Black

Housing Material: Aluminum/magnesium alloy, High-impact flame-retardant polymer

Connections

Power Connection: Bare ended to Seetronic IP65 Powerkon

Power Input: Seetronic IP65 Powerkon

Power Output: Seetronic IP65 Powerkon

Data Connectors: 5-pin XLR

Cable Length (power): 5 ft (1.5 m)

Control

Control Protocol: DMX, RDM

Dmx Channels: 15, 17, 22, 33, 54, or 56

Modes/Personalities: 8 personalities (15CH, 17CH, 22CH, 33CH, 33CH MS, 54CH, 54CH MS or 56CH)

Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)

Power Linking: 5 units @ 120 V; 9 units @ 208 V; 10 units @ 230 V

Power and Current: 291 W, 2.47 A @ 120 V, 60 Hz

Power and Current: 284 W, 1.41 A @ 208 V, 60 Hz

Power and Current: 282 W, 1.28 A @ 230 V, 50 Hz

Certifications / Qualifications

CE, MET, FCC, UKCA

Ip Rating: IP65 (temporary wet location)

What's Included

Rogue Outcast R2X Wash IP

Seetronic PowerCON power cord

Optional Accessories

Professional Clamps: CTC-50HC, CTC-50HCN

Safety Cable: SC-07

Seetronic IP65 Powerkon cables

DMX Cables

Flight Case: CP6CASER2W
