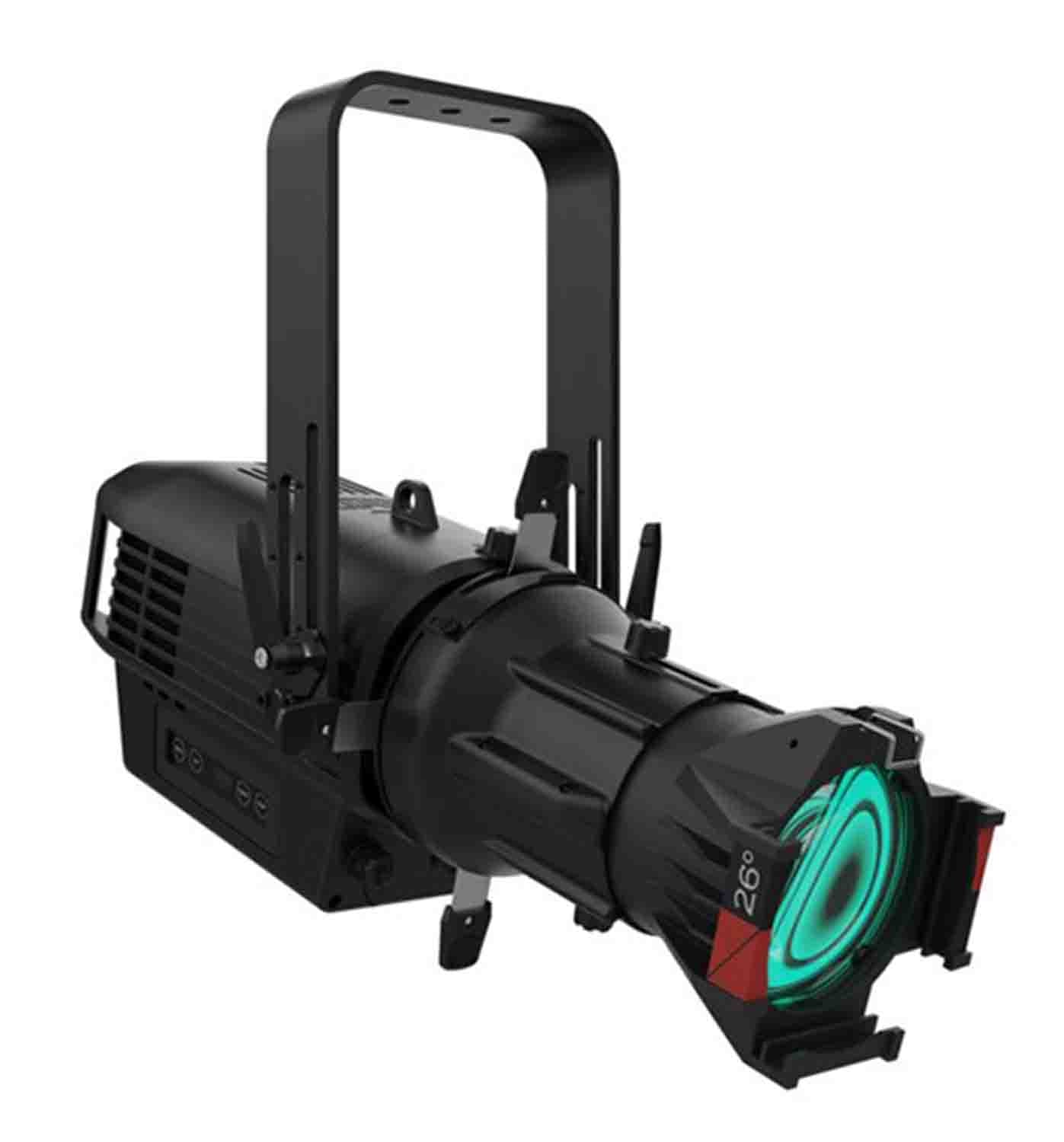

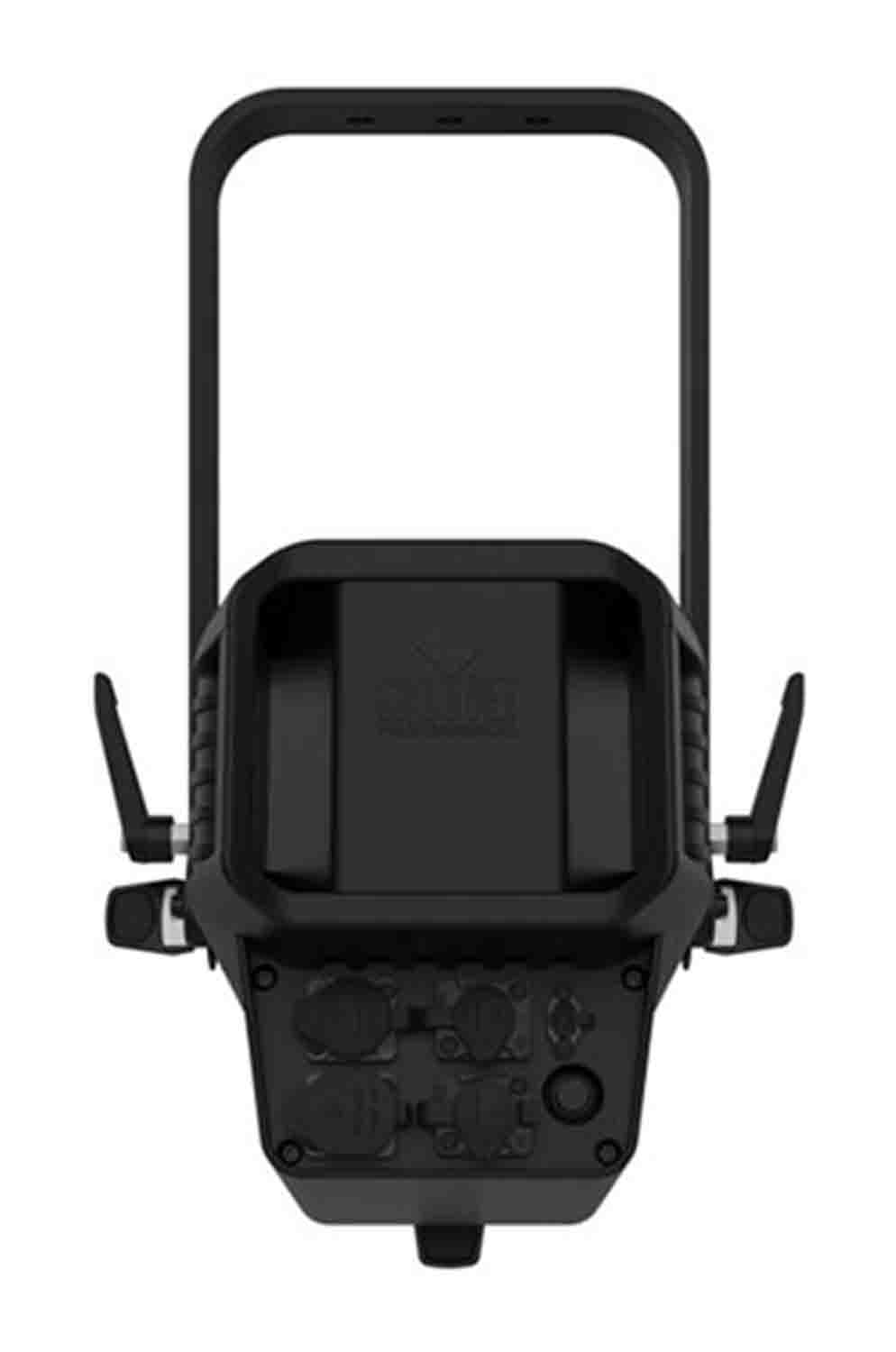

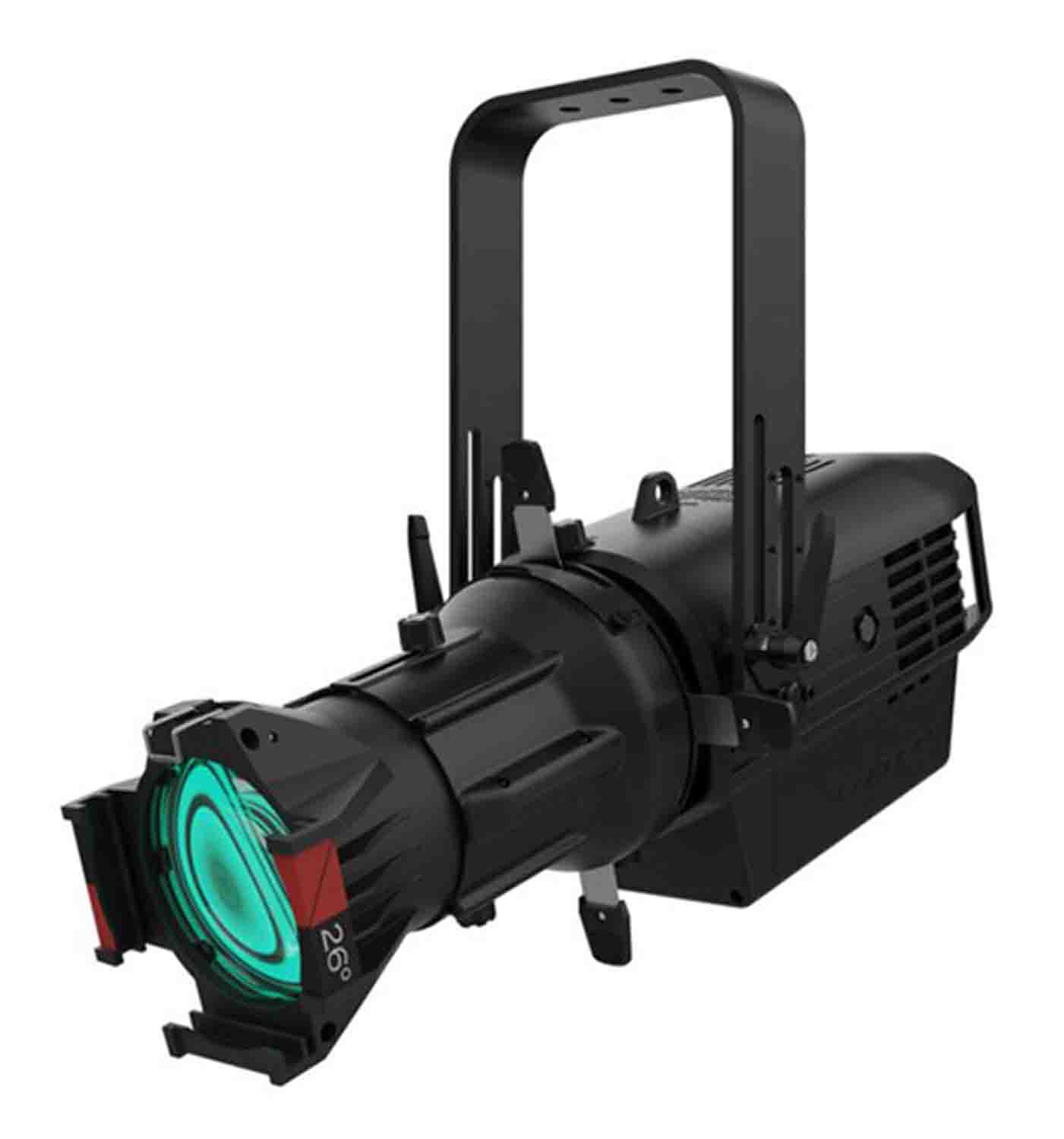

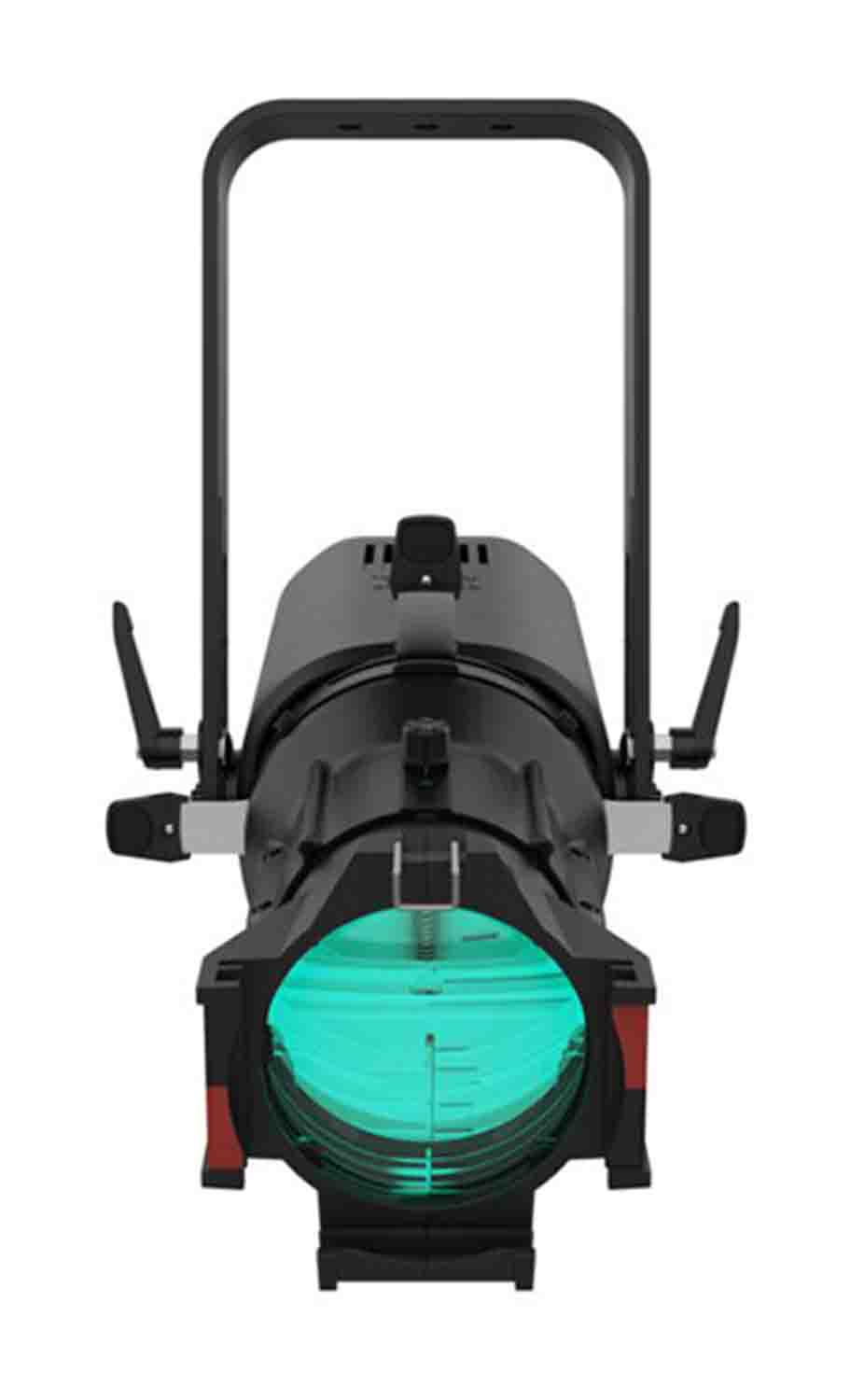

Chauvet Pro Ovation Reve E-3 IP LED ERS-Style Lighting Fixture

The Chauvet Pro Ovation Reve E-3 IP LED ERS-Style Lighting Fixture is an outdoor-ready, LED ERS-style lighting fixture. Virtually silent and IP65 rated. It’s perfect for studio, theatre, and film applications - both indoors and out. It has the brightest light engine that can produce full-spectrum colors and tunable whites. Ovation Rêve E-3 IP features adjustable PWM, +/- green adjustment and emulated red-shift, and ultra-smooth 16-bit dimming curves and speeds to complement any lighting scheme, anywhere.

Product Specifications:

Optical

Light Source: 91 LEDs (12 red, 19 green, 3 blue, 9 royal blue, 24 amber, 24 mint) 3.5 to 10 W, (2.4 A), 50,000 hours life expectancy

Color Temperature (range): 2800 to 8000 K

Color Temperature (at full): 6,428 K

CRI: 93.5

Dynamic Effects

Dimmer: Electronic

Shutter/Strobe: Electronic

Focus: Manual

Strobe Rate: 0 to 28.6 Hz

Standalone Color Mixing: Yes

Connections

Power Connection: Edison (Local) plug to Seetronic Powerkon IP65

Power Input: Seetronic Powerkon IP65

Power Output: Seetronic Powerkon IP65

Data Connectors: 5-pin XLR

Control

Control Protocol: DMX, RDM

DMX Channels: 1, 5, 6, 8, 12, 14ch1, 14ch2, 18 or HSV

Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)

Power Linking: 4 units @ 120 V; 7 units @ 208 V; 7 units @ 230 V

Power and Current: 354 W, 2.999 A @ 120 V, 60 Hz

Power and Current: 345 W, 1.707 A @ 208 V, 60 Hz

Certifications / Qualifications

CE, MET, FCC, UKCA

IP Rating: IP65, temporary outdoor/wet use, with pressure equalizing M12 GORE valve

Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

What's Included

Ovation Rêve E-3 IP

Seetronic Powerkon power cable

Ovation Metal Gobo Holder

Soft Focus Filter

Optional Accessories

Professional Clamps: CTC-50HC, CTC-50HCN

Safety Cable: SC-07

TRUE1 Style Power Extension Cables

5-pin IP65 DMX Cables

Ovation Glass Gobo Holder

Ovation Metal Gobo Holder

Ovation Iris

Ovation GR-1 IP Gobo Rotator

USB Jump Drive
