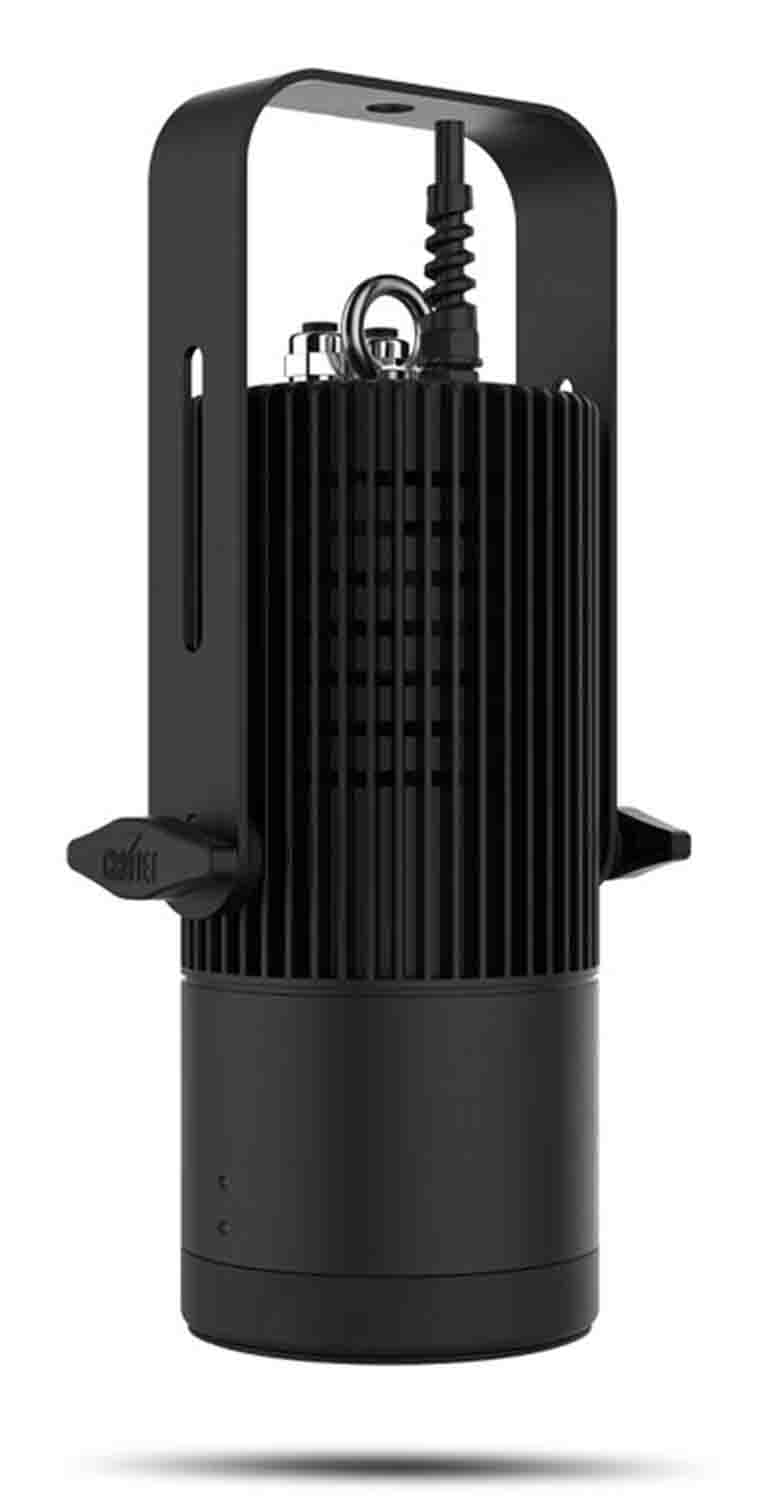

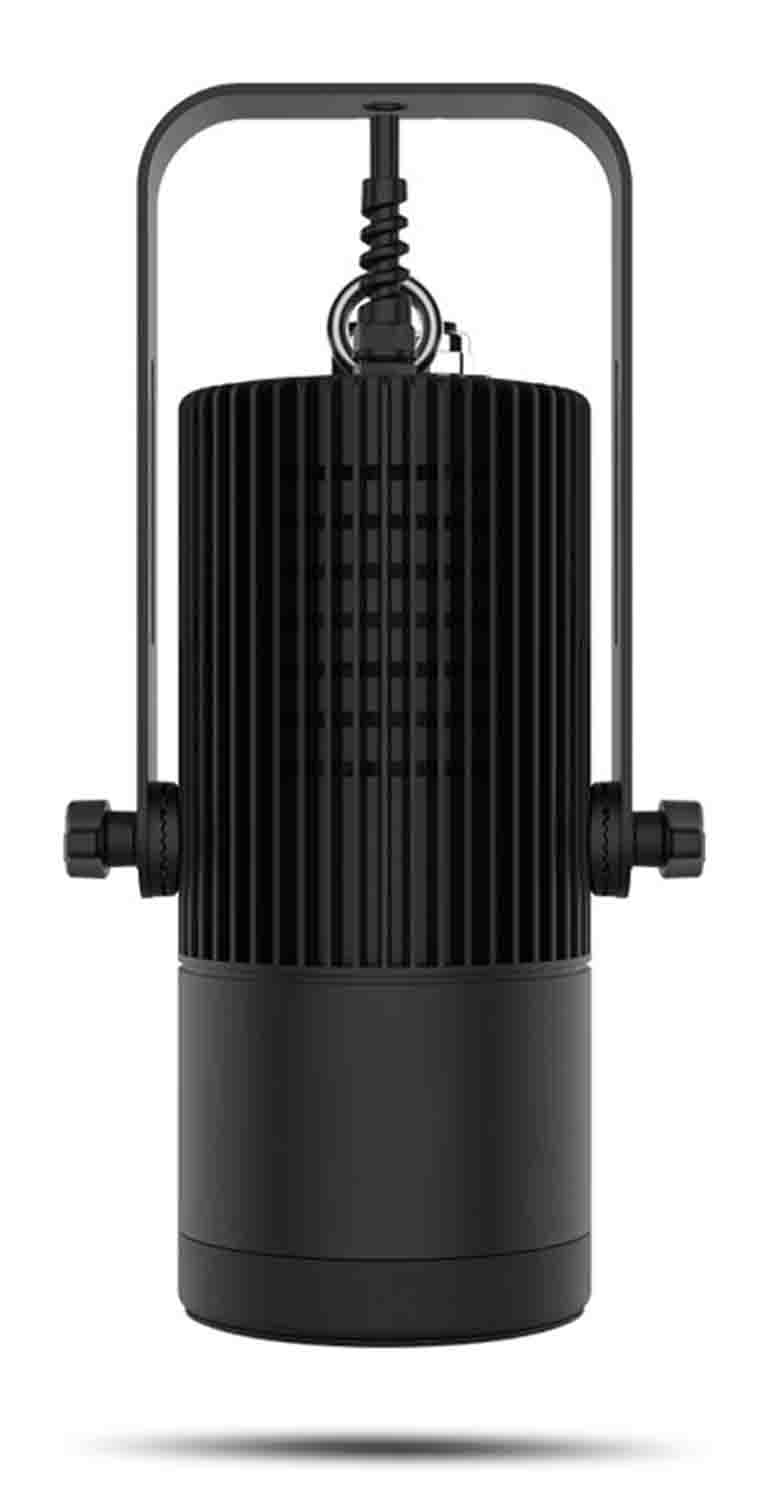

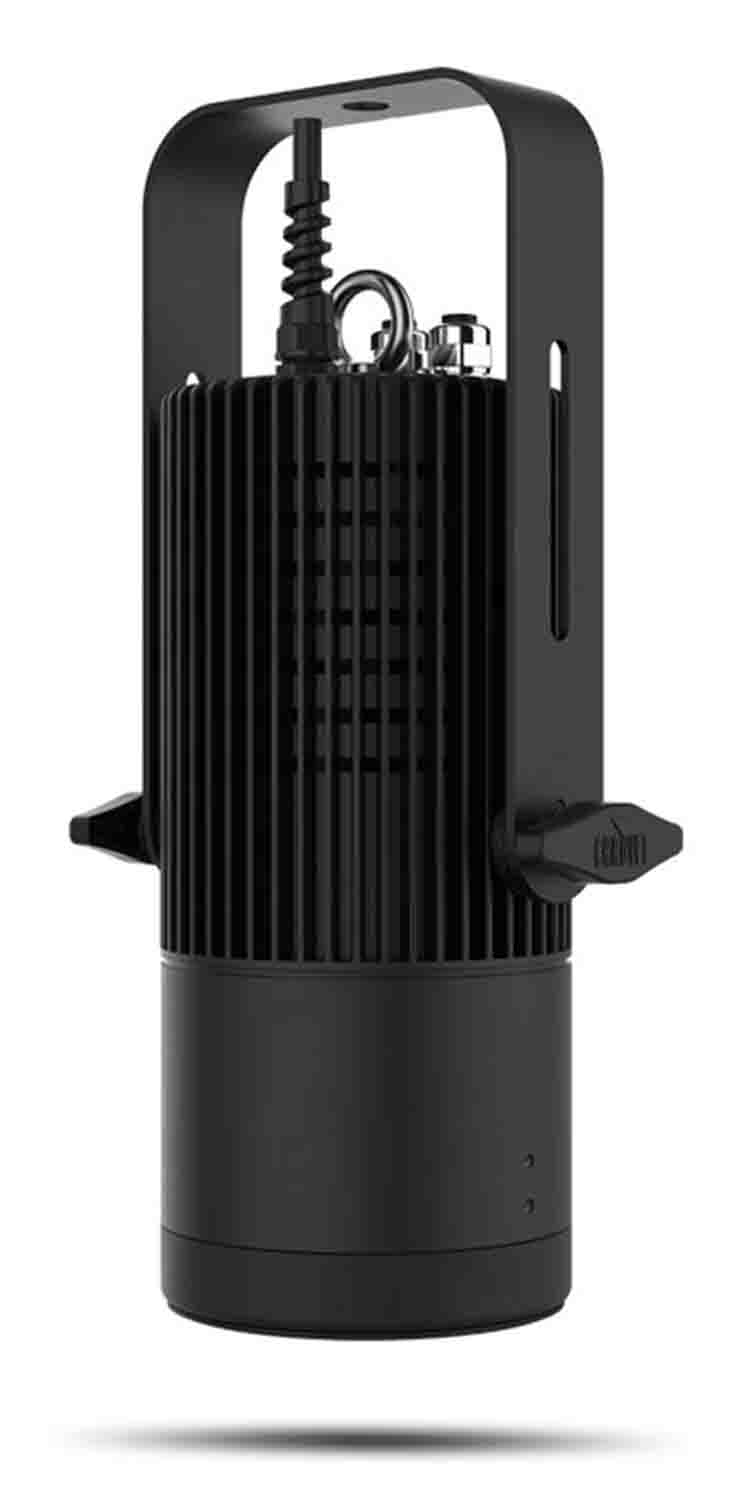

Chauvet Pro Ovation H-55WW LED Complete House light Set - Black

The Chauvet Pro Ovation H-55WW LED Complete House light Set - Black is a small and silent, convection cooled LED house light with a punchy warm white output and a high CRI, ideal for theatres, worship venues and recital halls or any other application with a smaller trim height. The unit also features 16-bit dimming, RDM and W-DMX control as well as adjustable PWM to prevent flickering on televised performances. Interchangeable lenses for height adjustment are another indispensable feature in theatrical and house of worship applications. For even more versatility, the yoke can be completely removed, and the fixture suspended, pendant style, from a loop on the back plate. White housing not available in European Markets.

Product Specifications:

Optical

Light Source: 1 LEDs (WW) 129.5 W, (1.45 A), 3157 K, 50,000 hours life expectancy

Color Temperature (at full): 3157 K

CRI: 93

Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz

Dynamic Effects

Dimmer: Electronic

Shutter/Strobe: Electronic

Strobe Rate: 0 to 25 Hz

Dim Modes: 4

Built-in Automated Programs: Yes

Construction / Physical

Dimensions: 13.14 x 6.92 x 4.52 in (334 x 176 x 115 mm)

Weight: 7.4 lb (3.4 kg)

Exterior Color: Black

Connections

Power Connection: Bare-wired

Power Input: Hard-wired

Data Connectors: 5-pin XLR, Phoenix connector

Cable Length (power): 15 ft (4.5 m

Control

Control Protocol: DMX, W-DMX, RDM

DMX Channels: 1, 2 or 5

Modes/Personalities: 3 personalities (1CH, 2CH, 5CH)

Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (Auto-Ranging)

Power and Current: 60 W, 0.497 A @ 120 V, 60 Hz

Power and Current: 61 W, 0.297 A @ 208 V, 60 Hz

Power and Current: 63 W, 0.269 A @ 230 V, 50 Hz

Certifications / Qualifications

CE, MET, FCC

IP Rating: IP20, dry location

Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

What's Included

Ovation H-55WW

65°, 40° and 25° Lens

80° Filter

Egg Crate

Recess and Sconce Mounting Kits

Optional Accessories

W-DMX Transmitter

Professional Clamps: CTC-50HC, CTC-50HCN

5-pin DMX Cables

RDM2go
