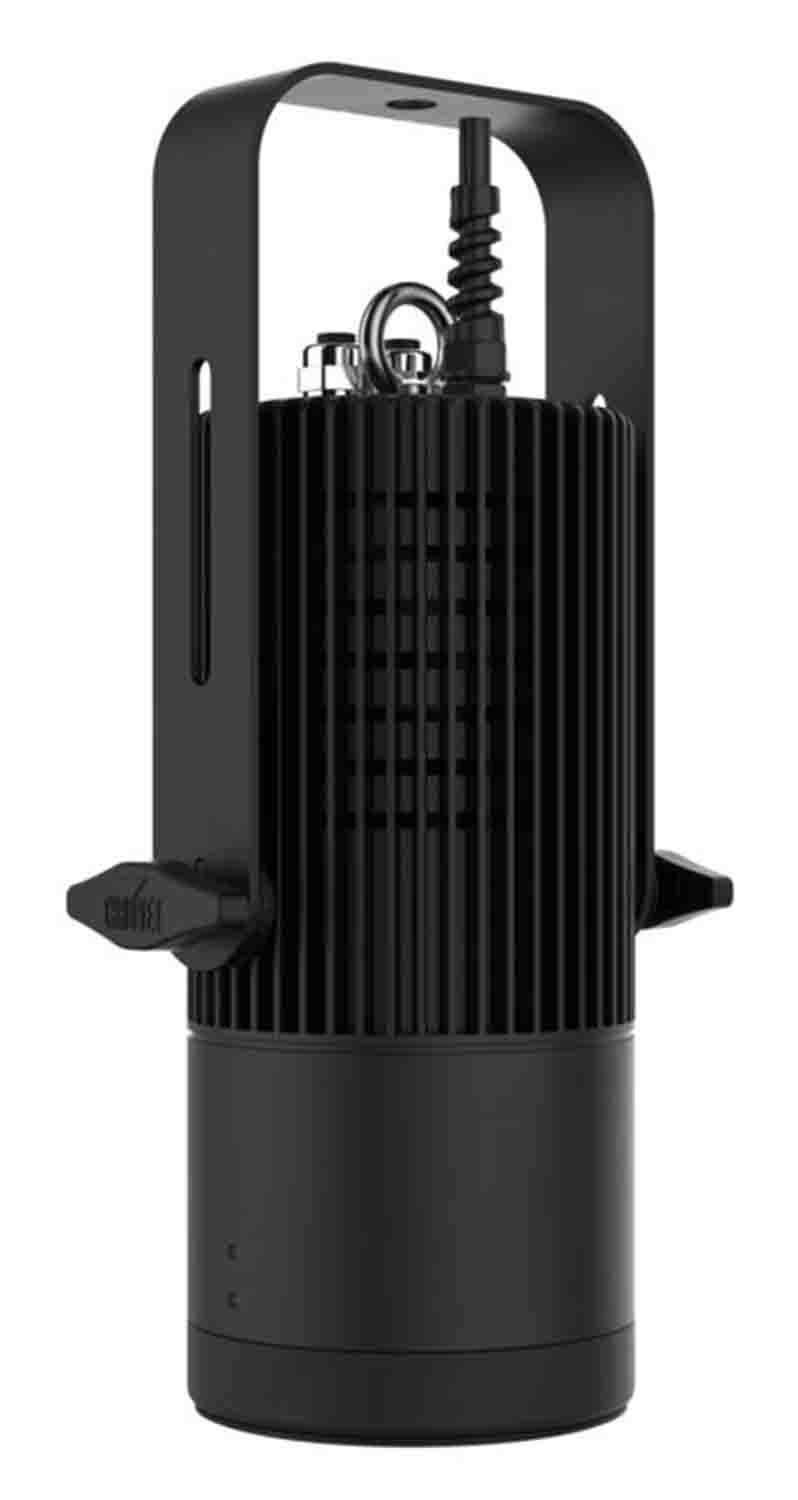

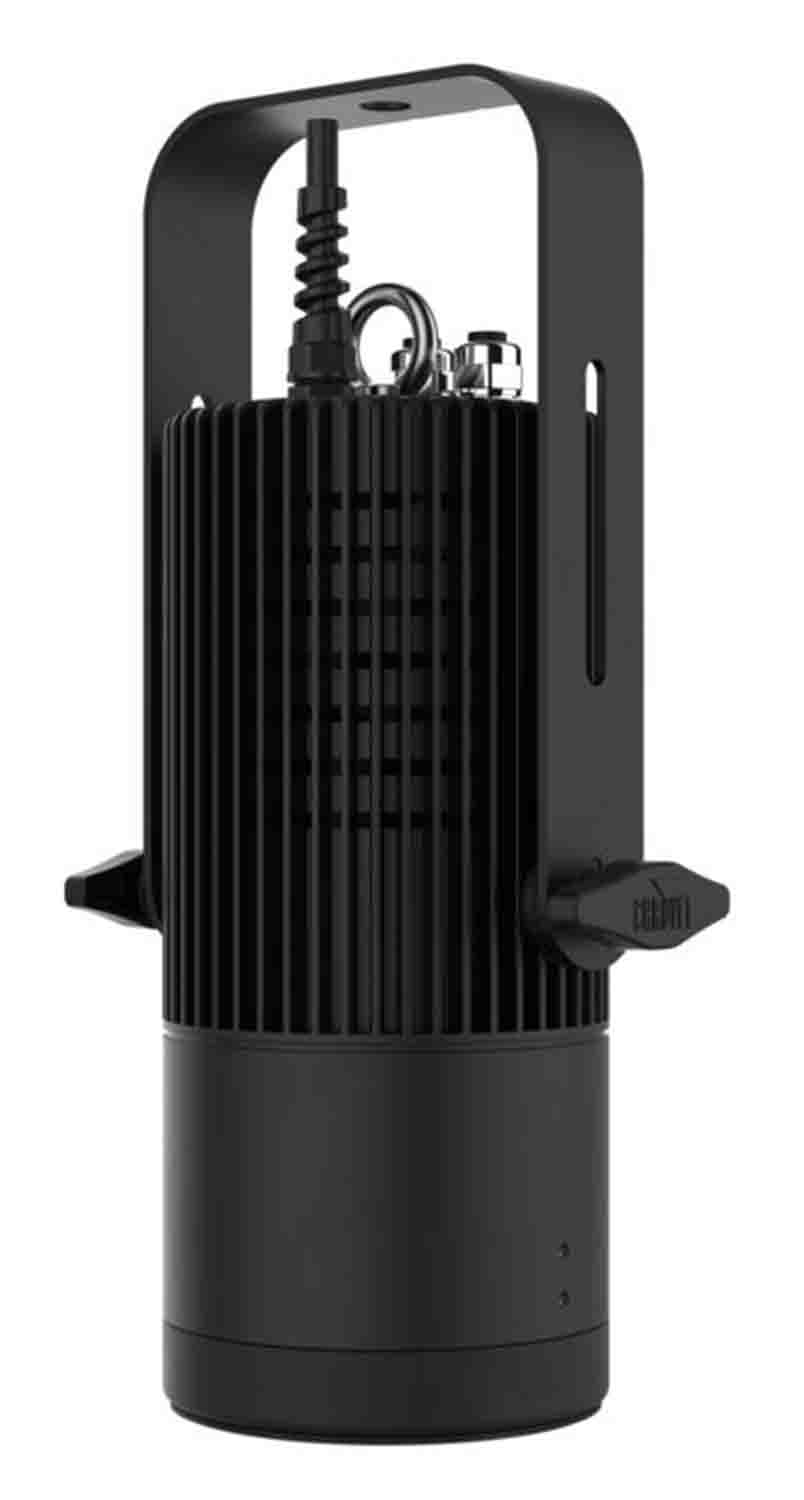

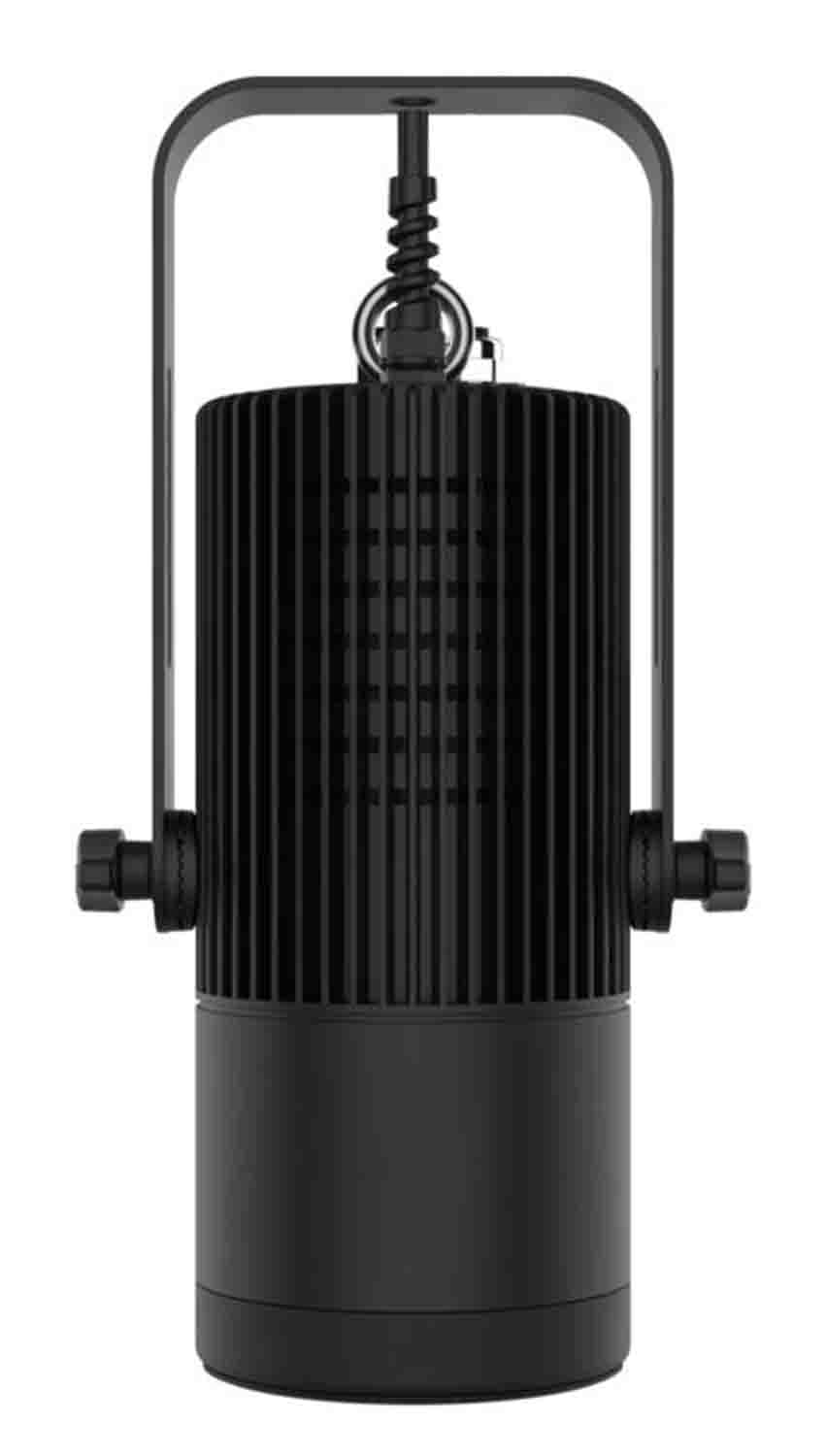

Chauvet Pro Ovation H-55FC Silent Convection-Cooled LED House light - White

The Chauvet Pro Ovation H-55FC Silent Convection-Cooled LED House light - White is a small, silent, convection cooled LED house light with a punchy, full color output and high CRI that makes it ideal for theaters, recital halls, worship venues, or any other application with a smaller trim height. The compact unit also features 16-bit dimming, RDM and W-DMX control as well as adjustable PWM to prevent flickering on televised performances. The interchangeable lenses are a must-have feature in theatrical and house of worship applications. The compact house light also includes multiple mounting options with removable fixture yoke, a recess mounting, and a sconce mounting kit.

Product Specifications:

Optical

Light Source: 26 LEDs (6 red, 6 green, 6 blue, 5 amber, 4 lime) 2.62 to 5.25 W, (840 mA), 4807 K, 50,000 hours life expectancy.

Color Temperature (at full): 4807 K

CRI: 82

Lumens (w/25° lens): 2,849

Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6000 Hz, 25,000 Hz

Dynamic Effects

Dimmer: Electronic

Shutter/Strobe: Electronic

Strobe Rate: 0 to 30 Hz

Construction / Physical

Dimensions: 13.14 x 6.92 x 4.52 in (334 x 176 x 115 mm)

Weight: 7.4 lb (3.4 kg)

Exterior Color: Black

Connections

Power Connection: Bare-wired

Power Input: Hard-wired

Data Connectors: 5-pin XLR, Phoenix connector

Cable Length (power): 15 ft (4.5 m)

Control

Control Protocol: DMX, W-DMX, RDM

DMX Channels: 4, 5, 8, 11, 13, 14, 16 or HSV

Modes/Personalities: 8 personalities (2, 4, 5, 8, 11, 13, 14, 16, HSV)

Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)

Power and Current: 62 W, 0.541 A @ 120 V, 60 Hz

Power and Current: 64 W, 0.308 A @ 208 V, 60 Hz

Power and Current: 64 W, 0.278 A @ 230 V, 50 Hz

Certifications / Qualifications

CE, MET,

IP Rating: IP20, dry location

Temperature (Ambient): -4 °F to 113 °F (-10 °C to 45 °C)

What's Included

Ovation H-55FC

65°, 40° and 25° Lens

80° Filter

Egg Crate

Recess and Sconce Mounting Kits

Optional Accessories

W-DMX Transmitter

Professional Clamps: CTC-50HC, CTC-50HCN

5-pin DMX Cables

RDM2go
