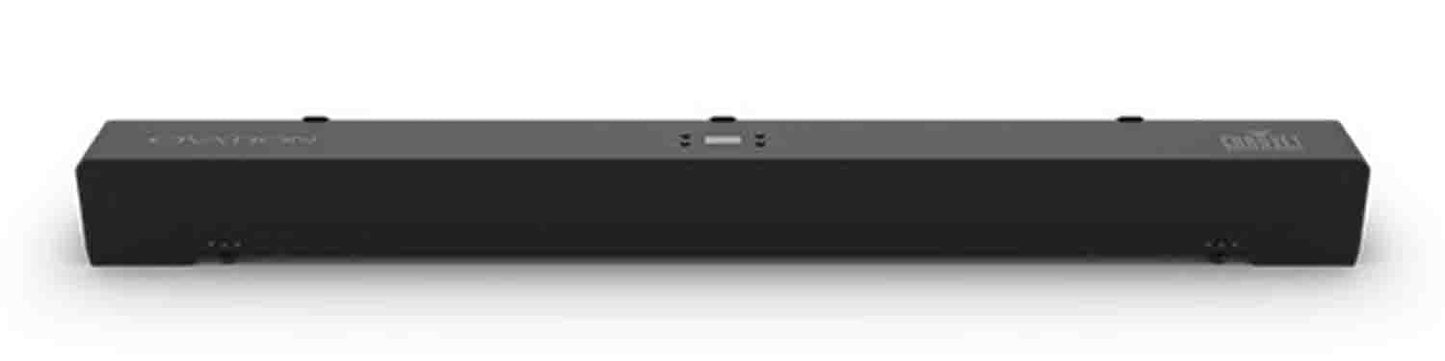

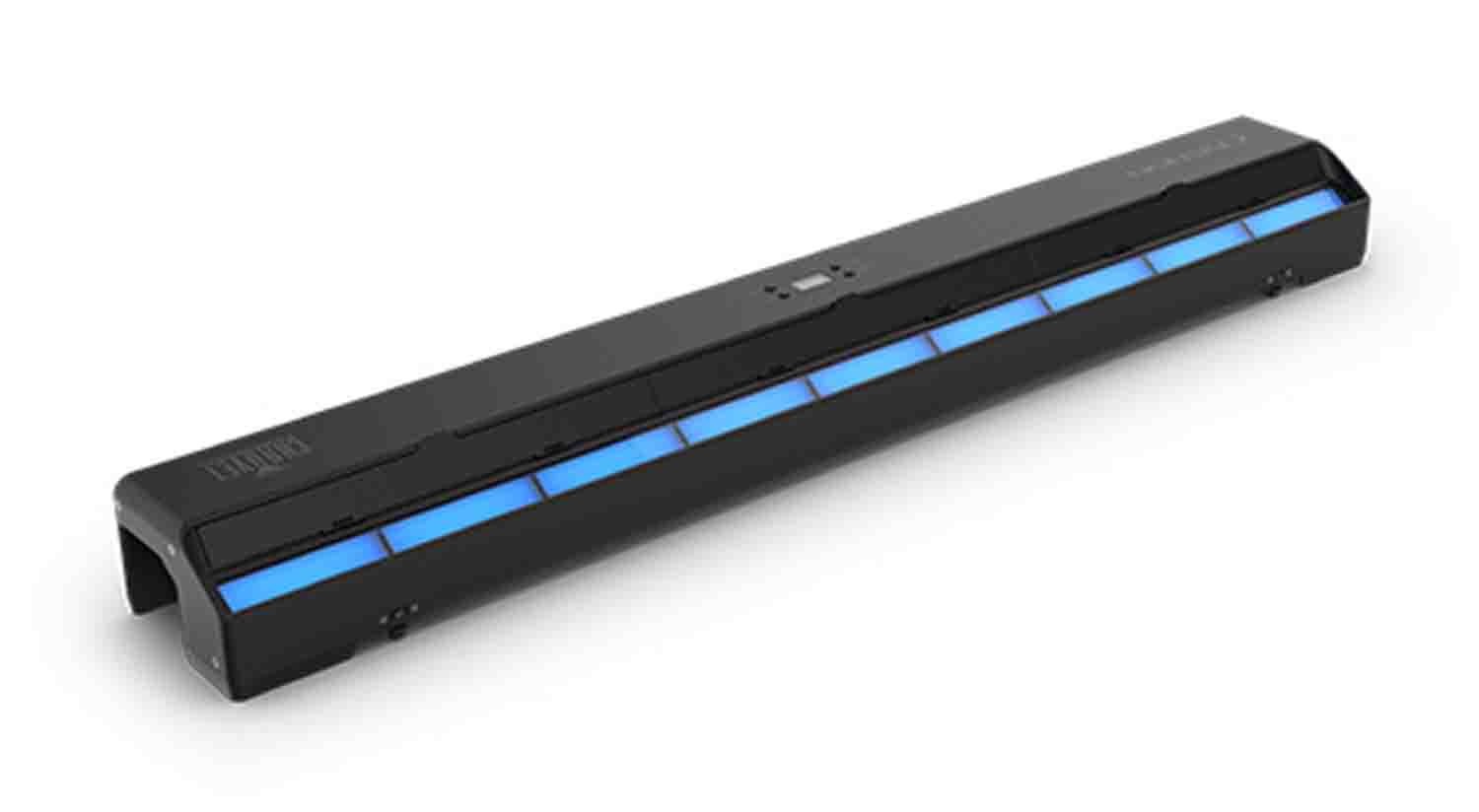

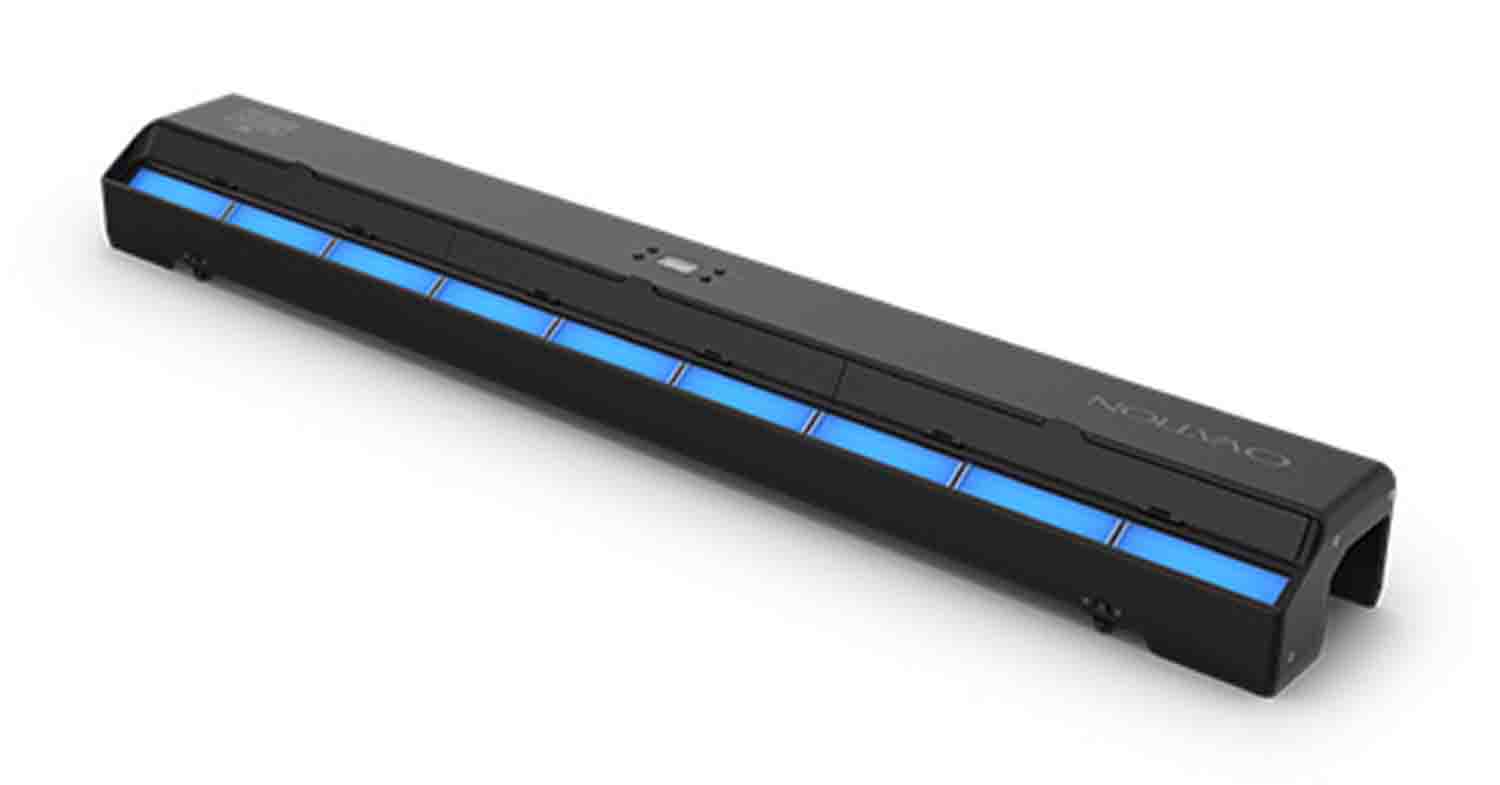

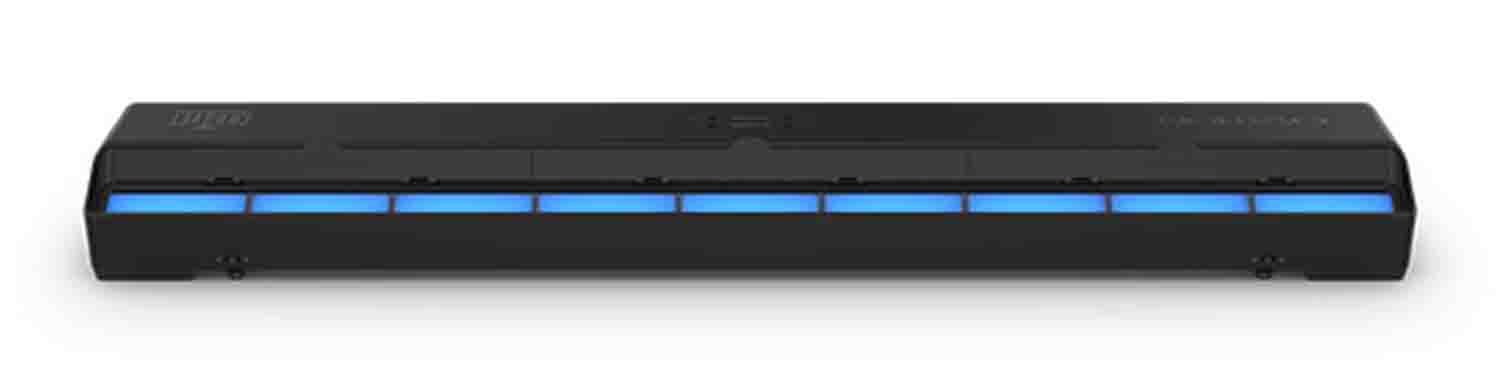

Chauvet Pro Ovation CYC 3 FC Lightweight Cyclorama Footlight Fixture

The Chauvet Pro Ovation CYC 3 FC Lightweight Cyclorama Footlight Fixture goes to new lengths to deliver a homogeneous field of light with significant reach. Its sleek low-profile blends discreetly into stage sets as either a Cyc wash or footlight and pairs perfectly with the CYC 1 FC to easily extend coverage with seamless consistency in interchangeable configurations. Completely convection cooled, the unit is ideal for applications where silent operation is critical. Ovation CYC 3 FC features the advanced RGBAL color-mixing system found in our other Full Color Ovation units to render nearly any color with tremendous realism and saturation. Given the low profile of the unit, it can also be used effectively as a footlight. This versatile fixture has an integrated kick stand and included glare shield that can adjust and shape its throw and also features included omega brackets.

Product Specifications:

Optical

Light Source: 180 LEDs (36 red, 36 green, 36 blue, 36 amber, 36 lime) 2.5 W to 3.5, (725 mA)

Color Temperature (range): 2800 to 6500 K

CRI (3200K): 90

Beam Angle (Horizontal): 111.4°

Field Angle (Horizontal): 151.8°

Beam Angle (Vertical): 76.7°

Dynamic Effects

Dimmer: Electronic

Shutter/Strobe: Electronic

Strobe Rate: 0 to 29 Hz

Standalone Color Mixing: Yes

Color Temperature Presets: Yes

Recall Custom Programs: No

Construction / Physical

Dimensions: 47.13 x 6.30 x 4.33 in (1197 x 160 x 110 mm)

Weight: 24.6 lb (11.2 kg)

Exterior Color: Black

Housing Material: Aluminum die-cast

Connections

Power Connection: Edison (Local) plug to Seetronic Powerkon IP65

Power Input: Seetronic Powerkon IP65

Power Output: Seetronic Powerkon IP65

Control

Control Protocol: DMX, RDM

DMX Channels: 2, 4, 5, 8, 11, 13, 14, 16, or HSV

Modes/Personalities: 9 personalities (2, 4, 5, 8, 11, 13, 14, 16, HSV)

Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)

Power Linking: 4 units @ 120 V; 6 units @ 208 V; 7 units @ 230 V

Power and Current: 345 W, 2.93 A @ 120 V, 60 Hz

Power and Current: 338 W, 1.77 A @ 208 V, 60 Hz

Power and Current: 334 W, 1.64 A @ 230 V, 50 Hz

Certifications / Qualifications

CE, MET, FCC, UKCA

IP Rating: IP20, dry location

Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

What's Included

OVATION CYC-3FC

Seetronic Powerkon power cord

Omega brackets with mounting hardware

OPTIONAL ACCESSORIES

Professional Clamps: CTC-50HC, CTC-50HCN

Seetronic Powerkon power linking cables

3-pin or 5-pin DMX Cables
