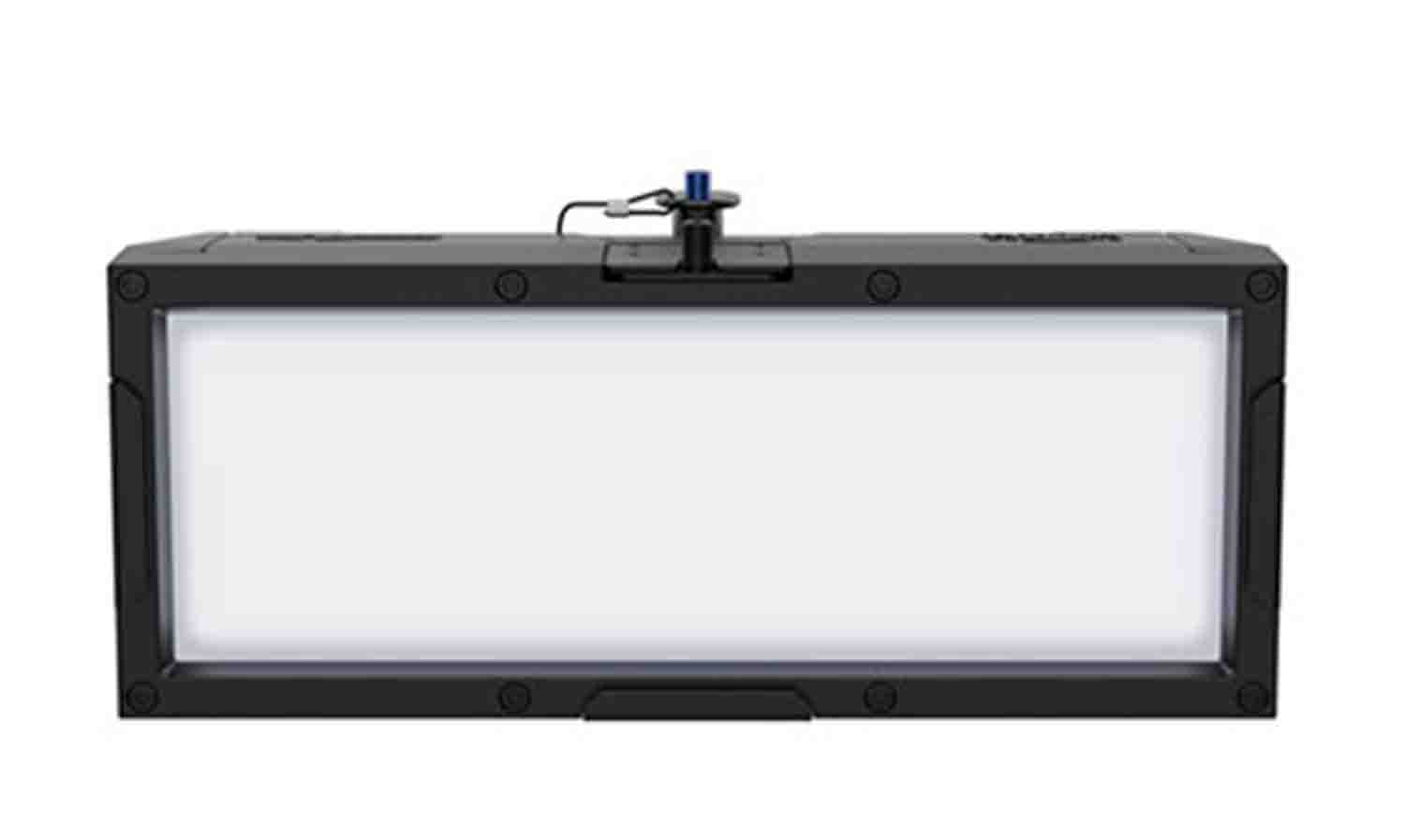

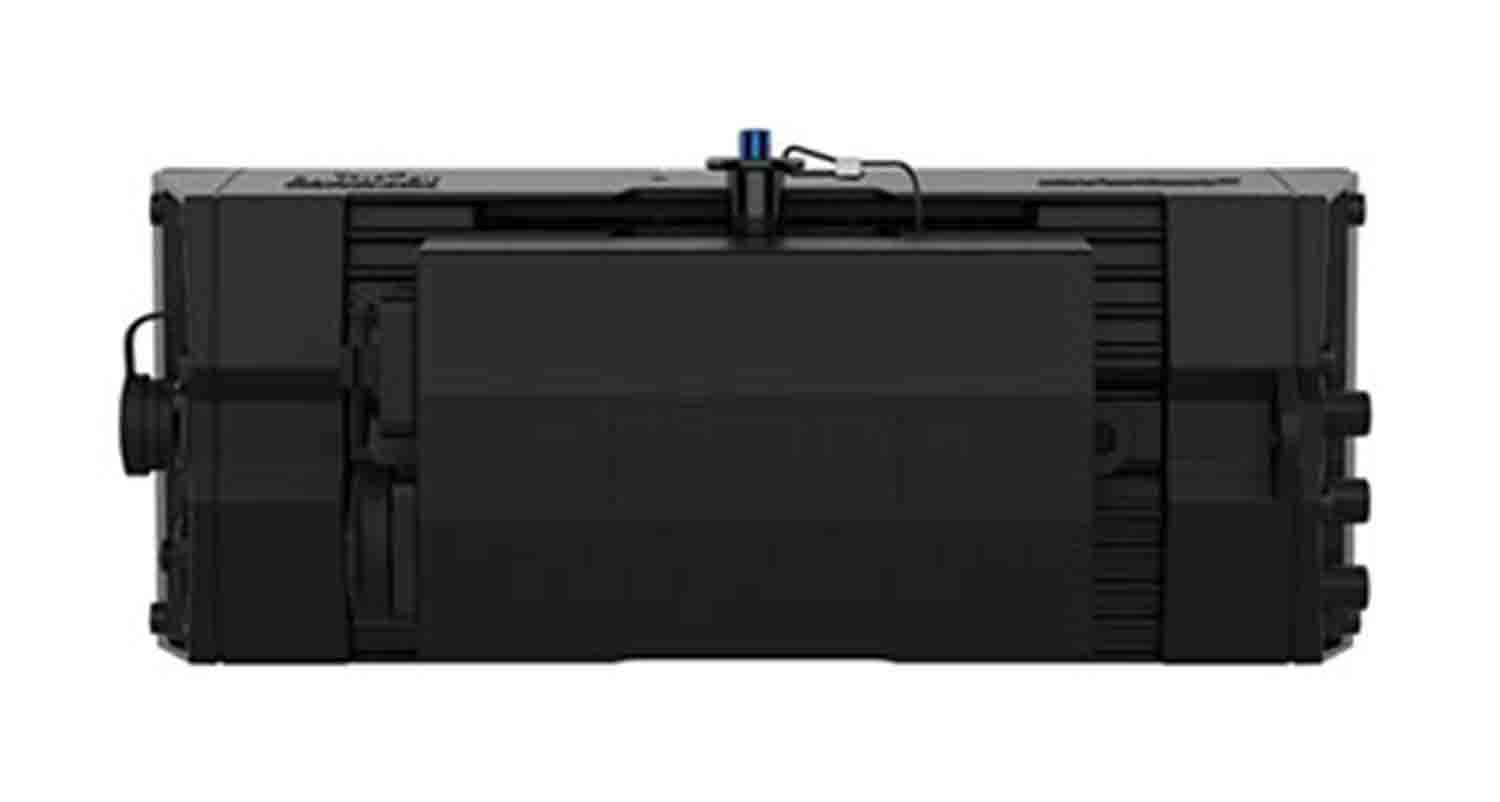

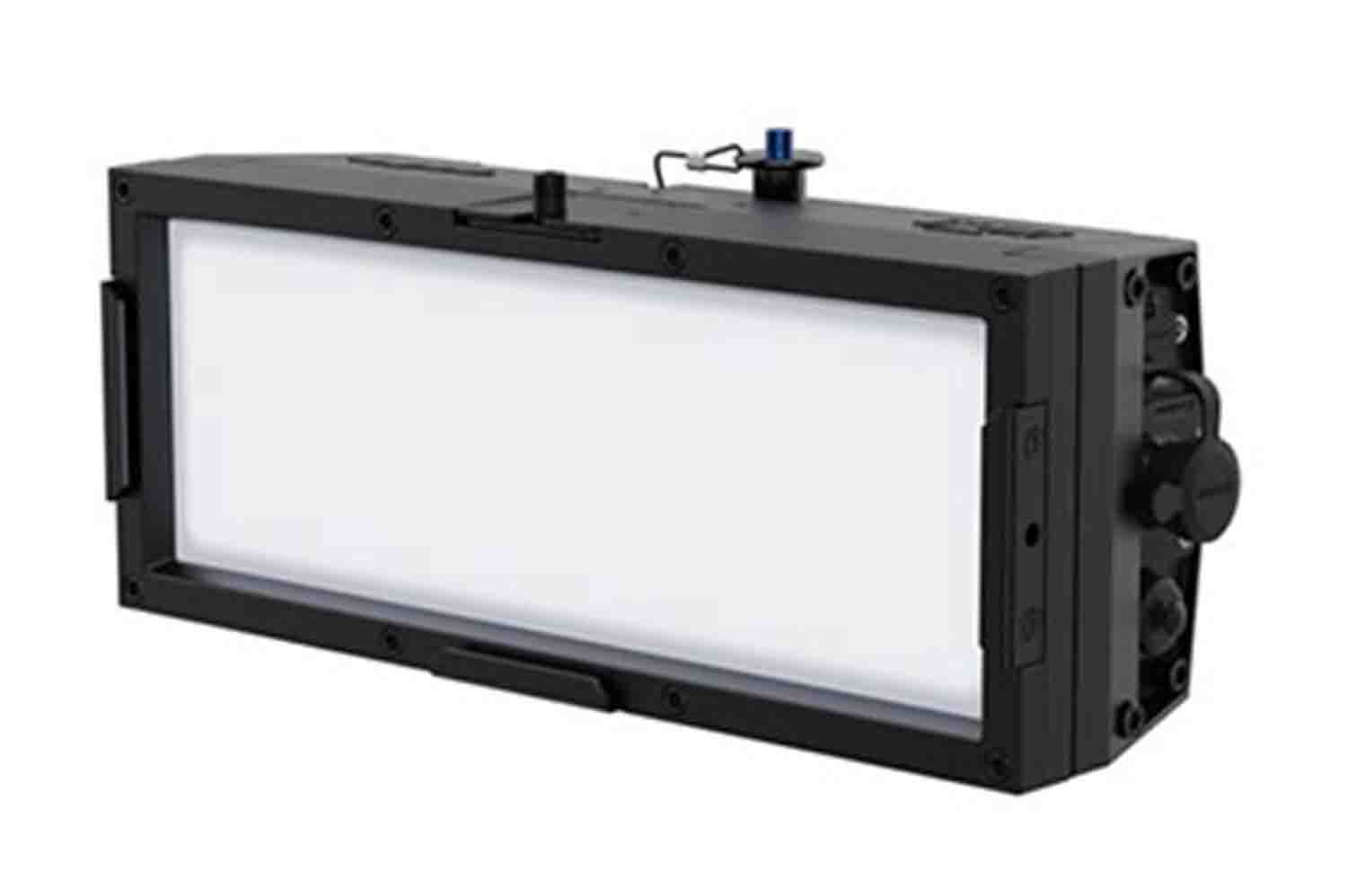

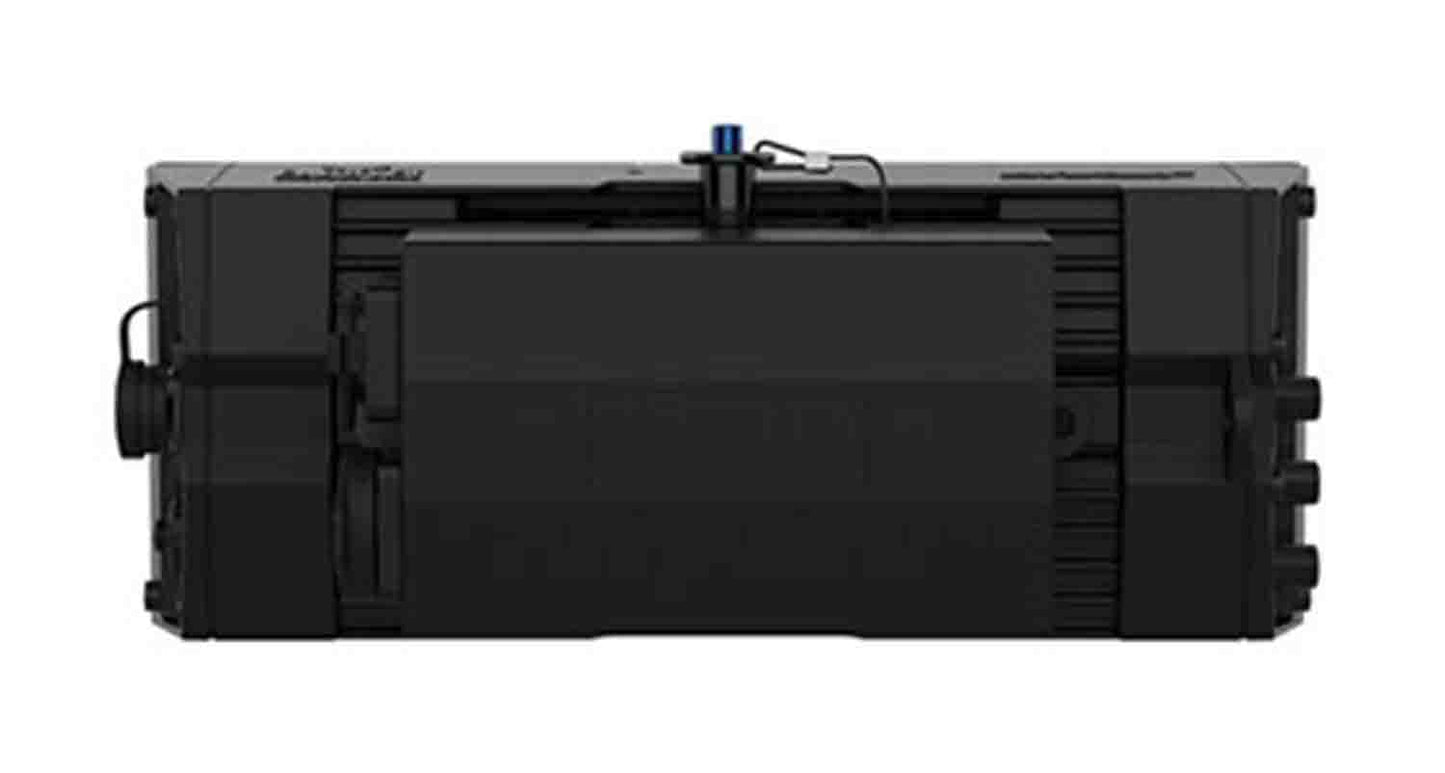

Chauvet Pro On Air IP Panel Min Full Spectrum LED Soft Light

The Chauvet Pro On Air IP Panel Min Full Spectrum LED Soft Light is a small and rugged IP65, full-spectrum LED soft light capable of facing all of the elements, outdoors or in. Ready to go on-location, or squeeze into any studio space with a low-trim, on Air IP Panel Min also features a superior quality of white light with high CRI/TLC and TM-30 scores; a smooth 16-bit dimming curve and +/- green adjustment, an emulated redshift, and the ability to produce a pop of color to achieve the exact look you are aiming to create along with built-in, customizable effects accessible from the onboard LED menu. Conveniently switch mounting options from the Ball Head Mount with included adapters for a Baby Pin Receiver or a threaded insert for attaching a clamp. The rugged build is designed with a drop-in slot to ensure ease of use when changing accessories. PWM, DMX, RDM, CRMX, Art-Net, sACN, and an onboard control option ensure camera-ready use. Its small size makes it super portable, and you can remove the main power supply for a 28 VDC input via 3-pin XLR to power the fixture from an external battery pack to add increased flexibility for all of your remote needs.

Product Specifications:

Optical

Light source: 40 LEDs (tri-color RGB) 1.4 W, (150 mA), 50,000 hours life expectancy

Light source: 40 LEDs (WW) 0.50 W, (150 mA), 50,000 hours life expectancy

Color temperature (range): 2800 to 8000 K

Color temperature (at max): 6367 K

CRI: 95

Beam Angle: 94.9°

Field Angle: 149.4°

Lumens: 2,573

Illuminance: 47 lux @ 5 m

Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz

Dynamic Effects

Dimmer: Electronic

Shutter/Strobe: Electronic

Strobe Rate: 0 to 27 Hz

Independent color mixing: Yes

Color temperature presets: Yes

Dimming modes: 4

Dim Curves: 4

Built-in automated programs: Yes

Construction / Physical

Dimensions w/ PSU: 10 x 5.62 x 4.29 in (254 x 143 x 109 mm)

Dimensions w/o PSU: 10 x 4.13 x 4.29 in (254 x 105 x 109 mm)

Weight w/ PSU: 6.2 lb (2.9 kg)

Weight w/o PSU: 4.2 lb (2 kg)

Exterior Color: Black

Housing material: Aluminum Alloy

Connections

Power connection: Edison plug (local) to Seetronic PowerCON IP65

Power input: Seetronic PowerCON IP65

Power Input: 28 VDC, 3-pin IP65 XLR

Cable Length (power): 5 ft (1.5 m)

Software Connection: USB

Control

Control Protocol: CRMX, RDM

DMX Channels: 1, 3, 4, 5, 6, 8, 10, 11, 15

Modes/Personalities: 9 personalities (1, 3, 4, 5, 6, 8, 10, 11, 15Ch1)

Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)

Power and Current: 49 W, .419 A @ 120 V, 60 Hz

Power and Current: 52 W, .260 A @ 208 V, 60 Hz

Power and Current: 57 W, .246 A @ 230 V, 50 Hz

Certifications / Qualifications

CE, MET, FCC,

IP Rating: IP65, temporary outdoor use, with pressure equalizing M12 GORE valve

Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

What's Included

On-air IP Panel Min IP

Seetronic Powerkon IP65

Mounting Hardware

Optional Accessories

On-air Panel Min IP Barndoor

On-air Panel Min IP 30deg Honeycomb

On-air Panel Min IP 60deg Honeycomb

Professional Clamps: CTC-50HC, CTC-50HCN

Seetronic Powerkon Power Linking Cables

5-Pin DMX Cables
