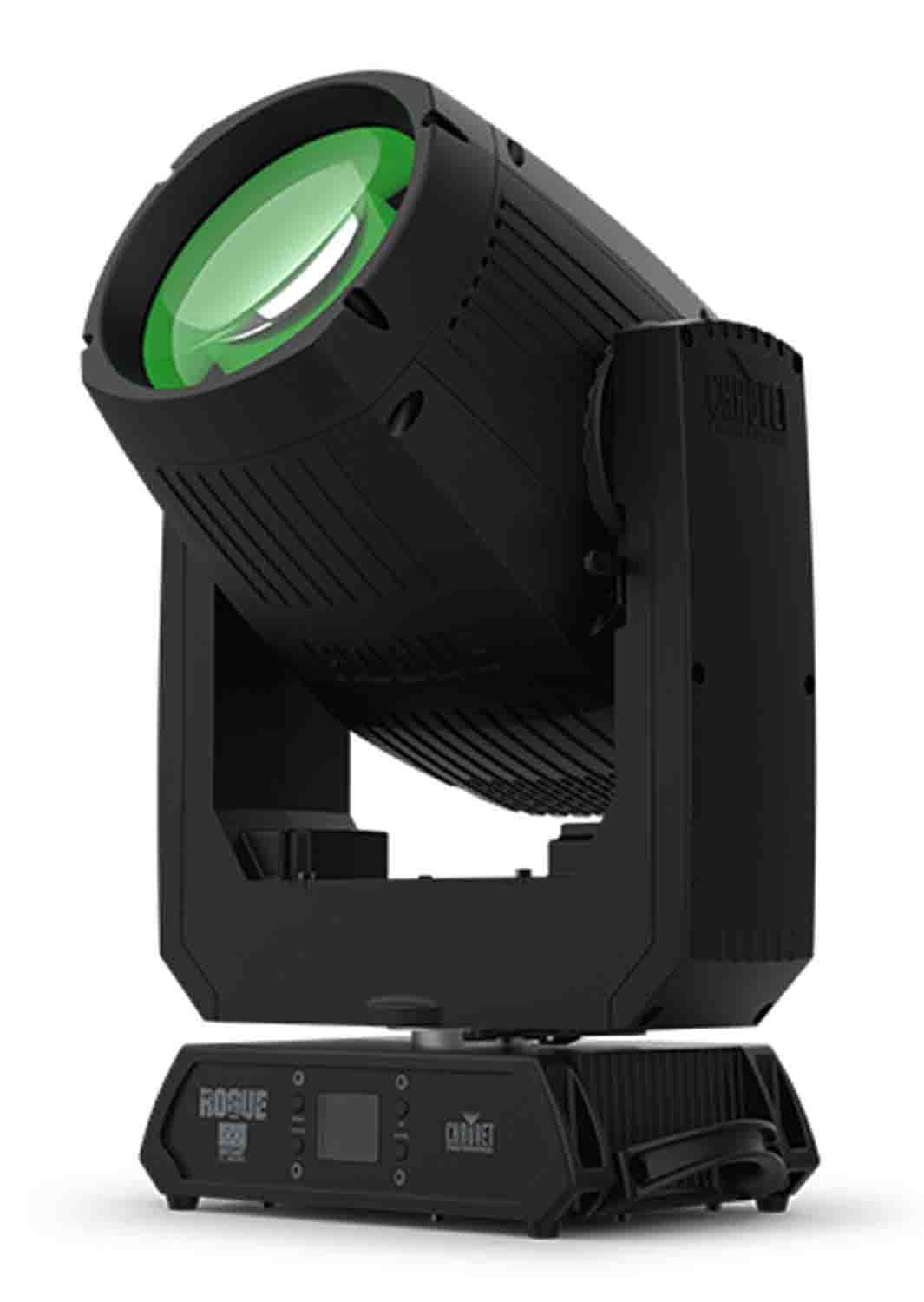

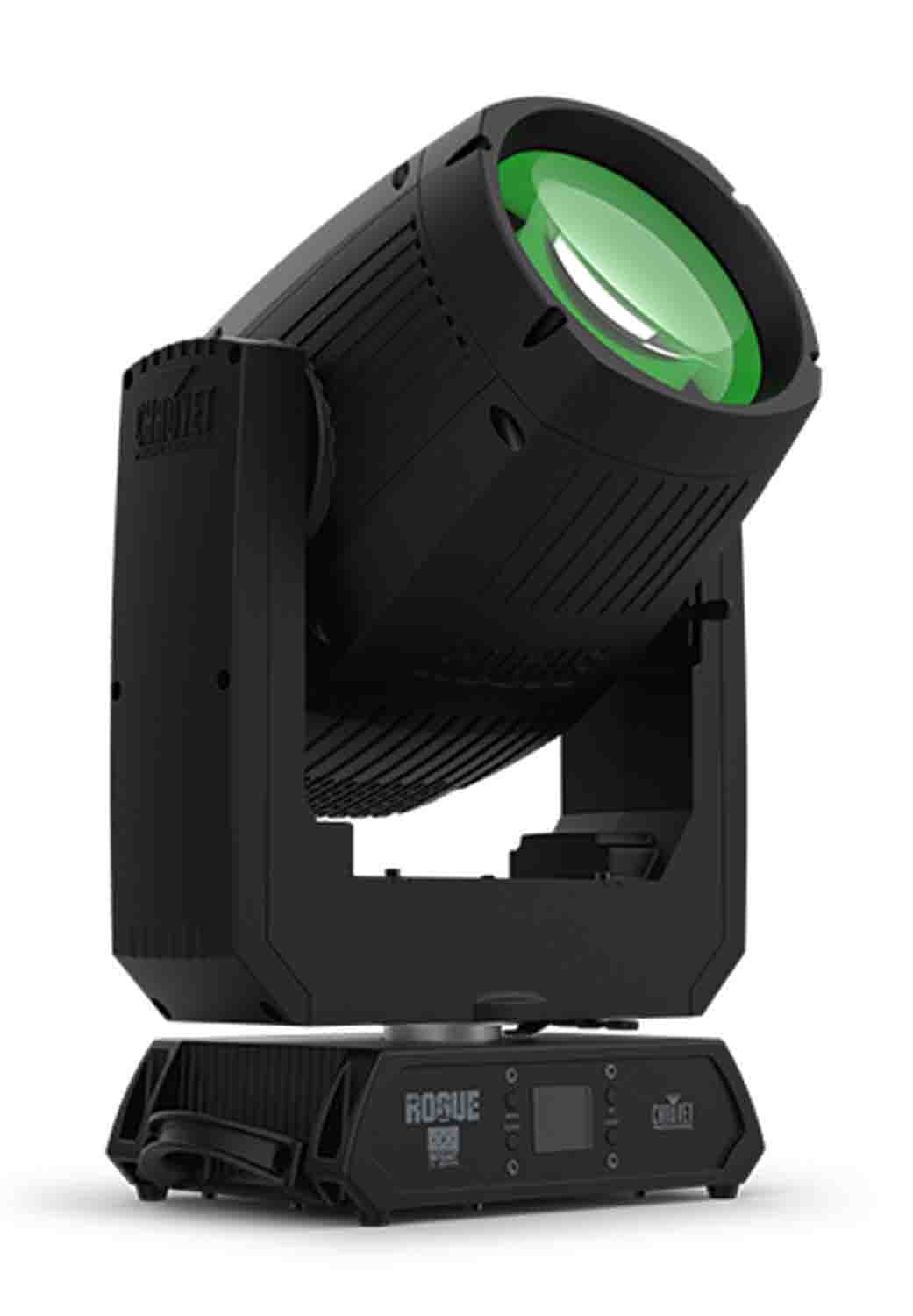

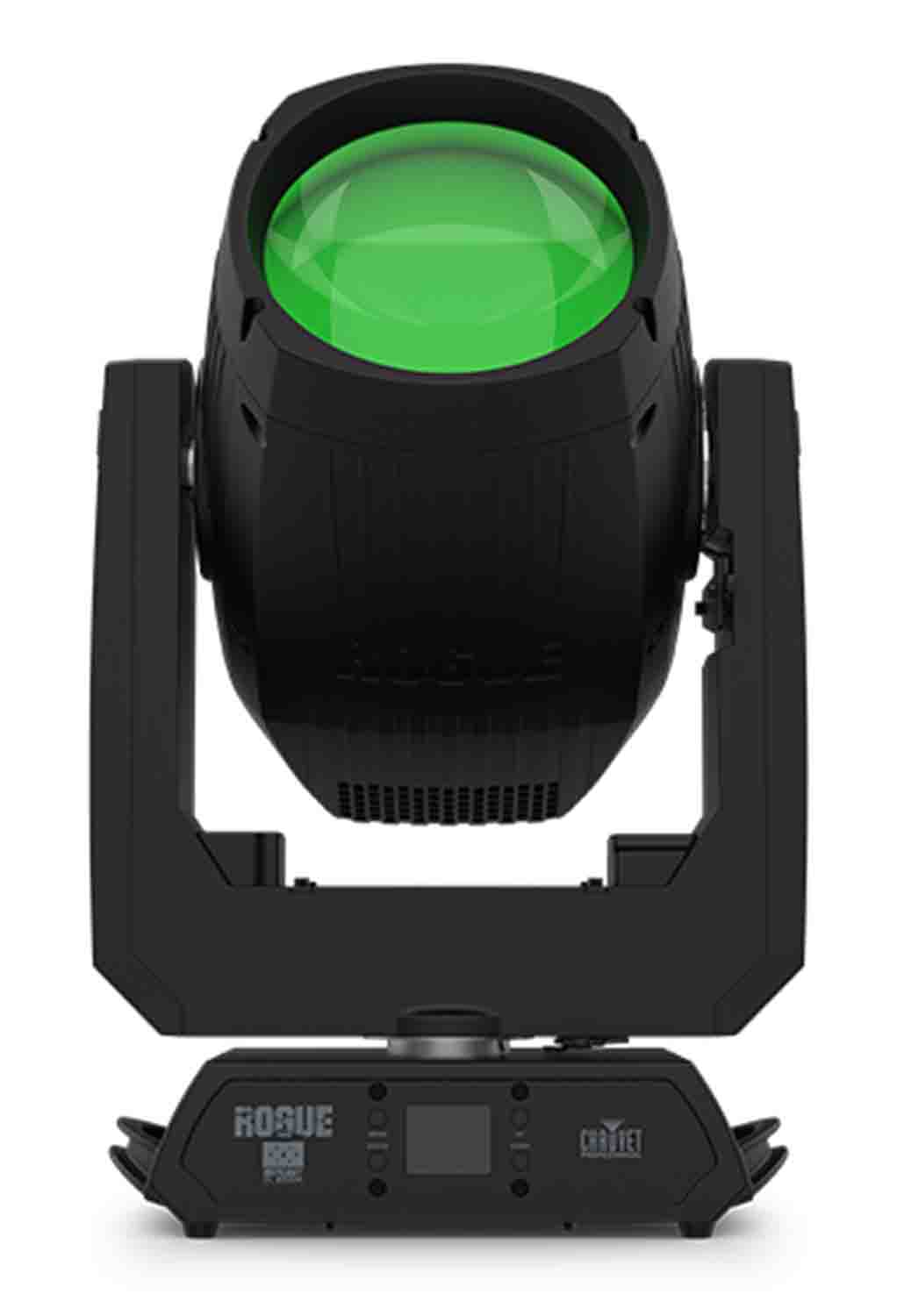

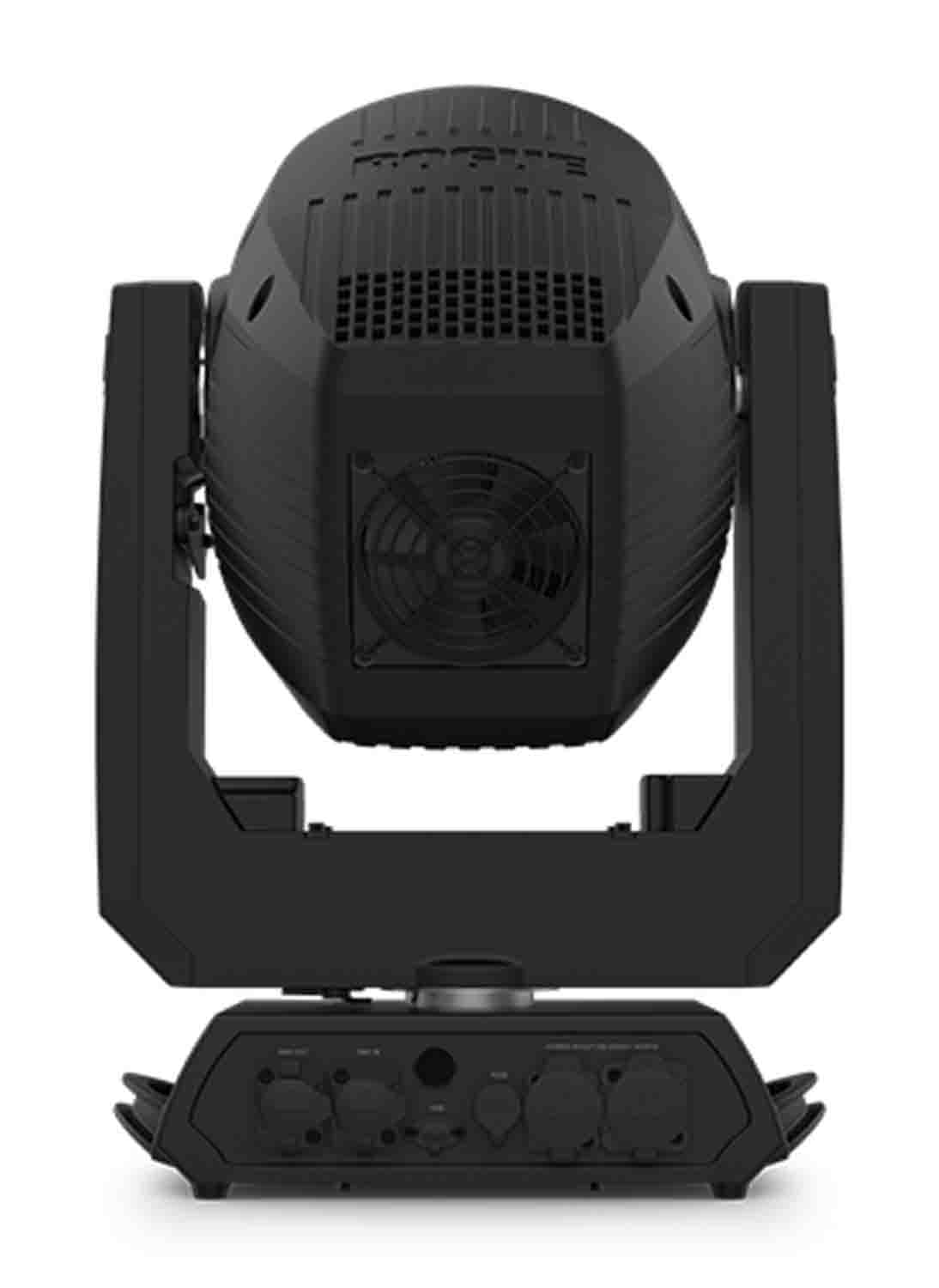

Chauvet Pro Rogue Outcast 1L Beam High Powered IP65 Rated LED Beam Fixture

The Chauvet Pro Rogue Outcast 1L Beam High Powered IP65 Rated LED Beam Fixture  is a lightweight IP65 beam that packs a punch with speed and precision. Its tight 1.4° beam projects extremely focused aerial effects. Create dynamic midair looks with this fully-featured fixture that includes a color wheel, single gobo wheel (with both rotating and static gobos), layer able dual prisms and frost. Its durable alloy housing not only weathers outdoor elements but also brings advantages to indoor installations with a low-maintenance design that withstands particulates such as fog and haze.

Product Specifications:

Optical

Light Source: 1 LED (CW) 140 W, (4 A), 50,000 hours life expectancy

Color Temperature (at full): 6928 K

Front lens diameter: 160 mm

CRI: 69.3

Beam Angle: 1.4°

Field Angle: 1.7°

Cutoff Angle: 1.8°

Lumens – Source: 5500

Lumens – Output: 3218

Illuminance (total): 224,670 lux @ 5 m

Dynamic Effects

Pan and Tilt: 540°/270°

Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt

Colors: 14 + white, split colors, continuous scroll at variable speeds

Gobos: 14 + open (14 metal), 7 rotating, 7 static, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds

Gobo Size: Gobo Wheel (rotating): Positions 2, 4, 6, 8, 10, 12 and 14 (metal); size: 9.8 mm (outside), 5 mm (image), 0.6 mm (max. thickness)

Dimmer: Electronic

Shutter/Strobe: Motorized

Focus: Motorized

Frost: Motorized

Prism: 5 Facets, motorized, linear, rotating

Prism: 8 Facets, motorized, round, rotating

Move-in-Black: Yes

Construction / Physical

Dimensions: 12.56 x 8.58 x 19.88 in (319 x 218 x 505 mm)

Weight: 35.4 lb (16.1 kg)

Exterior Color: Black

Housing Material: Aluminum/Magnesium diecast

Connections

Power Connection: Bare ended to Seetronic Powerkon IP65

Power Input: Seetronic Powerkon IP65

Data Connectors: 5-pin IP rated

Cable Length (power): 5 ft (1.5 m)

Control

Control Protocol: DMX, RDM

DMX Channels: 17 or 19

Modes/Personalities: 2 personalities (17, 19)

Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)

Power and Current: 233 W, 2.08 A @ 120 V, 60 Hz

Power and Current: 226 W, 1.15 A @ 208 V, 60 Hz

Power and Current: 223 W, 1.04 A @ 230 V, 50 Hz

Certifications / Qualifications

CE, MET, UKCA,

IP Rating: IP65, temporary outdoor/ wet, with pressure equalizing M12 GORE valve

Temperature (Ambient): -14 °F to 113 °F (-10 °C to 45 °C)

Maximum Exterior Surface Temperature (Tc): 80° C / 176° F

Maximum Ambient Temperature (ta): 45° C / 113° F

What's Included

Rogue Outcast 1L Beam

Seetronic Powerkon IP65 power cord

(2) Omega brackets with mounting hardware

Optional Accessories

Clamps

IP65 5 pin DMX Cables

IP65 Powerkon Extension cables

Flight Case
