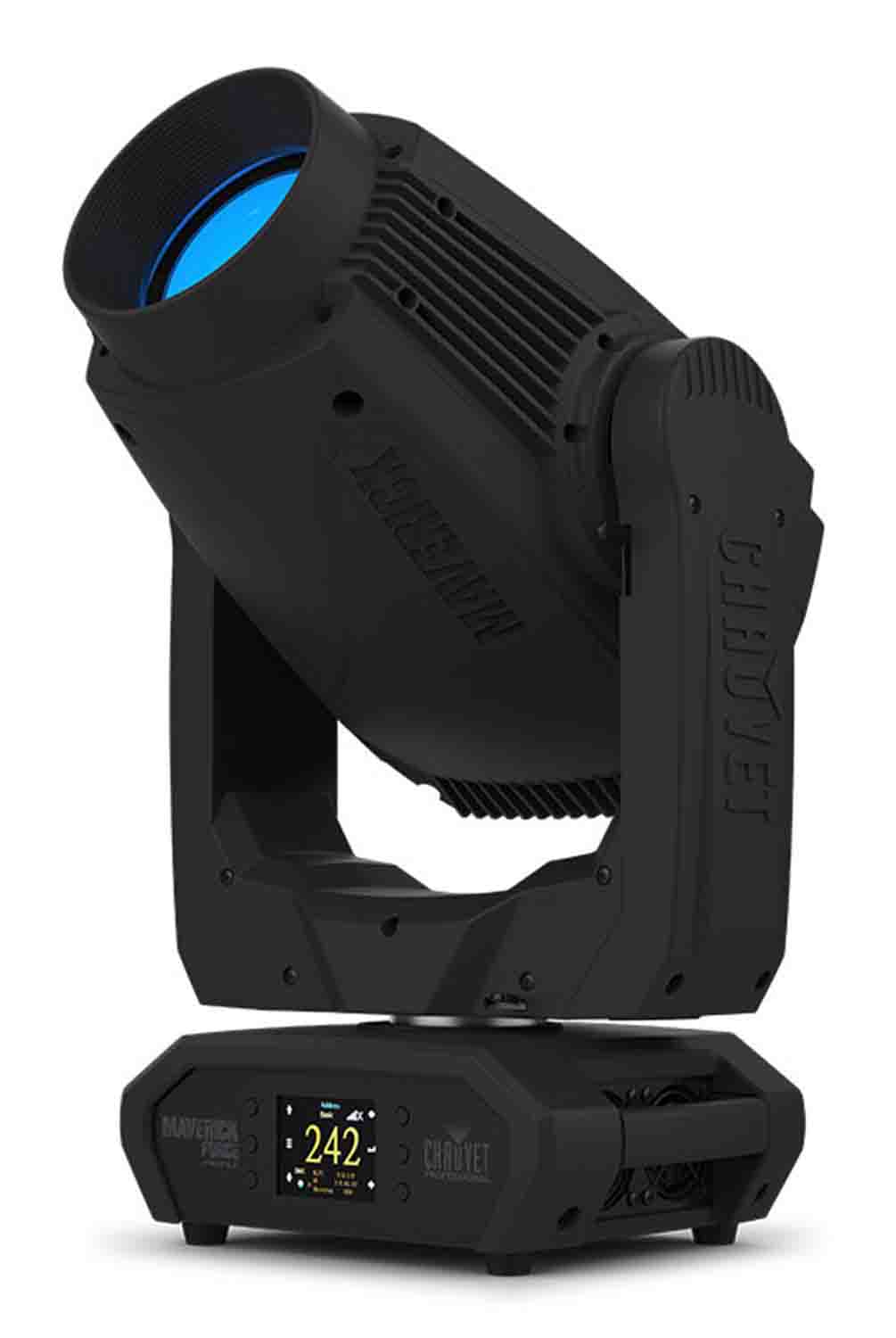

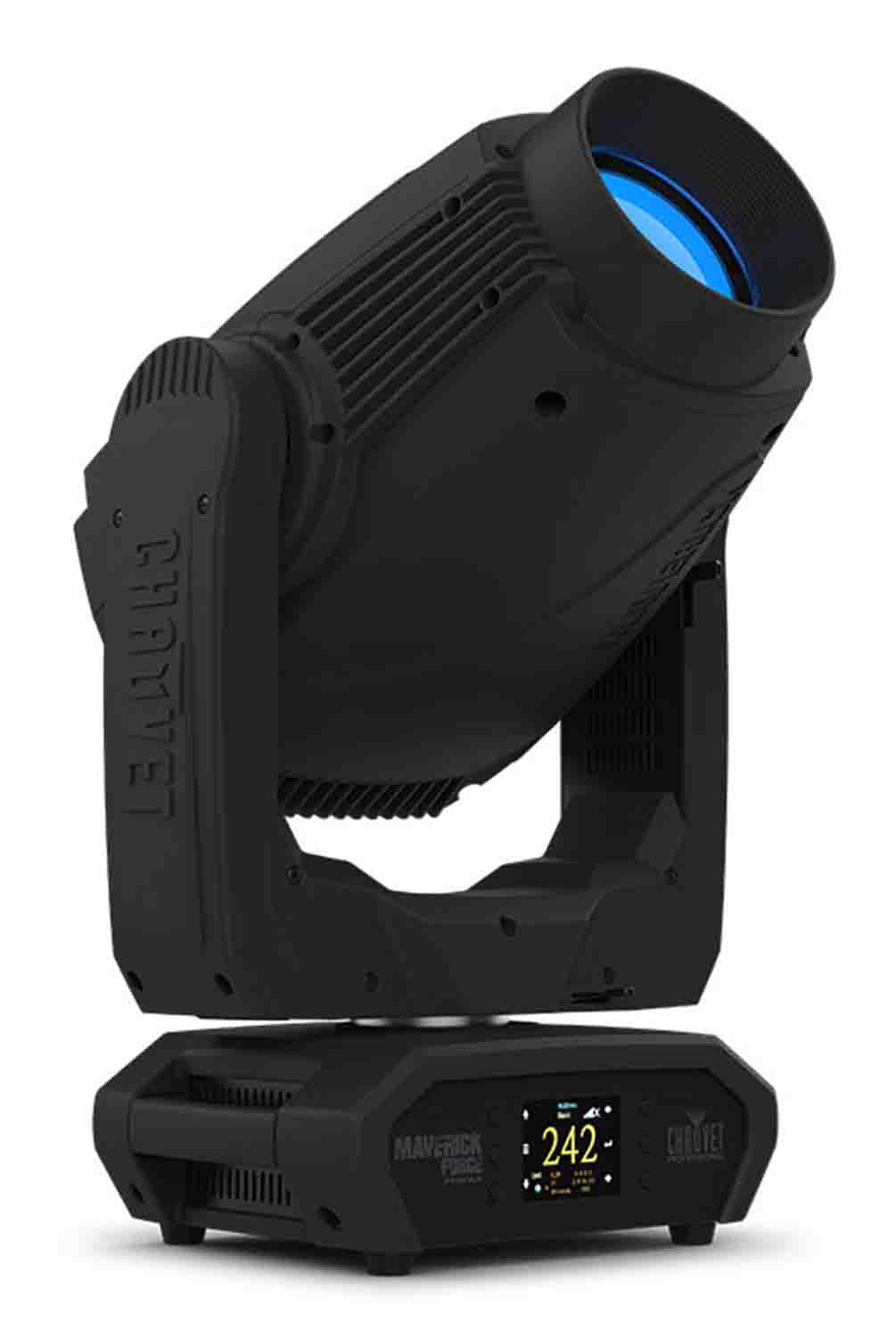

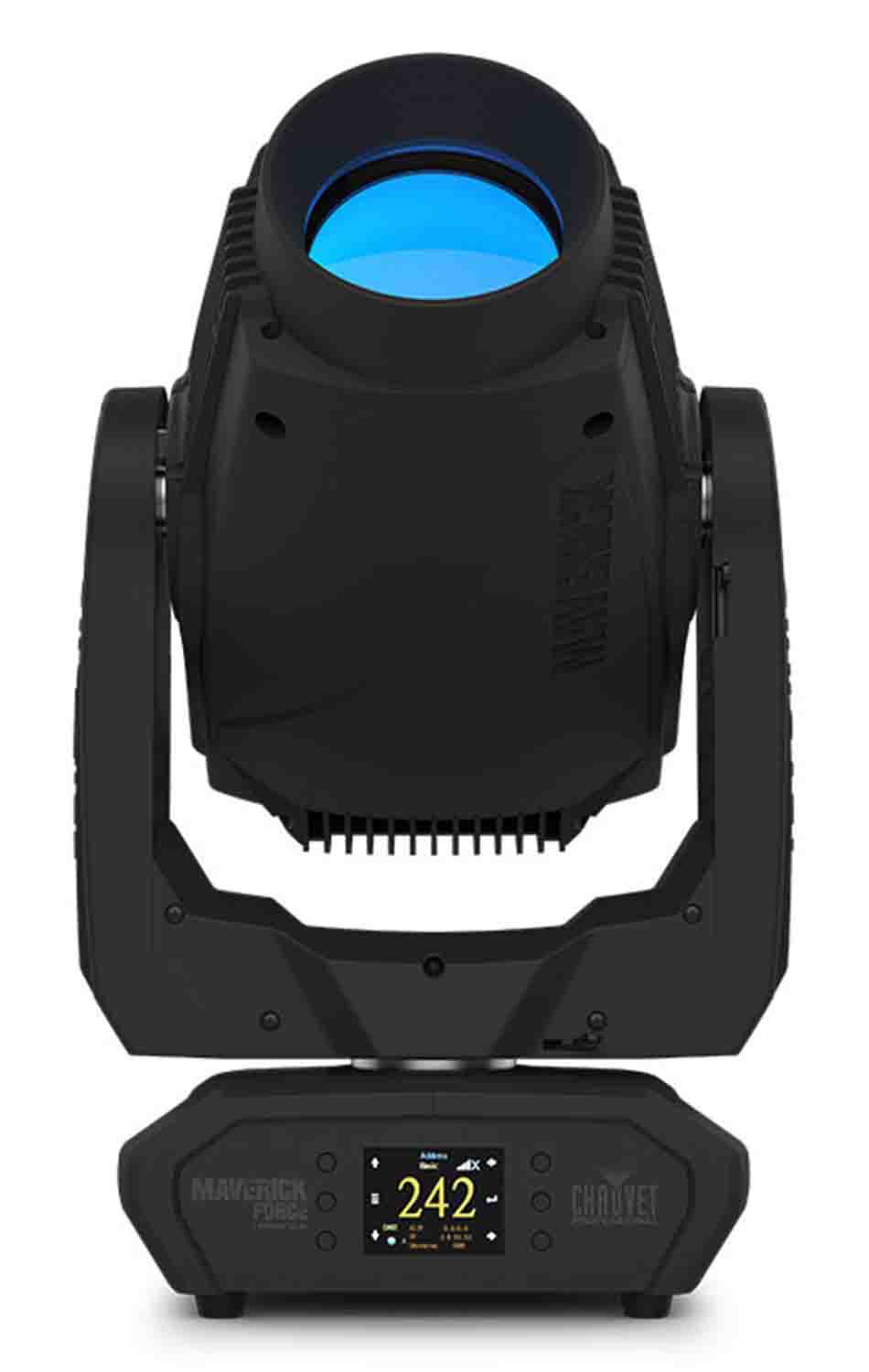

Chauvet Pro Maverick Force S Profile Lightweight 350 W LED Yoke Profile Fixture

The Chauvet Pro Maverick Force S Profile Lightweight 350 W LED Yoke Profile Fixture is ideal for small to medium multi-faceted projects in need of seamless color-mixing, advanced optics, framing shutters, and control options in a lightweight frame. Just over 50 lbs, this compact unit features a smart optical system that maximizes the output of 14,000 lumens and provides high-quality color mixing with a CTB filter. An 8-slot color wheel is also added with split-color combinations in mind. Maverick Force S Profile includes a custom framing system equipped with dual axis movement and a 120° complete module rotation for fast beam shaping. A speedy effects artillery includes motorized iris, frost, focus, a 5-facet prism and wide zoom ranging from 4.5° to 41.6°. Additionally, custom gobos created in collaboration with leading designers can be stacked on top of one another for dynamic effects. That is a lot packed in a small frame standing just over 2 ft tall. Control as you see fit with DMX, sACN, Art-Net or W-DMX.

Product Specifications:

Optical

Light Source: 1 LED (CW) 350 W, (2.7 A), 8400K, 50,000 hours life expectancy

Color Temperature (at full): 6937K

CRI: 69

CRI with CRI filter: 89.6

Front Lens Día: 119 mm

Beam Angle: 4.5° to 35.9°

Field Angle: 5.2° to 40.5°

Zoom Angle: 5.8° to 41.6°

Lumens - Source: 20,000

Lumens – Output: 14,669

Selectable PWM: 600 Hz, 1200 Hz, 4000 Hz, 6000 Hz, 15000 Hz

Dynamic Effects

Pan and Tilt: 540°/270°

Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt

Colors: 7 + white, split colors, continuous scroll at variable speeds

Colors: CMY Wheels

Gobos (1): 7 + open (glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds

Gobos (2): 9 + open (metal), continuous scroll at variable speeds

Gobo Size (1): Gobo Wheel 1 (rotating): 25.5 mm (outside), 17 mm (image), 1.1 mm (max. thickness)

Framing Shutters: 4 blades, each with dual axis movement.

Framing Shutter rotation: 120°

Dimmer: Electronic

Shutter/Strobe: Electronic

Zoom: Motorized

Focus: Motorized

Frost: Motorized

Iris: Motorized

Prism: 5 Facets, motorized, rotating

Strobe Rate: 0 to 20 Hz

Move-in-Black: Yes

Dim Curves: 4

Construction / Physical

Dimensions: 15.5 x 9.8 x 25.0 in (361 x 238 x 639 mm)

Weight: 52.9 lb (24 kg)

Exterior Color: Black

Housing Material: High-impact flame-retardant polymer

Connections

Power Connection: Edison plug to Seetronic Powerkon IP65

Power Input: Seetronic Powerkon IP65

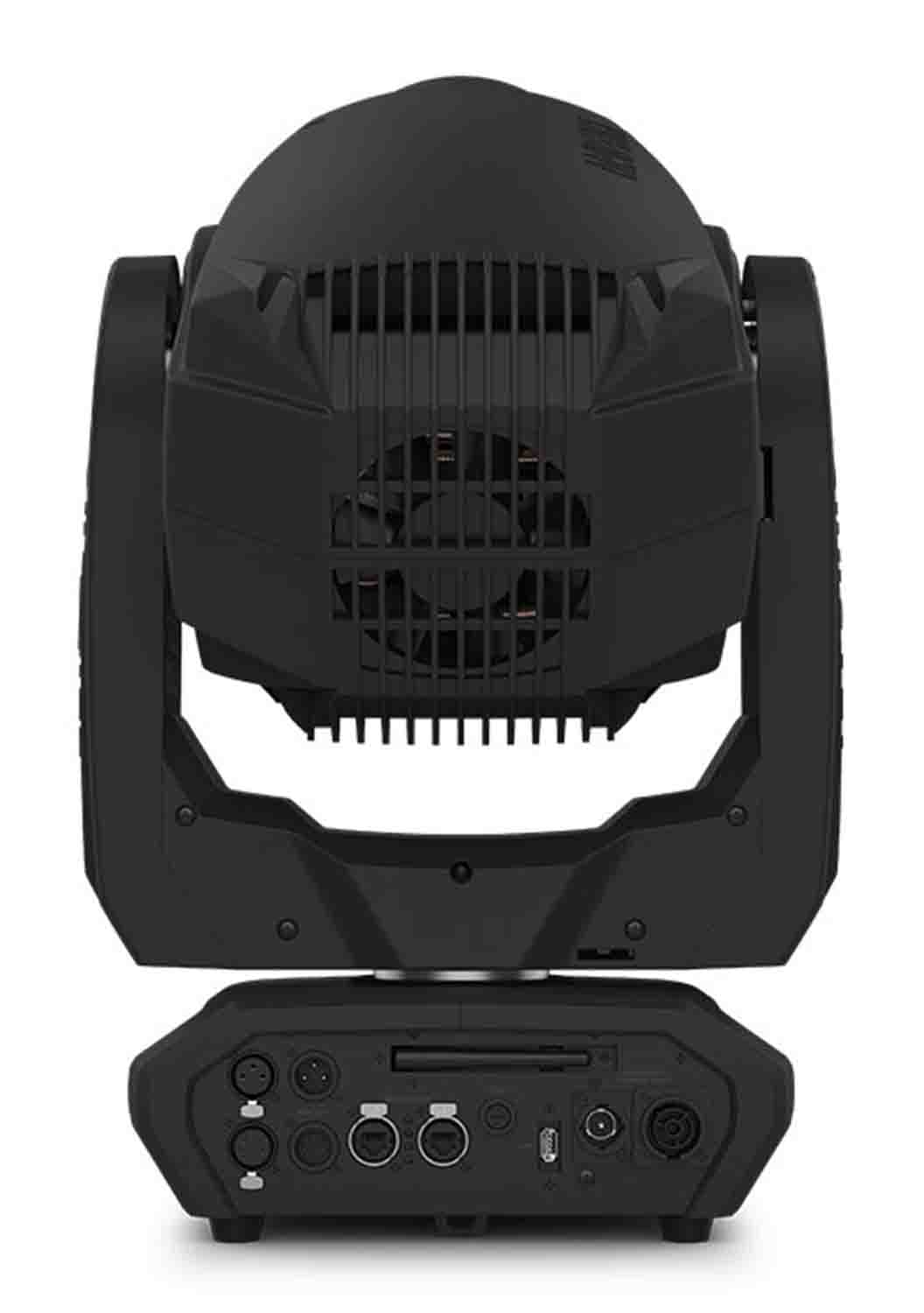

Data Connectors: 3-pin and 5-pin XLR, Amphenol XLR Net RJ45 Connectors in/out

Cable Length (power): 5 ft (1.5 m)

Control

Control Protocol: Art-Net, sACN, DMX, RDM, W-DMX

DMX Channels: 31 or 47

Art-Net Channels: 31 or 47

Modes/Personalities: 2 personalities (31, 47)

Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)

Power Linking: 2 units @ 100 V; 2 units @ 120 V; 5 units @ 208 V; 4 units @ 230 V; 5 units @ 240 V

Power and Current: 580 W, 5.82 A @ 100 V, 60 Hz [9.0 An in-rush]

Power and Current: 563 W, 4.75 A @ 120 V, 60 Hz [8.0 An in-rush]

Power and Current: 547 W, 2.69 A @ 208 V, 60 Hz [15.0 An in-rush]

Power and Current: 546 W, 2.44 A @ 230 V, 50 Hz [17.0 An in-rush]

Power and Current: 543 W, 2.33 A @ 240 V, 50 Hz [16.0 An in-rush]

Power and Current (resting): 86 W, 0.929 A @ 100 V, 60 Hz

Power and Current (resting): 85 W, 0.757 A @ 120 V, 60 Hz

Power and Current (resting): 82 W, 0.449 A @ 208 V, 60 Hz

Power and Current (resting): 81 W, 0.412 A @ 230 V, 50 Hz

Power and Current (resting): 79 W, 0.404 A @ 240 V, 50 Hz

Certifications / Qualifications

CE, MET, FCC

IP Rating: IP20, dry location

Noise Level (ambient): 37.5 dB level @ 1 m

Noise Level (Static - Full): 47.1 dB level @ 1 m

Noise Level (Static - Eco): 37.9 dB level @ 1 m

Noise Level (Static - Auto): 38.1 dB level @ 1 m

Noise Level (Max): 45.9 dB level @ 1 m

Temperature (startup): -4 °F to 113 °F (-20 °C to 45 °C)

Temperature (operating): -22 °F to 113 °F (-30 °C to 45 °C)

What's Included

Maverick Force S Profile

Seetronic Powerkon IP65 power cord

2 Omega brackets with mounting hardware

Quick Reference Guide

Optional Accessories

Professional Clamps: CTC-50HC, CTC-50HCN

Safety Cable: SC-07

DMX cables

IP Rated Seetronic Powerkon Extensions

Flight Case

UPLOAD_08 software uploader
