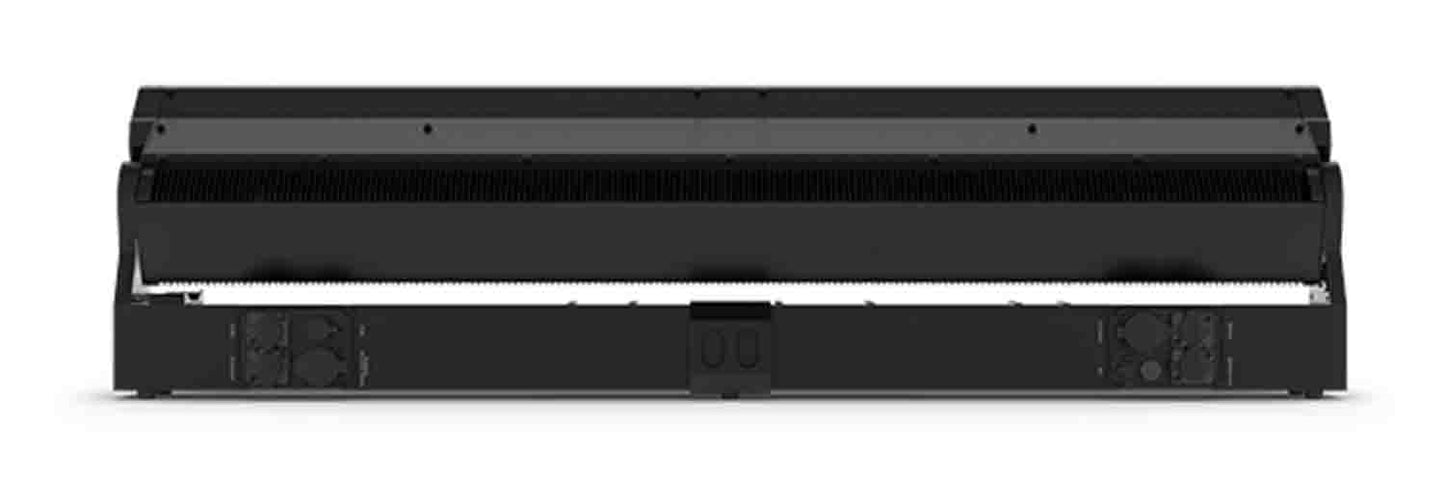

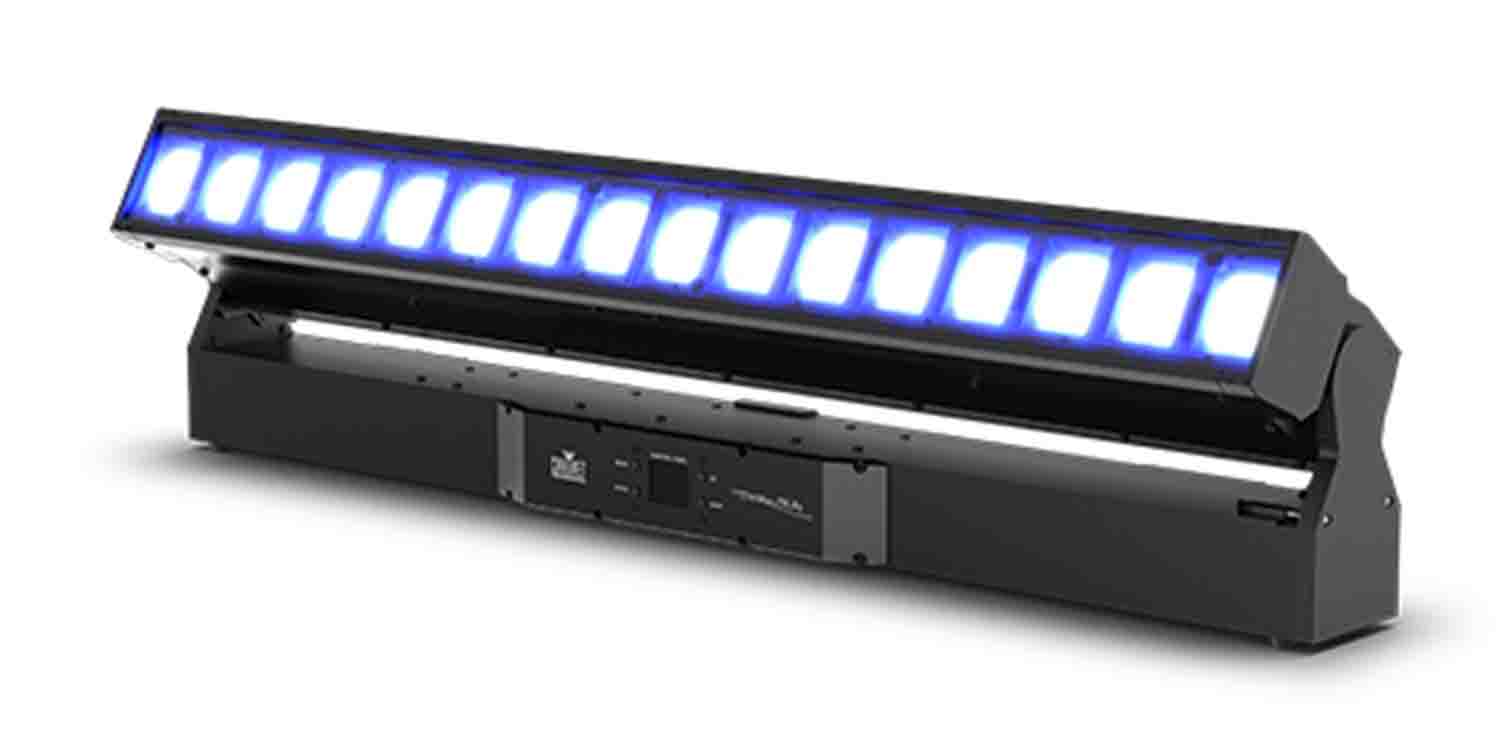

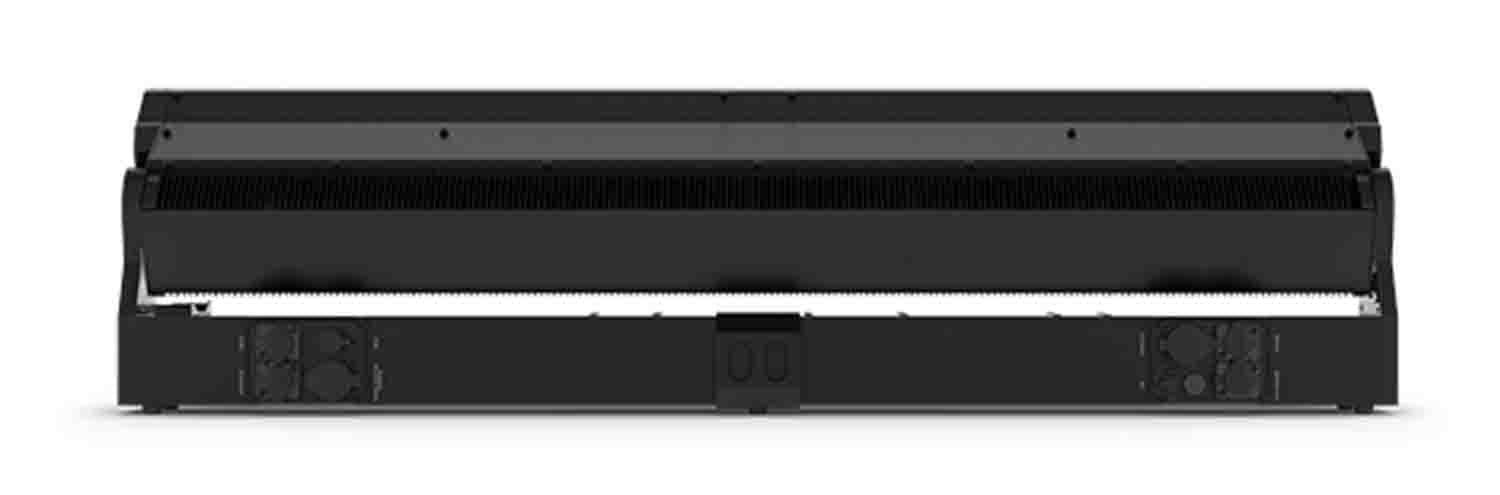

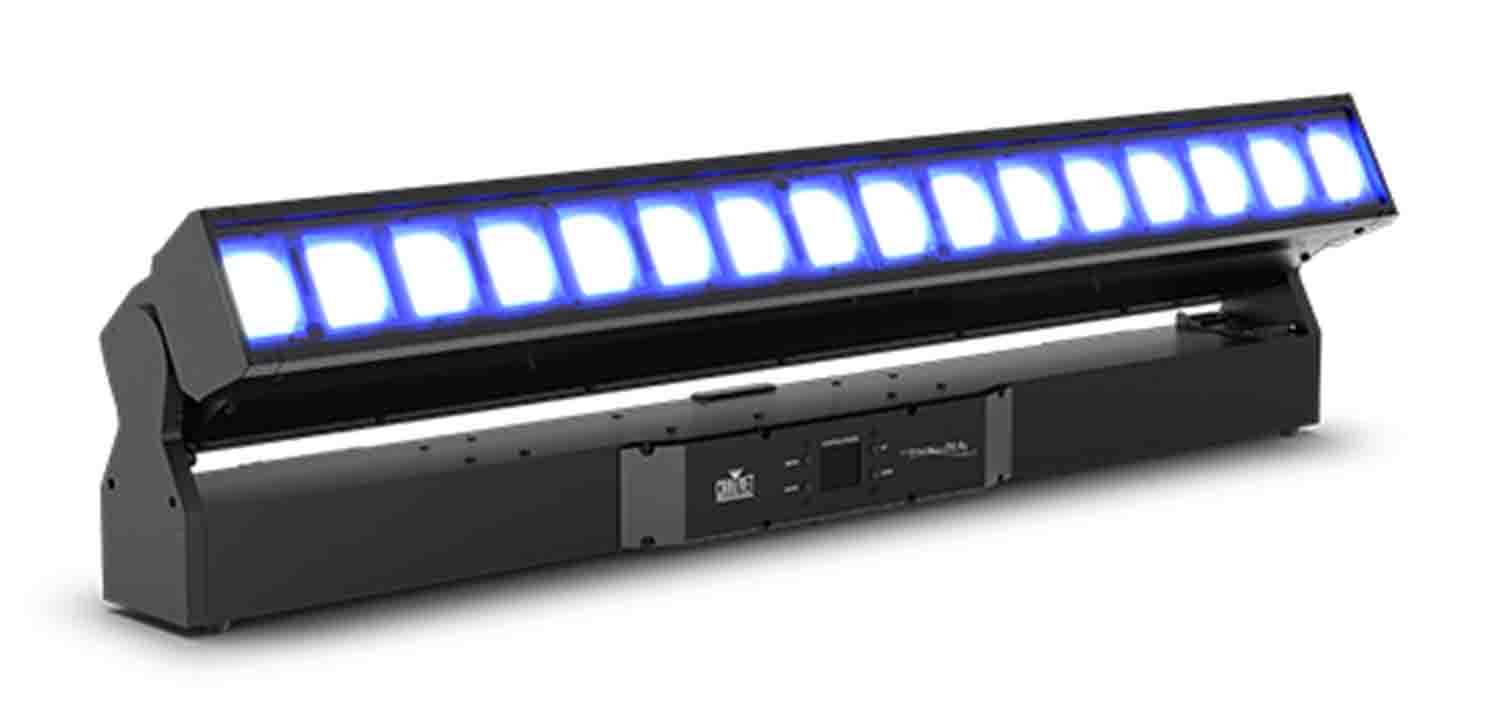

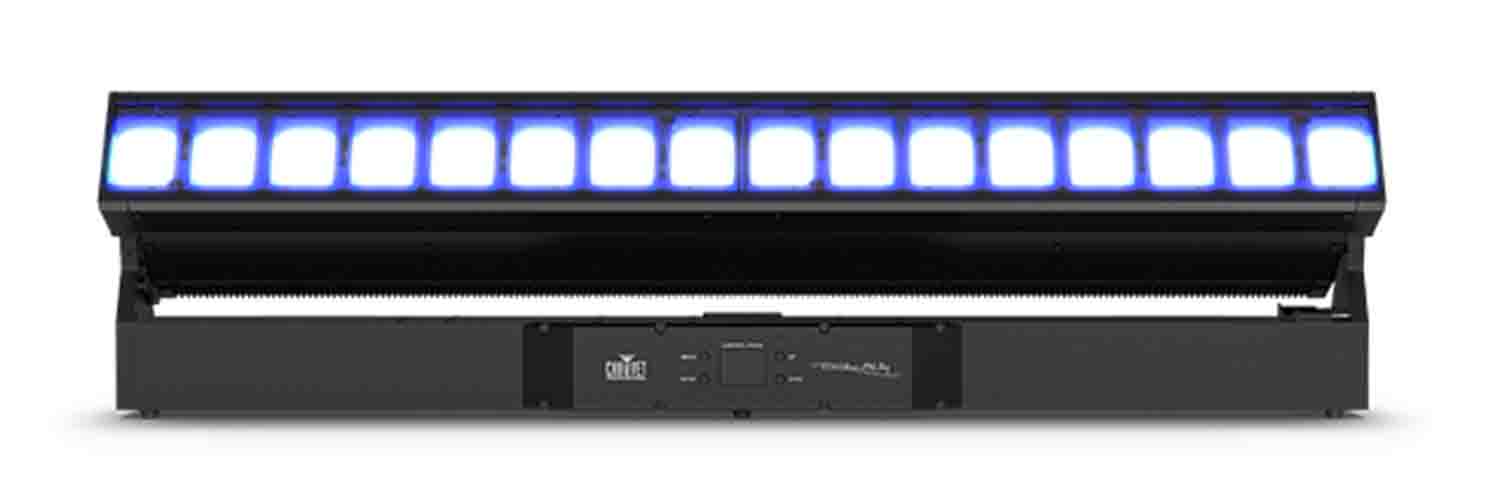

Chauvet Pro COLORado PXL Bar 16 Motorized Tilting Batten

The Chauvet Pro COLORado PXL Bar 16 Motorized Tilting Batten is a motorized, outdoor-ready tilting batten with capabilities to zoom for tight and wide pixel-mappable looks. This bright, moving pixel bar also features seamless edge-to-edge mounting and includes virtual gobo and movement macros with separate foreground and background color control for more design options than ever before. Slotted Omega brackets make it quick and easy to hang the fixture on truss. The COLORado PXL Bar 16 can also be positioned on the ground, which allows for a variety of different light angles. With two zones of control, the power is in your hands and the possibilities are endless!

Product Specifications:

Optical

Light Source: 16 LEDs (quad-color RGBW) 45 W, (3.0 A), 8875 K, 50,000 hours life expectancy.

Color Temperature (Calibrated White): 6122 K

Cri: 61.6

Beam Angle: 5.8° to 30.4°

Beam Angle Single Cell: 4° to 29.9

Field Angle: 8.9° to 42.2°

Field Angle Single Cell: 5.4° to 42.3°

Cutoff Angle: 10° to 47.9°

Dynamic Effects

Tilt: 200°

Tilt Ranges: 60°, 180°, 200°

Dimmer: Electronic

Shutter/Strobe: Electronic

Zoom: Motorized

Construction / Physical

Dimensions: 39.37 x 5.47 x 10.75 in (1000 x 139 x 273 mm)

Weight: 45.6 lb (20.7 kg)

Exterior Color: Black

Connections

Power Connection: Bare end to Seetronic Powerkon IP65

Power Input: Seetronic Powerkon IP65

Power Output: Seetronic Powerkon IP65

Control

Control Protocol: Art-Net, Kling-Net, DMX, RDM, sACN

Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)

Power Linking: 0 unit @ 120 V; 2 units @ 208 V; 2 units @ 230 V

Certifications / Qualifications

Ip Rating: IP65, temporary outdoor/wet use, with pressure equalizing M12 GORE valve

Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

What's Included

COLORado PXL Bar 16

Seetronic Powerkon IP65

2 Omega brackets with mounting hardware

Optional Accessories

Clamps

Neutrik powerCON cables

Neutrik etherCON cables

DMX Cables

Upload_08 software uploader

Flight cases
