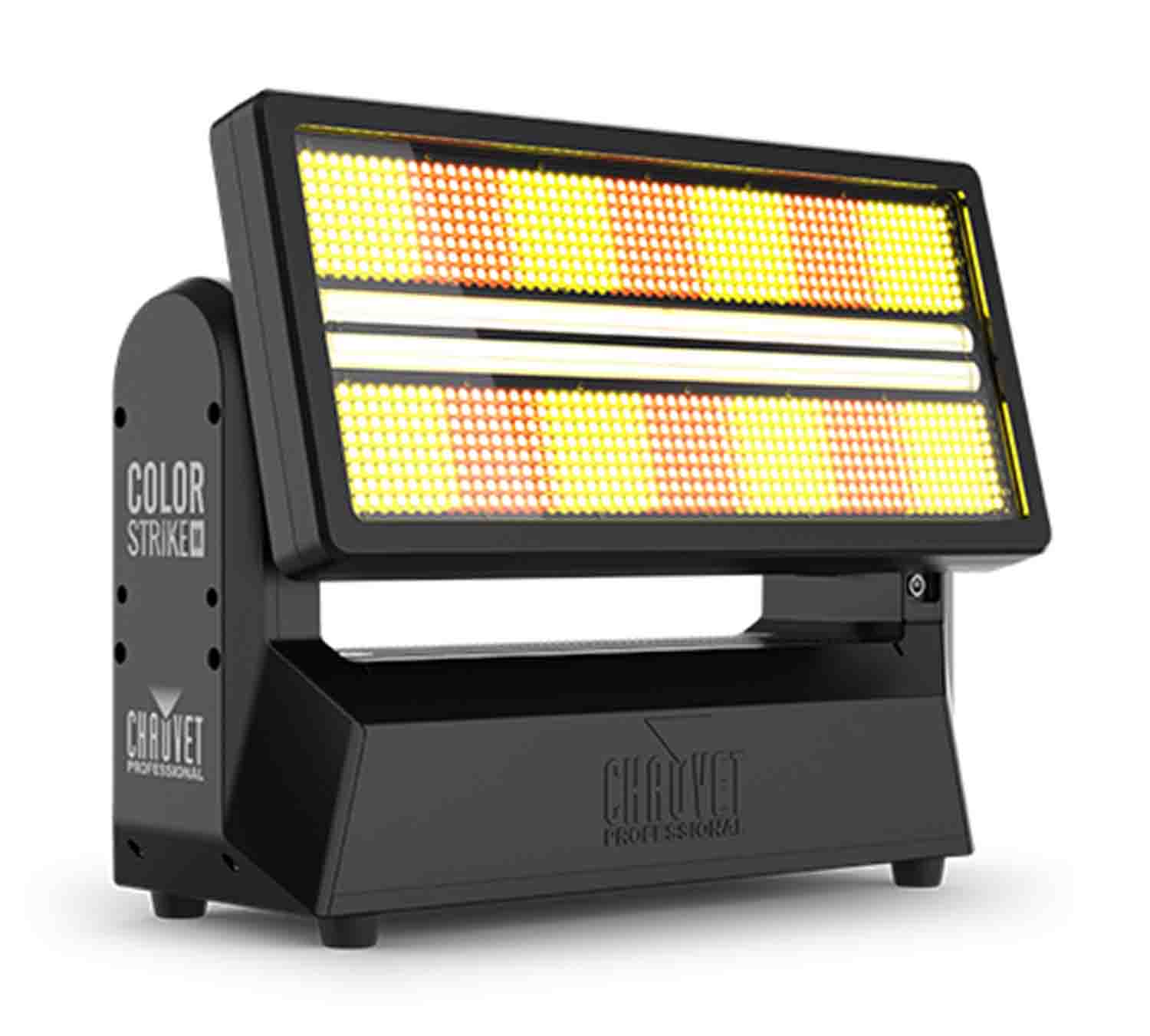

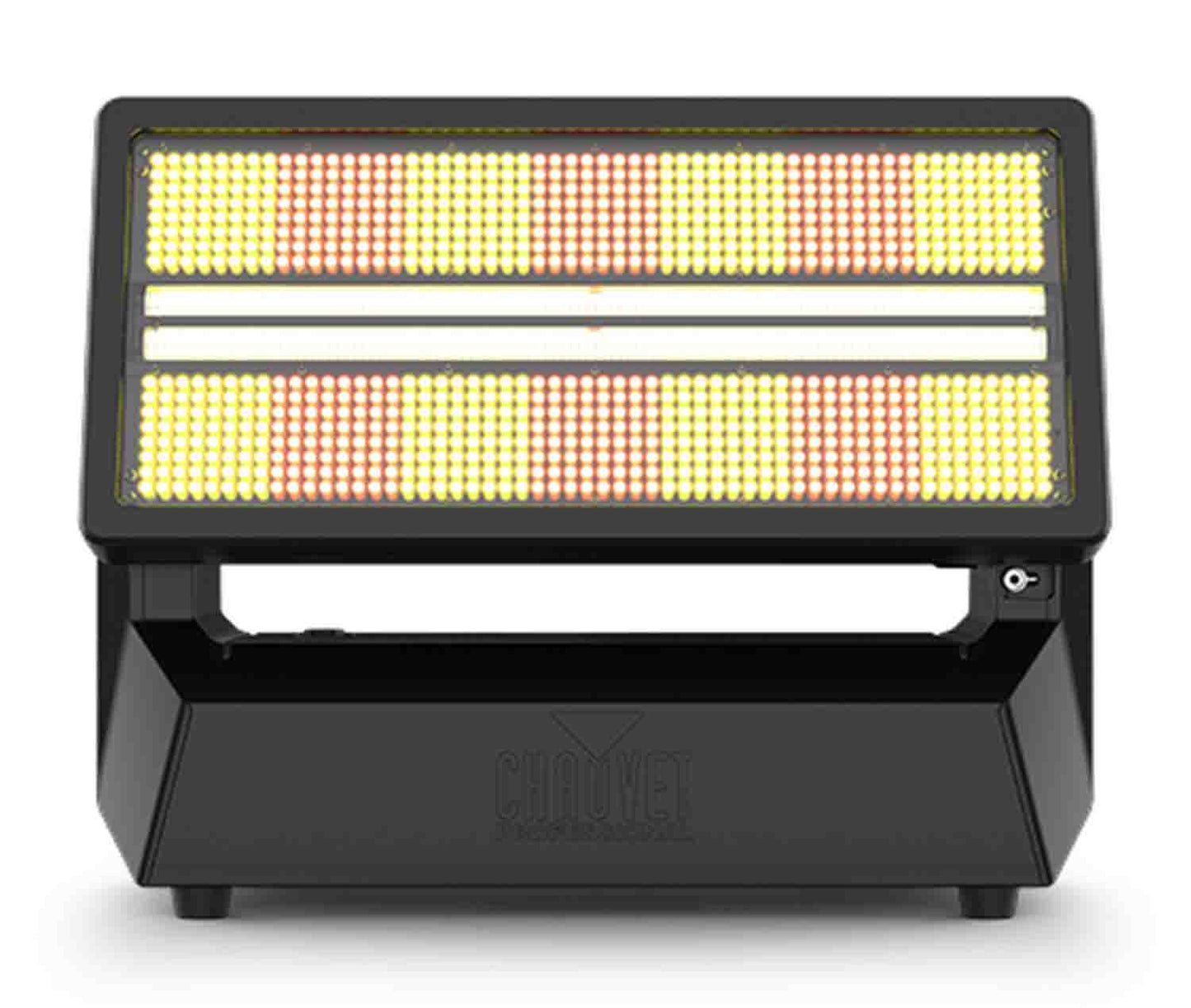

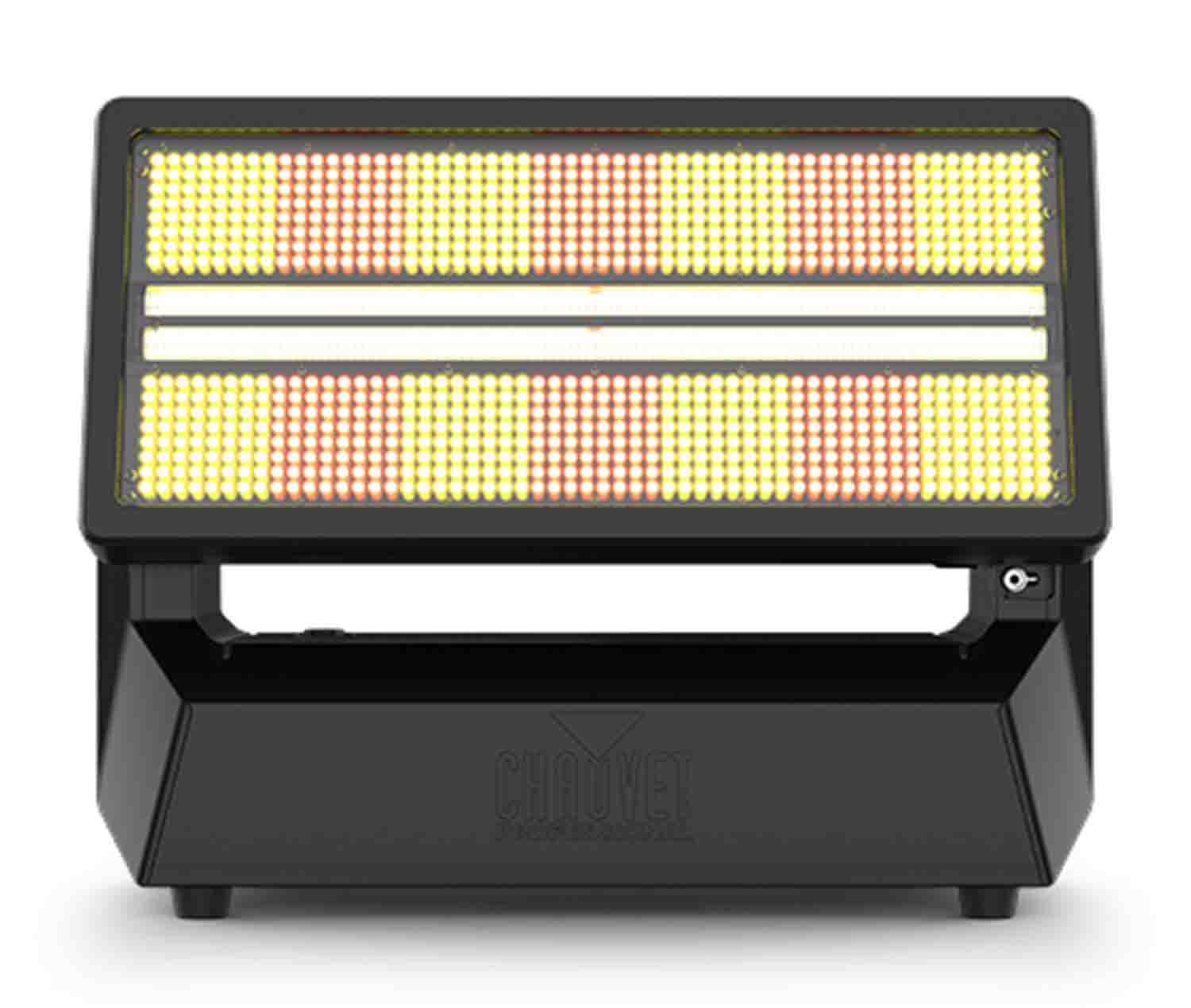

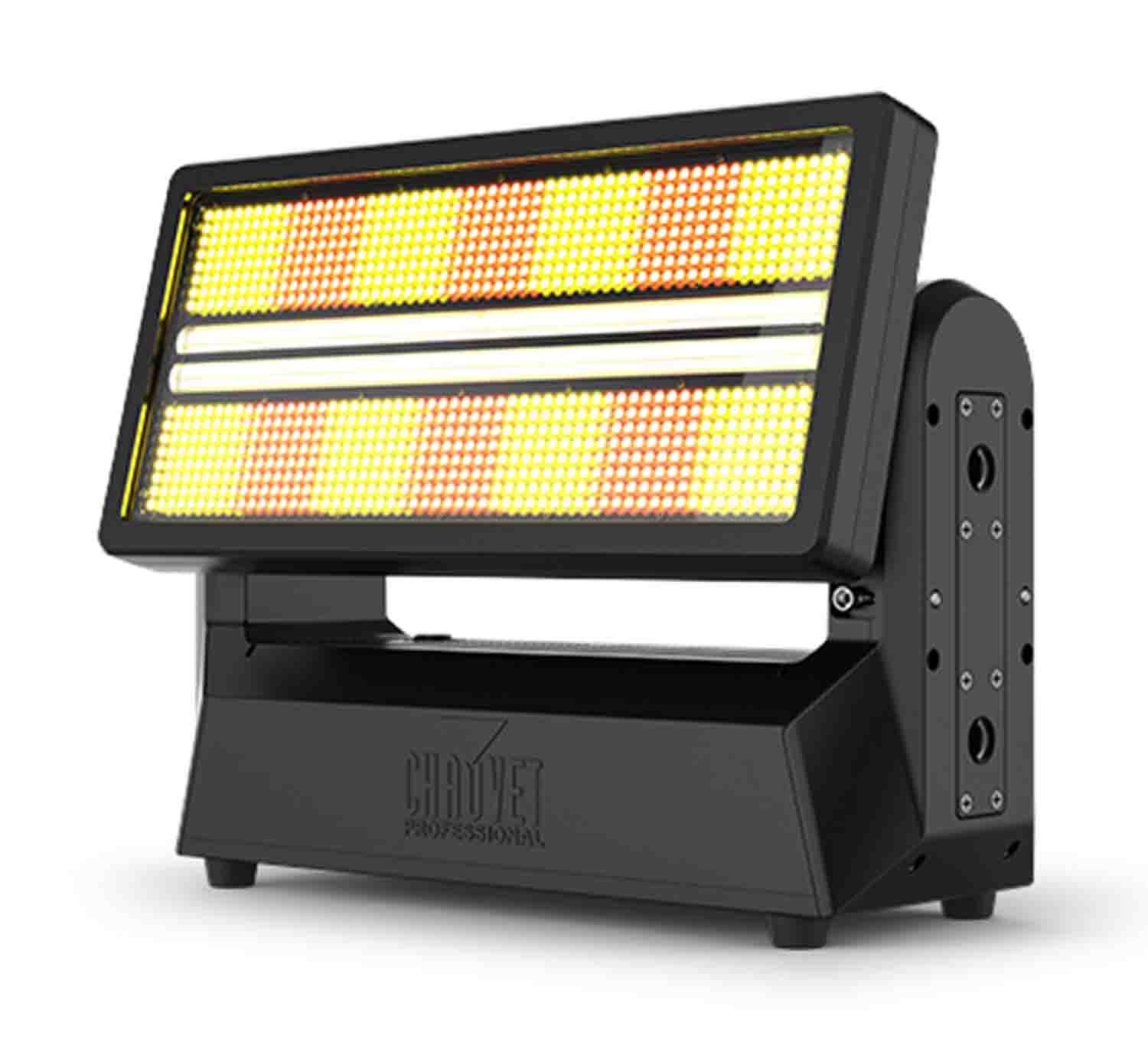

Chauvet Pro Color STRIKE M Led Strobe Fixture

The Chauvet Pro Color STRIKE M Led Strobe Fixture is an IP65 rated motorized strobe/wash with two ultra-bright, white light tube elements surrounded by an electrifying, color-mixing, and pixel-mappable face. This versatile strobe light can double as a wash fixture with 180° tilt range to throw bright saturated color wherever you need. The IP65 casing protects the fixture from any environmental factors or weather and has two omega-bracket attachments so you can mount the fixture horizontally or vertically without any hassle. Multiple programming personalities give you a varying amount of control from simple set ups with a multitude of built-in effects, or wider control options to take advantage of the pixel-mappable zones: 14 in the RGB face and 28 in the two tube elements. Built-in alignment pins insure perfectly straight linear arrays to create massive arrangements. DMX, Art-net, and sACN control. All LEDs feature 16-bit dimming for smooth fades and Pulse Width Modulation for on-camera use.

Product Specifications:

Optical

Light Source: 896 LEDs (tri-color) SMD 5050, 0.784 W, (252 mA), 50,000 hours life expectancy

Light Source: 432 LEDs, (CW) 1.56 W, (696 mA), 5861K, 50,000 hours life expectancy

Color Temperature (At Full): 7757 K

Cri: 90.3

Beam Angle (Combine): 98° x 57°

Beam Angle (Plate): 123°

Beam Angle (Beam): 95° x 50°

Field Angle (Combine): 146° x 122°

Field Angle (Plate): 160°

Field Angle (Beam): 138° x 100°

Lumens (Combined): 71,620

Dynamic Effects

Tilt: 180°

Tilt Ranges: 0° to 180°

Dimmer: Electronic

Shutter/Strobe: Electronic

Strobe Rate: 0 to 30 Hz

Construction / Physical

Dimensions: 16.02 x 6.90 x 12.30 in (407 x 175.4 x 312.5 mm)

Weight: 26.6 lb (12.1 kg)

Exterior Color: Black

Housing Material: Magnesium alloy

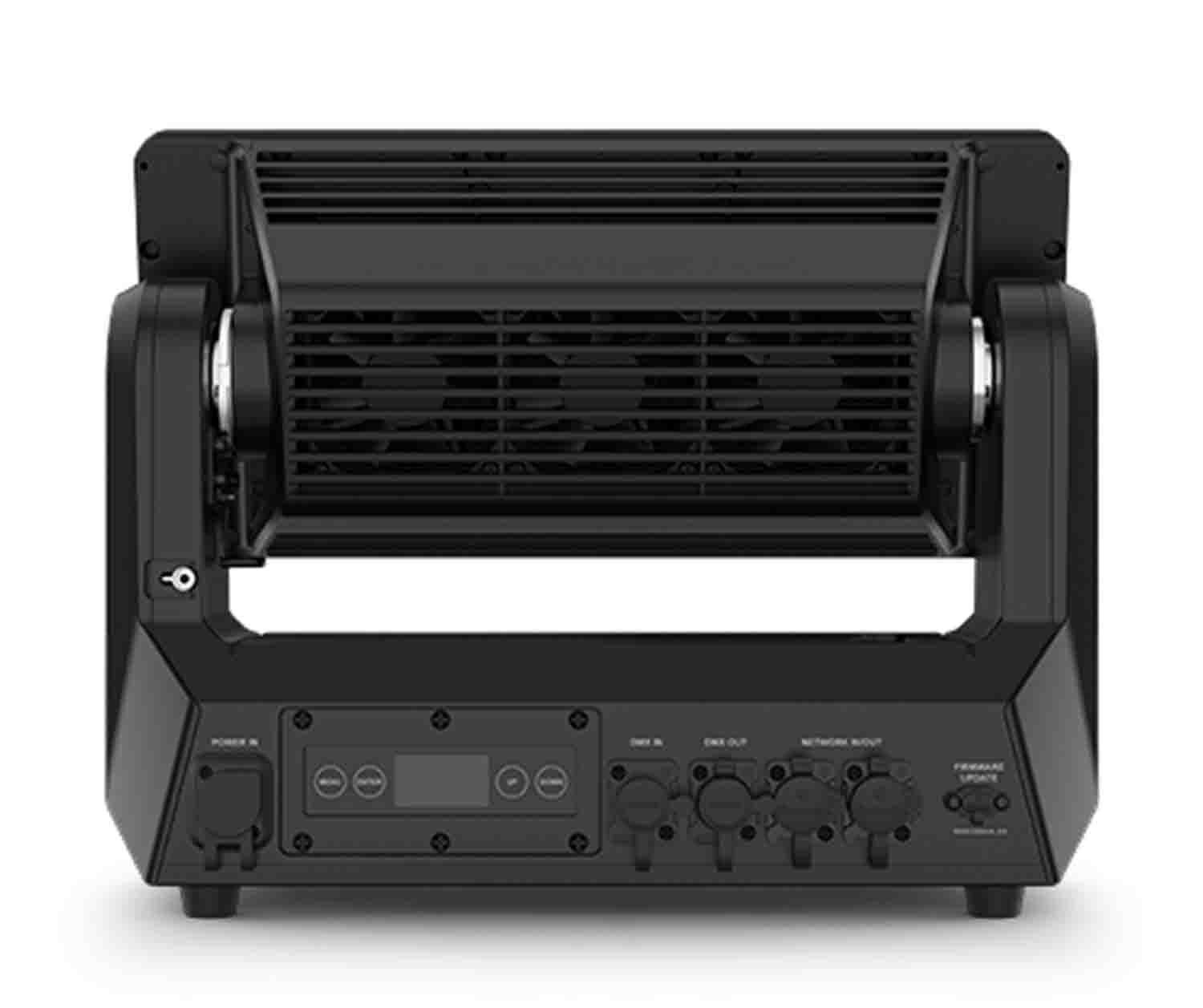

Connections

Power Connection: Edison (Local) plug to Seetronic Powerkon IP65

Power Input: Seetronic Powerkon IP65

Data Connectors: 5-pin IP65 XLR, Seetronic etherCON IP65

Cable Length (Power): 5 ft (1.5 m)

Control

Control Protocol: Art-Net, DMX, RDM, sACN

Dmx Channels: 8, 11, 13, 24, 30, 74 or 97

Art-Net Channels: 8, 11, 13, 24, 30, 74 or 97

Modes/Personalities: 7 personalities (8, 11, 13, 24, 30, 74, 97)

Certifications / Qualifications

CE, MET, FCC,

Ip Rating: IP65, temporary outdoor/wet use, with pressure equalizing M12 GORE valve

Temperature (Ambient): 14 °F to 113 °F (-10 °C to 45 °C)

What's Included

Color STRIKE M

Seetronic Powerkon IP65 power cord

Omega bracket

Optional Accessories

Professional Clamps: CTC-50HC, CTC-50HCN

Safety Cable: SC-07

IP Rated Seetronic Powerkon Extensions

IP Rated DMX cables

IP Rated EtherCon Cables

UPLOAD 03 software uploader
