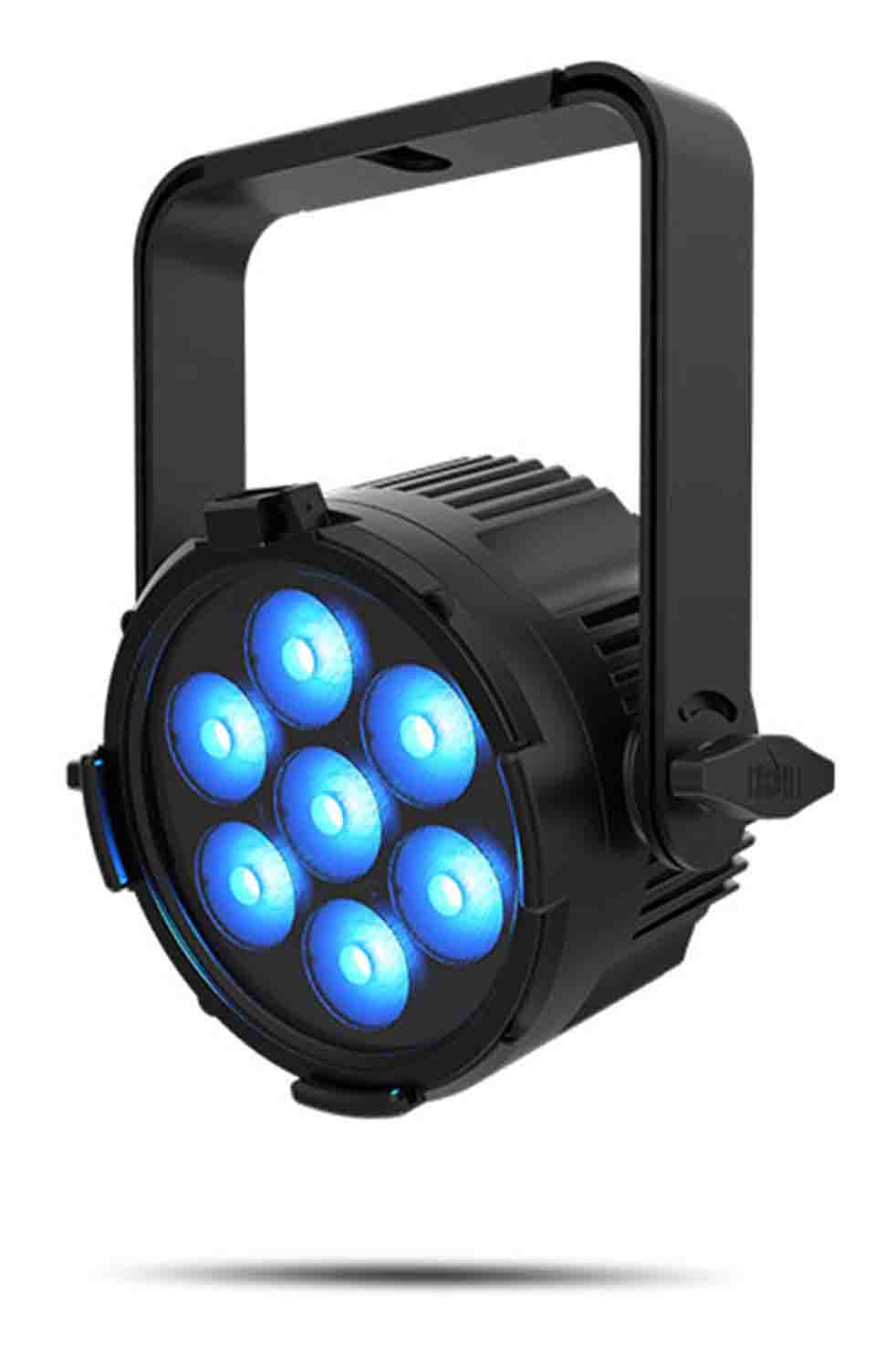

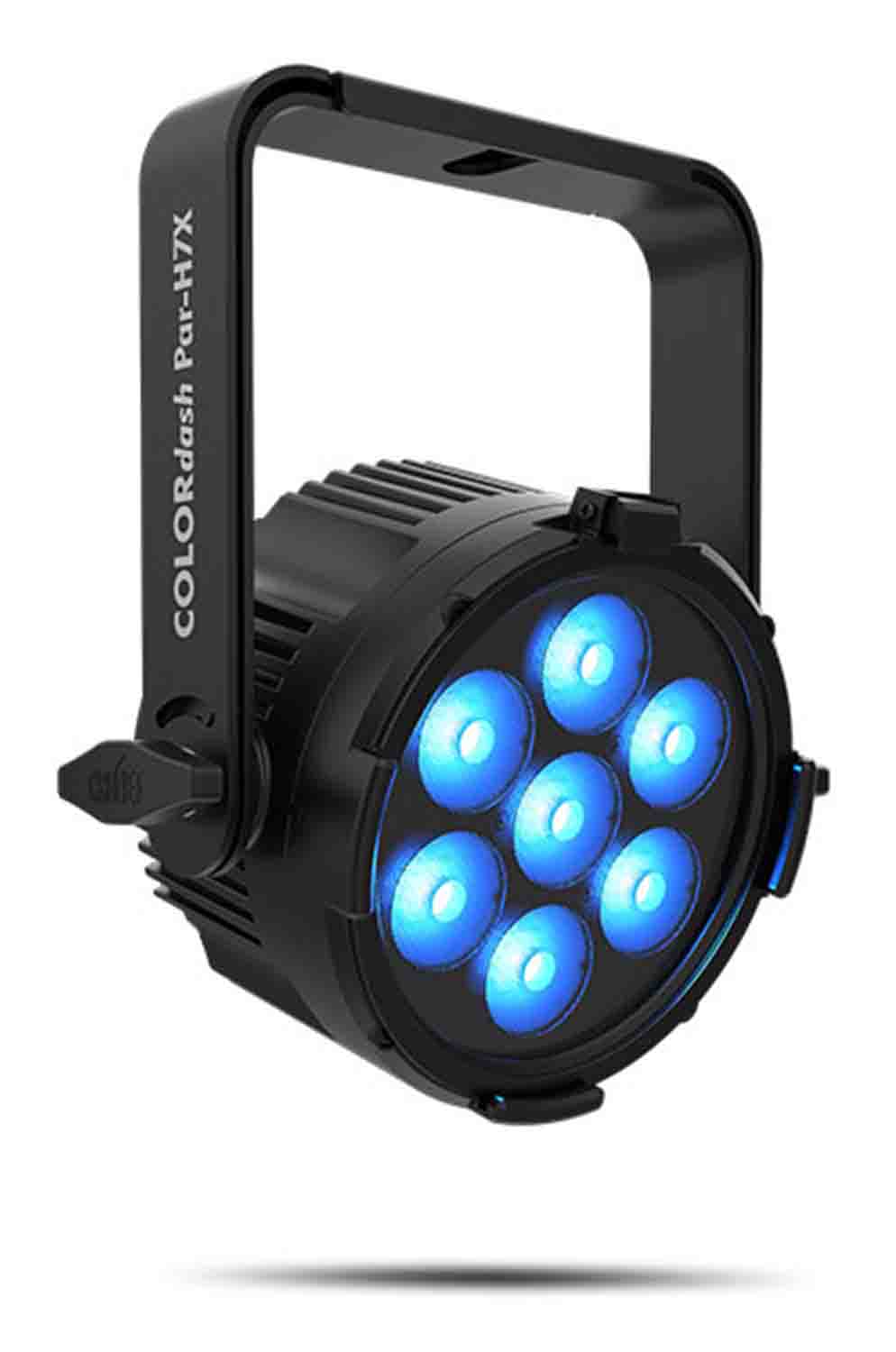

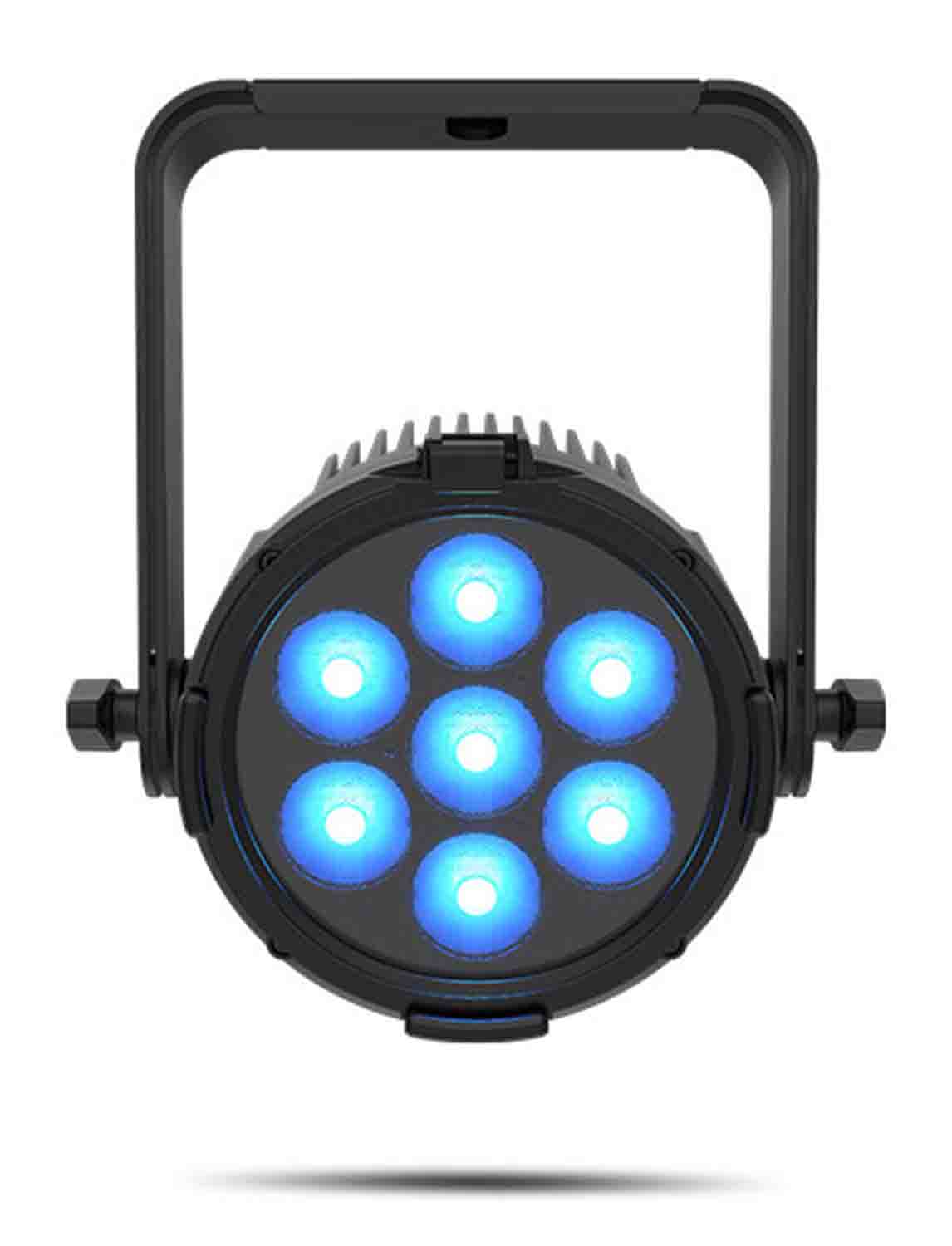

Chauvet Pro COLOR dash PAR H7X LED Wash Light

The Chauvet Pro COLOR dash PAR H7X LED Wash Light is a portable six-pound package that delivers a broad palette of subtle to saturated color with beautiful precision. Flawlessly smooth 16-bit fades with four selectable dimming curves. Flicker-free output with multiple PWM frequencies. Punch up a hot pink, mix a delicate pastel, pick a perfectly calibrated Kelvin color temperature, or trigger intense strobe effects. With RDM to remotely choose its DMX personality and an OLED display to easily read its onboard menu, the COLOR dash PAR H7X is a die-cast workhorse that withstands the rigors of real-world use while offering convenient operation and excellent performance.

Product Specifications:

Optical

Light Source: 7 LEDs (hex-color RGBAW+UV) 84 W, (505 mA), 50,000 hours life expectancy

Color Temperature (Range): 2800 to 10,000 K

Color Temperature (At Full): 14,329 K

Beam Angle: 22.7°

Field Angle: 37.6°

Illuminance (Total): 522 lux @ 5 m

Selectable PWM: 600 Hz, 1.2K Hz, 2K Hz, 4K Hz, 6K Hz, 25K Hz

Dynamic Effects

Dimmer: Electronic

Shutter/Strobe: Electronic

Strobe Rate: 0 to 20 Hz

Standalone Color Mixing: Yes

Color Temperature Presets: Yes

Dim Modes: 4

Built-In Automated Programs: Yes

Customizable Programs: No

Construction / Physical

Dimensions: 10.16 x 9.45 x 4.57 in (258 x 240 x 116 mm)

Weight: 6 lb (2.7 kg)

Exterior Color: Black

Housing Material: Aluminum alloy, Aluminum die-cast

Accessory Holder/Gel Frame Size: 6.5 in (165 mm)

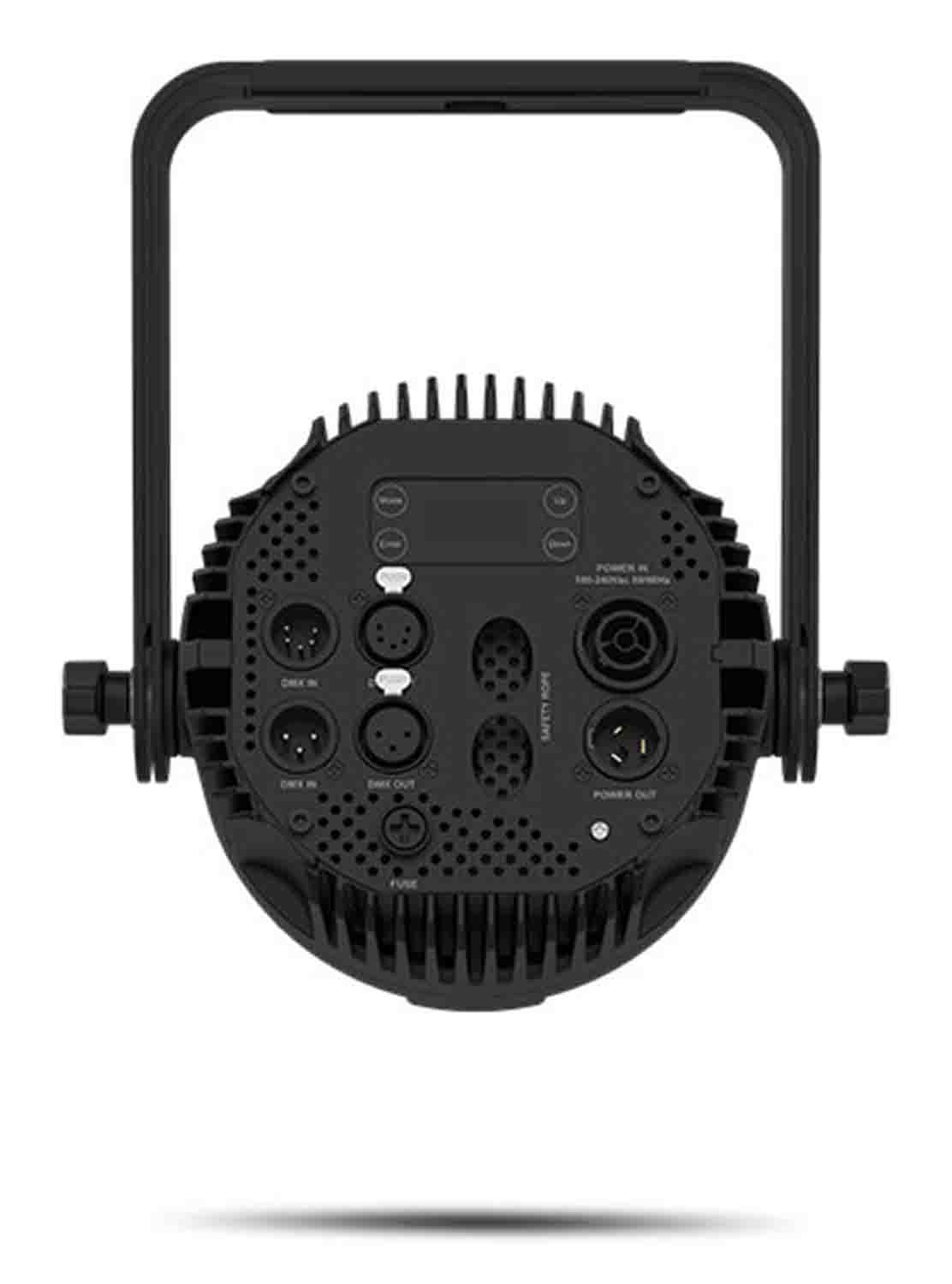

Connections

Power Connection: Edison (Local) plug to Seetronic Powerkon IP65

Power Output: Seetronic Powerkon IP65

Data Connectors: 3- and 5-pin XLR, 3- and 5-pin IP65 XLR

Cable Length (Power): 5 ft (1.5 m)

Control

Control Protocol: DMX, RDM

Dmx Channels: 6ch ,8ch ,9ch ,13ch, or 14ch

Modes/Personalities: 5 personalities (6ch ,8ch ,9ch ,13ch, or 14ch)

Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)

Power Linking: 20 units @ 120 V; 34 units @ 208 V; 38 units @ 230 V

Power and Current: 70 W, .592 A @ 120 V, 60 Hz

Power and Current: 67 W, .344 A @ 208 V, 60 Hz

Power and Current: 67 W, .312 A @ 230 V, 50 Hz

Certifications / Qualifications

CE, MET, FCC, UKCA, FCC

Ip Rating: IP20, dry location

Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

WHAT'S INCLUDED

color dash Par H7X

Seetronic powerkon IP65 power cord

Gel frame holder

Gel frame

OPTIONAL ACCESSORIES

Professional Clamps: CTC-50HC, CTC-50HCN

Neutrik powerCON cables

3- or 5-pin DMX Cables
