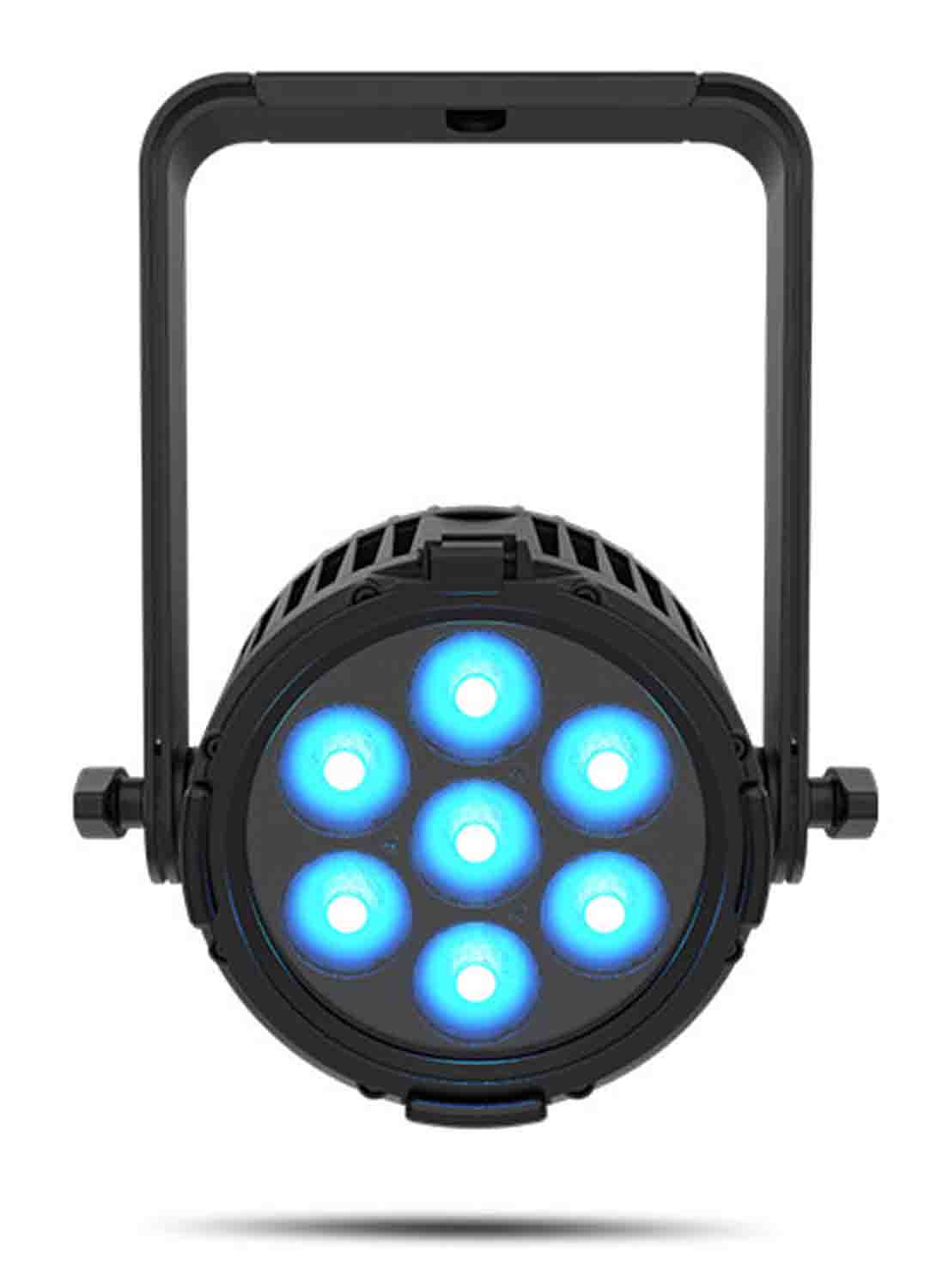

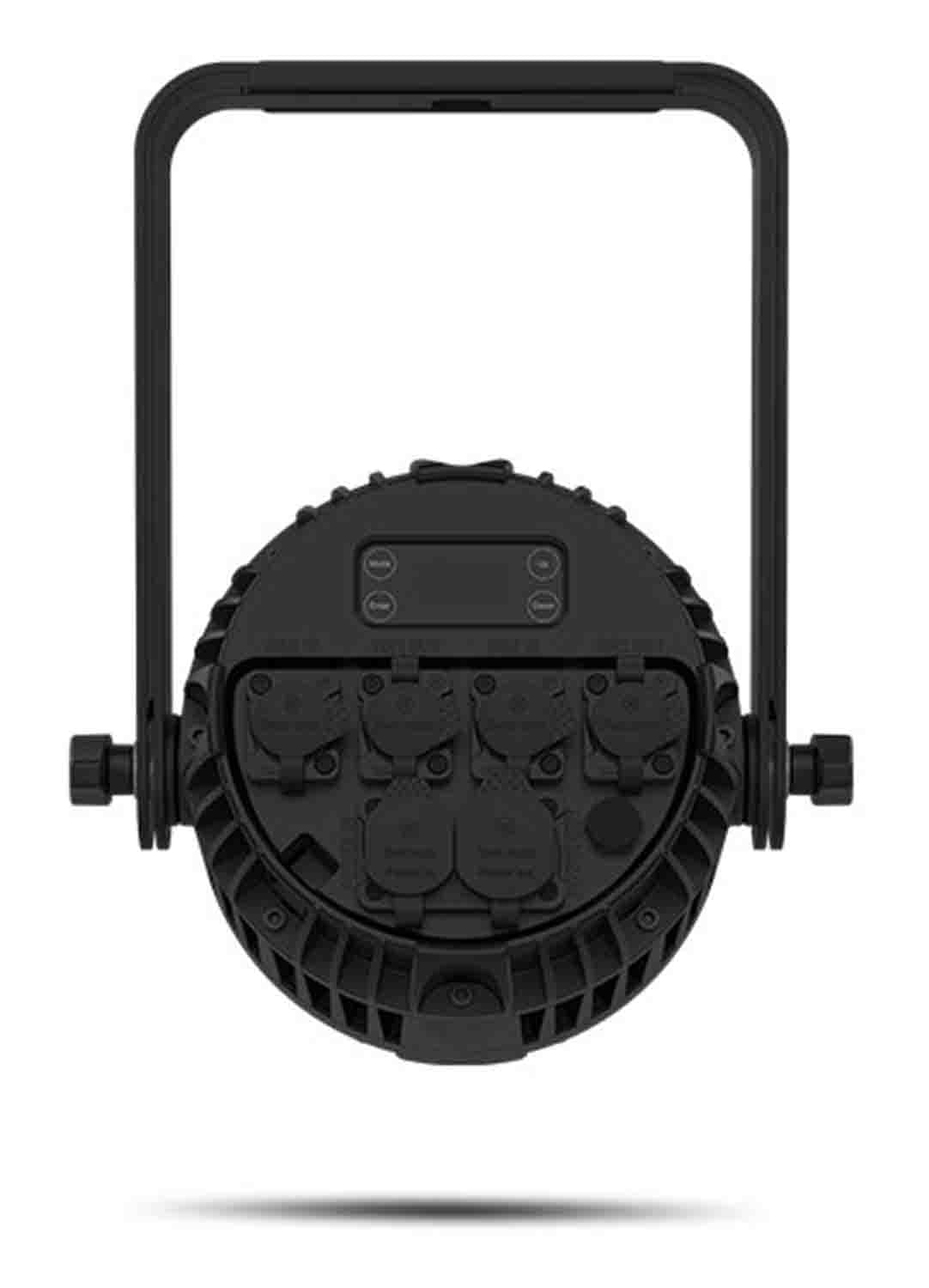

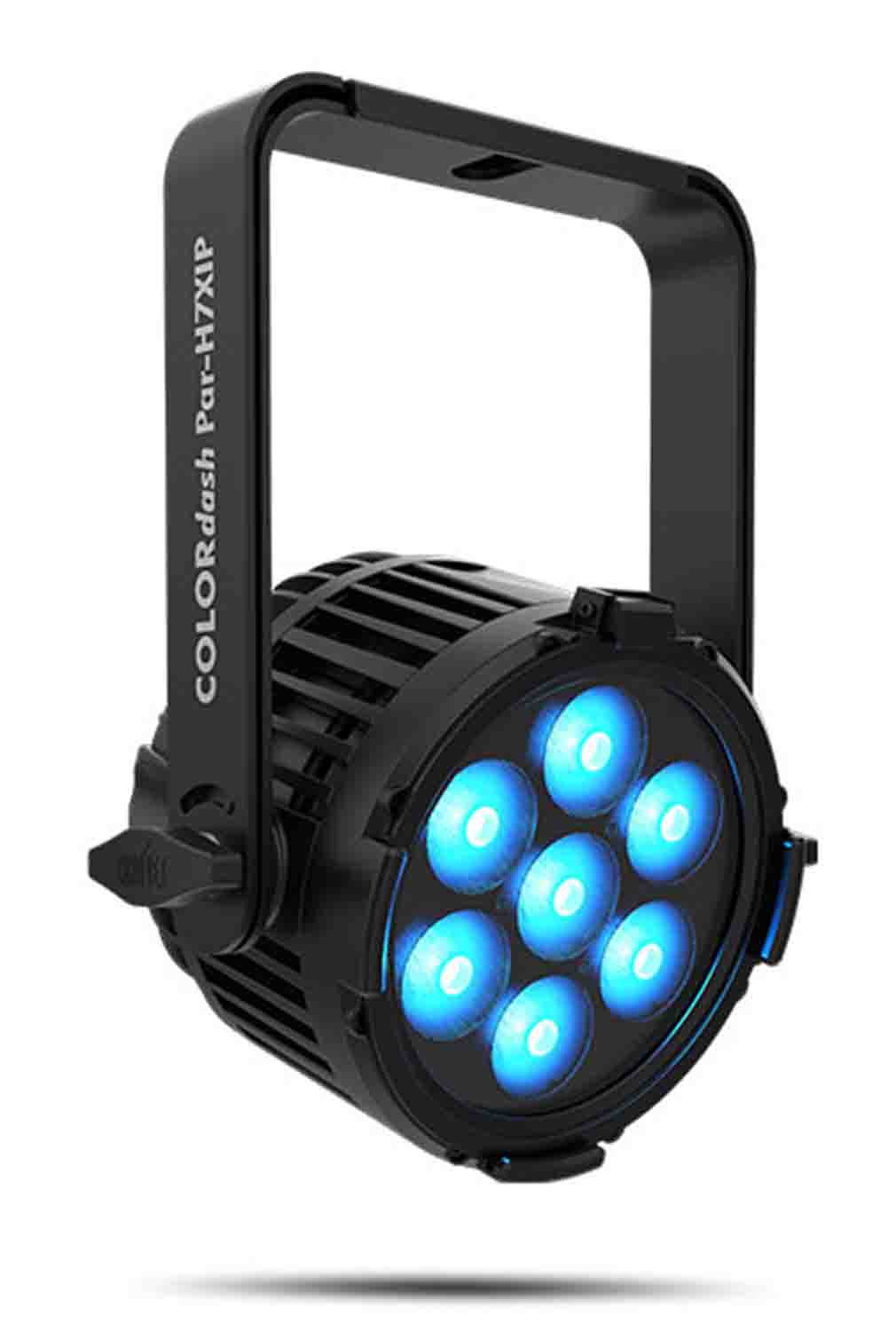

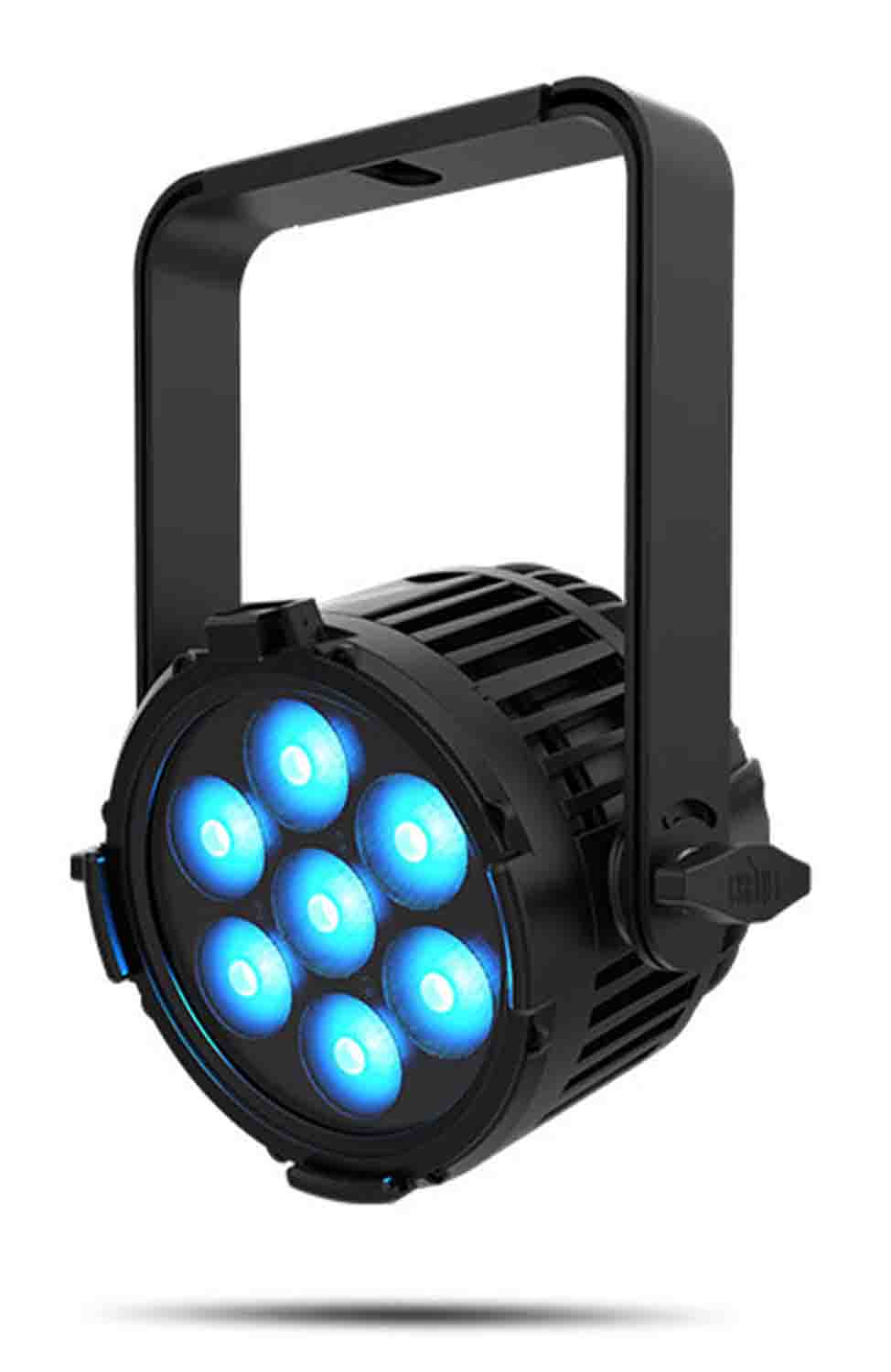

Chauvet Pro COLOR dash Par H7X IP Adjustable LED Wash Light

The Chauvet Pro COLOR dash Par H7X IP Adjustable LED Wash Light efficiently delivers a broad palette of subtle to saturated color with beautiful precision, weighing in under 8 lbs while delivering over 2,600 lumens of output. Flawlessly smooth 16-bit fades with four selectable dimming curves. Flicker-free output with multiple PWM frequencies. Punch up a hot pink, mix a delicate pastel, pick a perfectly calibrated Kelvin color temperature, or trigger intense strobe effects. With RDM to remotely choose its DMX personality and an OLED display to easily read its onboard menu, the COLOR dash PAR H7X IP offers convenient operation and excellent performance as an IP65-rated all-weather die-cast workhorse at home in any environment.

Product Specifications:

Optical

Light Source: 7 LEDs (hex-color RGBAW+UV) 84 W, (513 mA), 50,000 hours life expectancy

Color Temperature (range): 2800 to 10,000 K

Color Temperature (at full): 11,477 K

Beam Angle: 23°

Field Angle: 37.9°

Lumens: 2664

Illuminance (total): 583 lux @ 5 m

Selectable PWM: 600, 1.2k, 2k, 4k, 6k, 25k Hz

Dynamic Effects

Dimmer: Electronic

Shutter/Strobe: Electronic

Strobe Rate: 0 to 20 Hz

Standalone Color Mixing: Yes

Color Temperature Presets: Yes

Dim Modes: 4

Construction / Physical

Dimensions: 6.7 x 9.6 x 9.8 in (170 x 243.4 x 248.1 mm)

Weight: 7.4 lbs (3.4 kg)

Exterior Color: Black

Housing Material: Aluminum alloy, Aluminum die-cast

CONNECTIONS

Power Connection: Edison (Local) plug to Seetronic Powercon IP65

Power Output: Seetronic Powercon IP65

Data Connectors: 3- and 5-pin XLR, 3- and 5-pin IP65 XLR

Cable Length (power): 5 ft (1.5 m)

Control

Control Protocol: DMX, RDM

DMX Channels: 6ch ,8ch ,9ch ,13ch, or 14ch

Modes/Personalities: 5 personalities (6ch ,8ch ,9ch ,13ch, or 14ch

Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)

Power Linking: 19 units @ 120 V; 34 units @ 208 V; 37 units @ 230 V

Power and Current: 71 W, .604 A @ 120 V, 60 Hz

Power and Current: 69 W, .352 A @ 208 V, 60 Hz

Power and Current: 68 W, .318 A @ 230 V, 50 Hz

Certifications / Qualifications

CE, MET, FCC, UKCA

IP Rating: IP65, temporary outdoor/wet use

Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

What's Included

Color dash Par H7XIP

Seetronic powercon IP65 power cord

Gel frame holder (6.5 in /165 mm)

Gel frame

Optional Accessories

Professional Clamps: CTC-50HC, CTC-50HCN

Seetronic Powercon power linking cables

5-pin IP or Non-IP DMX Cables
