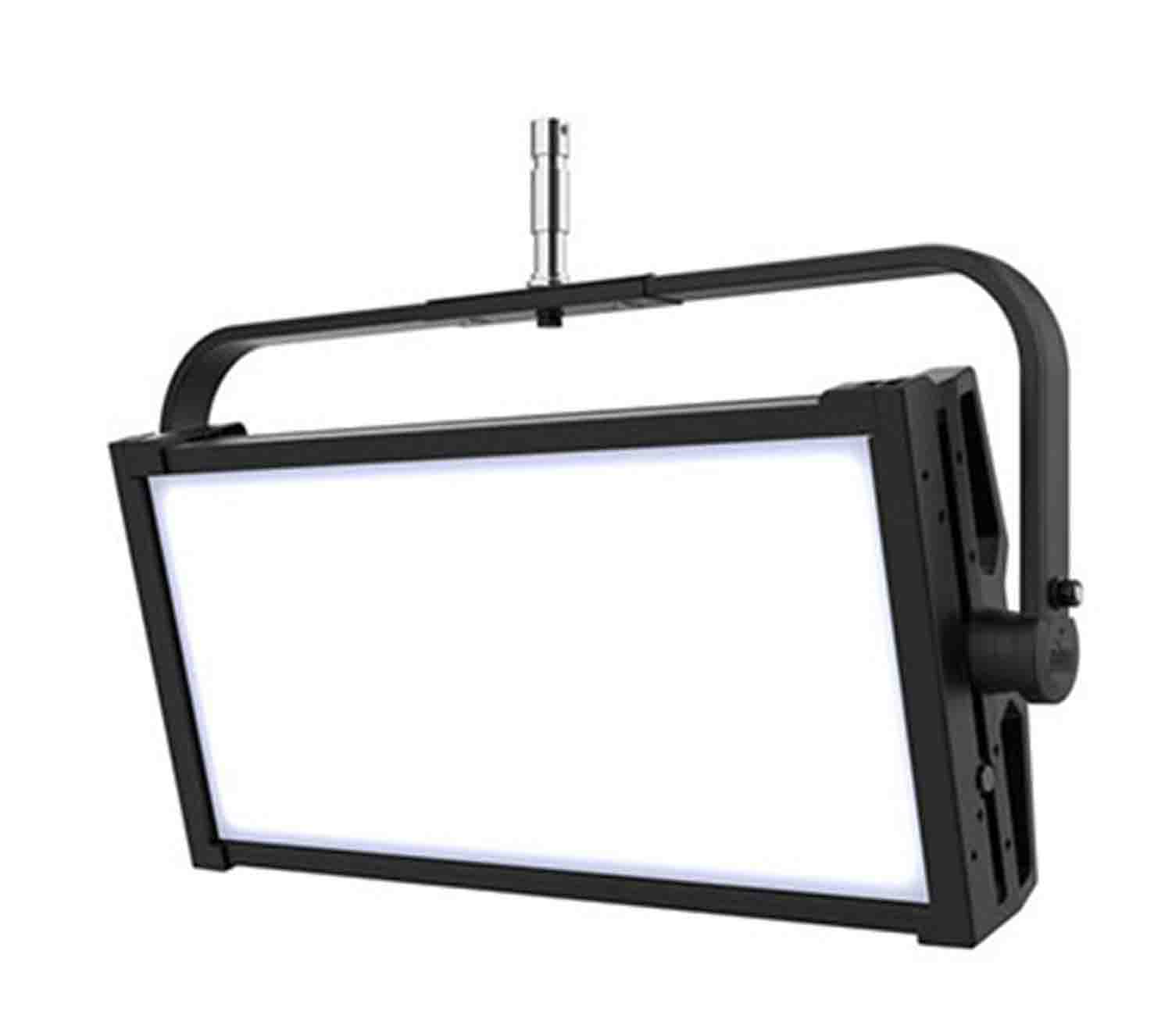

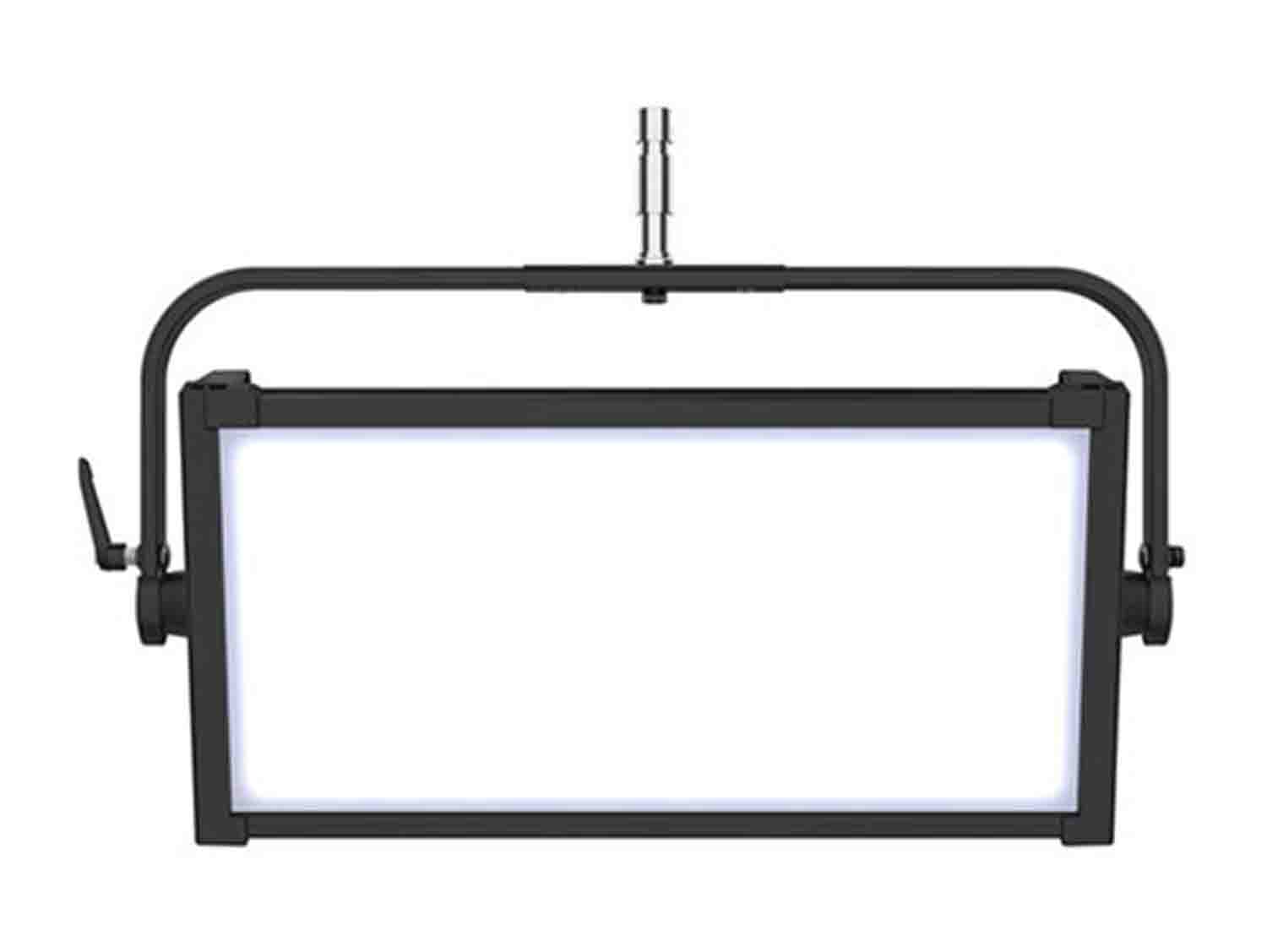

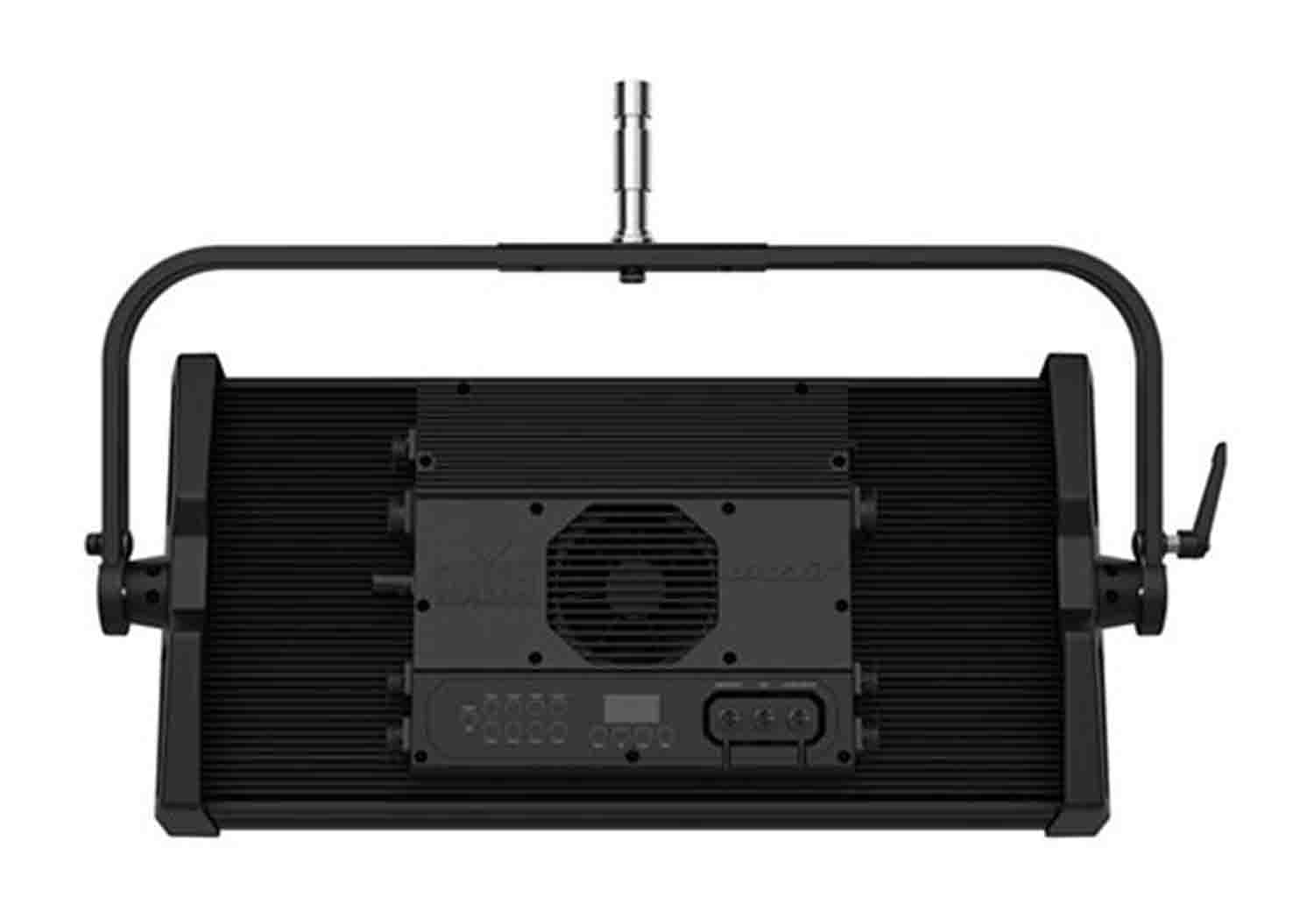

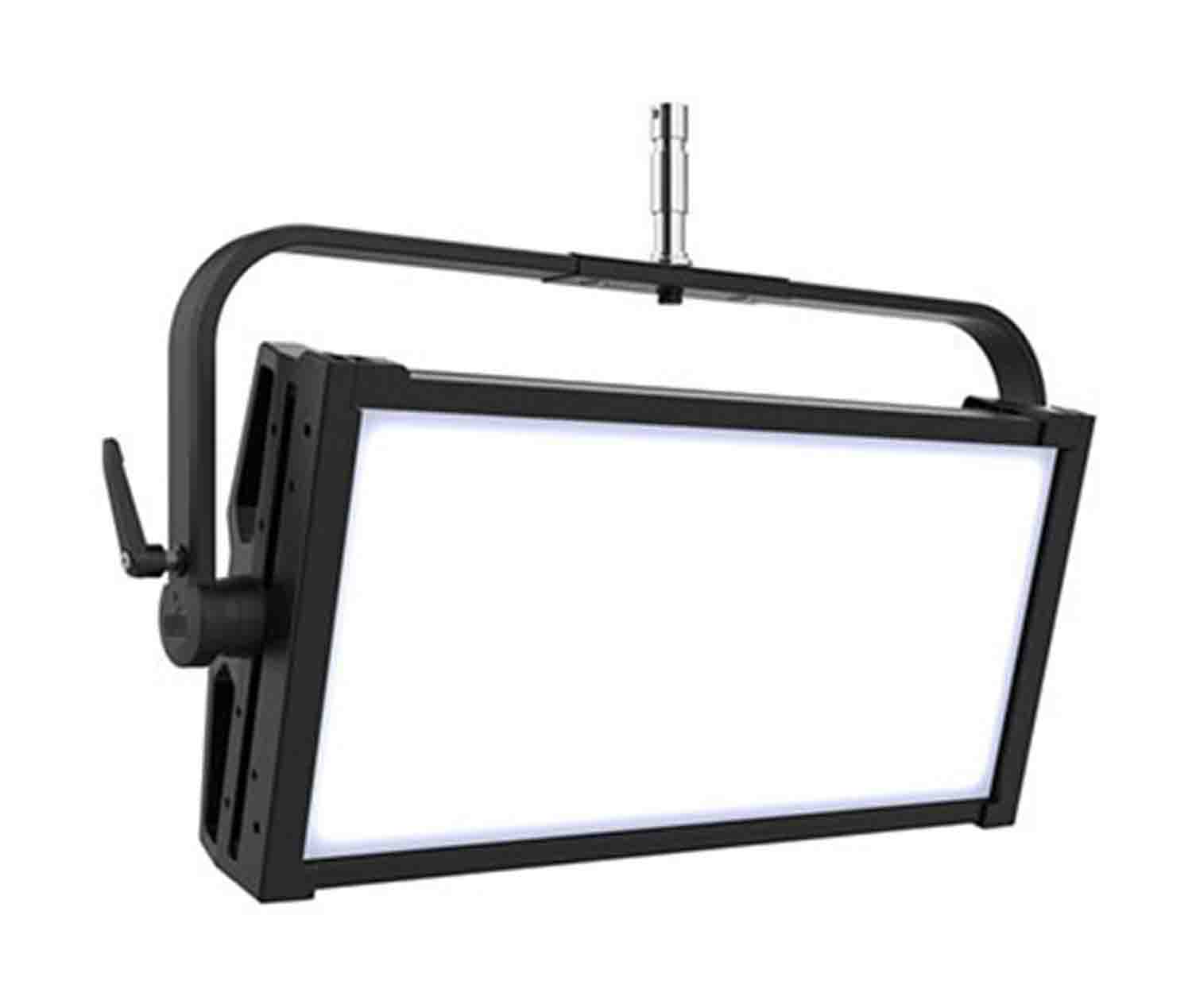

Chauvet On Air Pro IP Panel 2 Full-Spectrum LED 2x1 Format Soft Light Panel Style Fixture

The Chauvet On Air Pro IP Panel 2 Full-Spectrum LED 2x1 Format Soft Light Panel Style Fixture is a rugged IP65, full-spectrum LED soft light with a 1×2 format that is capable of facing all of the elements, outdoors or in. Ready to go on-location for any broadcast setting, on Air IP Panel 2 features a superior quality of white light with high CRI/ TLC and TM-30 scores; a smooth 16-bit dimming curve and +/- green adjustment, an emulated redshift, and the ability to produce a pop of color to achieve the exact look you are aiming to create along with built-in, customizable effects accessible from the onboard control menu. Easily switch mounting options from Jr Pin to Omega Bracket on a rugged build, designed with a drop-in slot to ensure ease of use when changing accessories. PWM, DMX, RDM, CRMX, Art-Net, sACN, and an onboard control option ensure camera-ready use. An optional 28 VDC input via 3-pin XLR powers the fixture from an external battery pack to add increased flexibility for all of your remote needs.

Product Specifications:

Optical

Light Source: 448 LEDs (tri-color RGB) 1.4 W, (150 mA), 50,000 hours life expectancy.

Light Source: 448 LEDs (WW) 0.50 W, (150 mA), 50,000 hours life expectancy.

Color Temperature (range): 2800 to 8000 K Color Temperature (range): 2800 to 8000 K Color Temperature (at full): 7220 KCRI: 95Beam Angle: 100.2°Field Angle: 157°Lumens: 22,508

Illuminance: 349 lux @ 5

selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz

Dynamic Effects

Dimmer: Electronic

Shutter/Strobe: Electronic

Strobe Rate: 0 to 30 Hz Standalone

Color Mixing: Yes

Color Temperature Presets: Yes

Dim Modes: 4

Dim Curves: 4Built-in Automated Programs: Yes

Construction / Physical

Dimensions: 33.4 x 5.4 x 21.6 in (849 x 139 x 553 mm)

Weight: 37.9 lb (17.1 kg)

Exterior Color: Black Housing

Material: Aluminum alloy

Connections

Power Connection: Edison (Local) plug to Seetronic PowerCON IP65

Power Input: Seetronic PowerCON IP65

Power Output: Seetronic PowerCON IP65

Power Input: 28 VDC, 3-pin IP65 XLR

Data Connectors: 5-pin IP65 XLR, Seetronic etherCON® Compatible

Cable Length (power): 5 ft (1.5 m)

Cable Length (power): 5 ft (1.5 m)

Software Connection: USB

Control

Control Protocol: Art-Net, sACN, DMX, CRMX, RDMDMX

Channels: 1, 3, 4, 5, 6, 8, 11, 15, 16, 18, 23 or 32

Art-Net Channels: 1, 3, 4, 5, 6, 8, 11, 15, 16, 18, 23 or 32

Modes/Personalities: 12 personalities (1, 3, 4, 5, 6, 8, 11, 15, 16, 18, 23, 32)

Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)

Power Linking: 3 units @ 100 V; 4 units @ 120 V; 7 units @ 208 V; 8 units @ 230 V, 8 units @ 240 V Power and Current: 372 W, 3.104 A @ 120 V, 60 Hz

Power and Current: 371 W, 1.774 A @ 208 V, 60 Hz

Power and Current: 370 W, 1.608 A @ 230 V, 50 Hz

Certifications / Qualifications

CE, MET, FCC,

IP Rating: IP65, temporary outdoor use, with pressure equalizing M12 GORE valve

Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

What's Included

On Air Panel 2 IP

Seetronic PowerCON IP65

Omega bracket with mounting hardware

Optional Accessories

on Air IP Panel 2 Barndoor on Air IP Panel 2 60° Honeycomb

on Air Panel 2 IP Diffusion Filter Pack

on Air IP Panel 2 Intensifier

on Air IP Panel 2 Pole Yoke

Professional Clamps: CTC-50HC, CTC-50HCN

Seetronic PowerCON power linking cables

5-pin DMX Cables

Ethernet Cables
