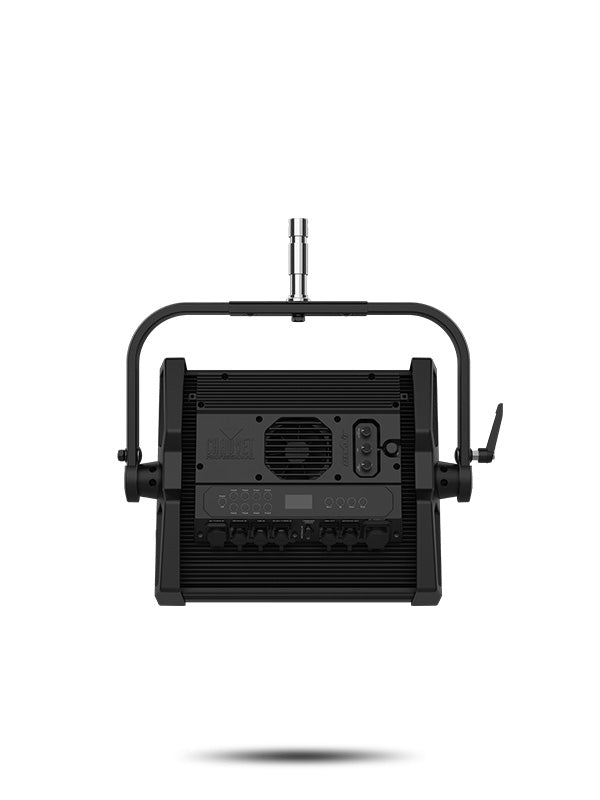

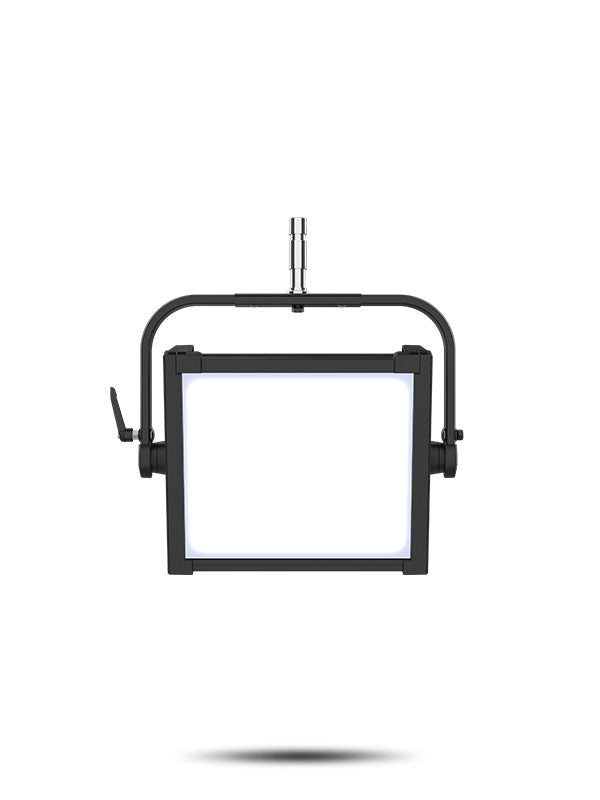

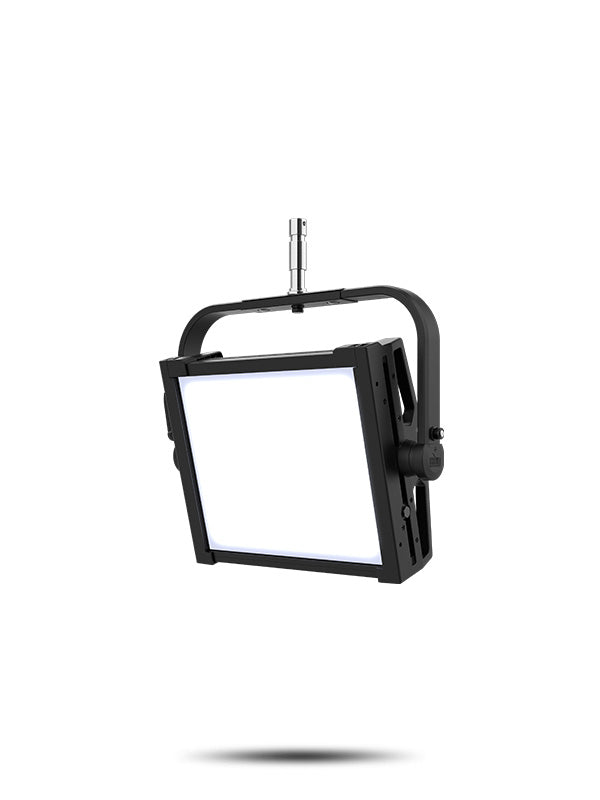

Chauvet On Air IP Panel 1 Full Spectrum LED Soft Light

The Chauvet On Air IP Panel 1 Full Spectrum LED Soft Light is a rugged IP65, full-spectrum LED soft light with a 1×1 format that is capable of facing all of the elements, outdoors or in. Ready to go on-location for any broadcast setting, on Air IP Panel 1 features a superior quality of white light with high CRI/ TLC and TM-30 scores; a smooth 16-bit dimming curve and +/- green adjustment, an emulated redshift, and the ability to produce a pop of color to achieve the exact look you are aiming to create along with built-in, customizable effects accessible from the onboard control menu. Easily switch mounting options from Jr Pin to Omega Bracket on a rugged build, designed with a drop-in slot to ensure ease of use when changing accessories. PWM, DMX, RDM, CRMX, Art-Net, sACN, and an onboard control option ensure camera-ready use. An optional 28 VDC input via 3-pin XLR powers the fixture from an external battery pack to add increased flexibility for all of your remote needs.

Product Specifications:

Optical

Light Source: 224 Leds (Tri-Color Rgb) 1.4 W, (150 Ma), 50,000 Hours Life Expectancy.

Light Source: 224 Leds (Ww) 0.50 W, (150 Ma), 50,000 Hours Life Expectancy.

Color Temperature (Range): 2800 To 8000 K

Color Temperature (At Full): 7566 K

Cri: 95beam Angle: 99.3°

Field Angle: 154°

Lumens: 10,092

Illuminance: 165 Lux @ 5 M

Selectable Pwm: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz

Dynamic Effects

Dimmer: Electronic Shutter/Strobe

Electronic Strobe Rate: 0 To 28 Hz

Standalone Color Mixing: Yes

Color Temperature Presets: Yes

Dim Modes: 4dim

Curves: 4built-In

Automated Programs: Yes

Construction / Physical

Dimensions: 22 X 5.74 X 21.81 In (559 X 146 X 554 Mm) Weight: 28 Lb (12.7 Kg)

Exterior Color: Black

Housing Material: Aluminum Alloy

Connections

Power Connection: Edison (Local) Plug to Seetronic

PowerCON Ip65power Input: Seetronic PowerCON Ip65

Power Output: Seetronic PowerCON Ip65

Power Input: 28 Vdc, 3-Pin Ip65 Xlr

Data Connectors: 5-Pin Ip65 Xlr, Seetronic Ethercon Compatible

Cable Length (Power): 5 Ft (1.5 M)

Software Connection: Usb

Control

Control Protocol: Art-Net, Sacn, Dmx, Crmx, Rdm

Dmx Channels: 1, 3, 4, 5, 6, 8, 10, 11, 15, 16

Art-Net Channels: 1, 3, 4, 5, 6, 8, 10, 11, 15, 16

Modes/Personalities: 12 Personalities (1, 3, 4, 5, 6, 8ch1, 8ch2, 10, 11, 15ch1, 15ch2, 16)

Electrical

Input Voltage: 100 To 240 Vac, 50/60 Hz (Auto-Ranging)

Power Linking: 7 Units @ 100 V; 8 Units @ 120 V; 15 Units @ 208 V; 16 Units @ 230 V, 17 Units @ 240 V

Power and Current: 184 W, 1.524 A @ 120 V, 60 Hz

Power and Current: 187 W, .891 A @ 208 V, 60 Hz

Power and Current: 180 W, .824 A @ 230 V, 50 Hz

Certifications / Qualifications

Ce, Met, Fcc,

Ip Rating: Ip65, Temporary Outdoor Use, With Pressure Equalizing M12 Gore Valve Temperature

Ambient: -4 °F To 113 °F (-20 °C To 45 °C)

What's Included

On Air Panel 1 Ip

Seetronic PowerCON Ip65

Omega Bracket with Mounting Hardware

Optional Accessories

On Air Ip Panel 1 Barndoor

On Air Ip Panel 1 30° Honeycomb

On Air Ip Panel 1 60° Honeycomb

On Air Panel 1 Ip Diffusion Filter Pack

On Air Ip Panel 1 Intensifier

On Air Ip Panel 1 Pole Yoke Professional Clamps: Ctc-50hc, Ctc-50hcn

Seetronic PowerCON Power Linking Cables

5-Pin Dmx Cables

Ethernet Cables
