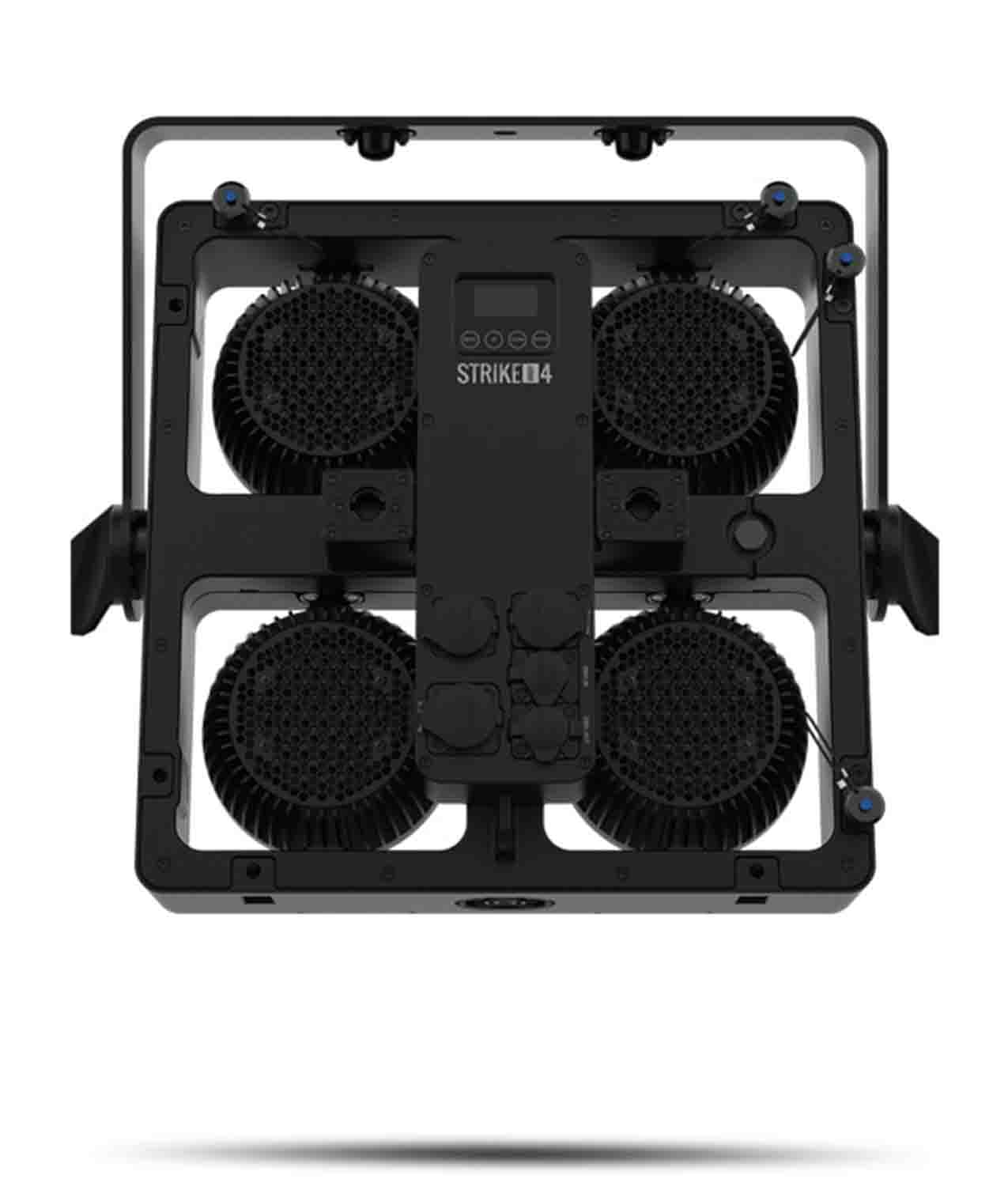

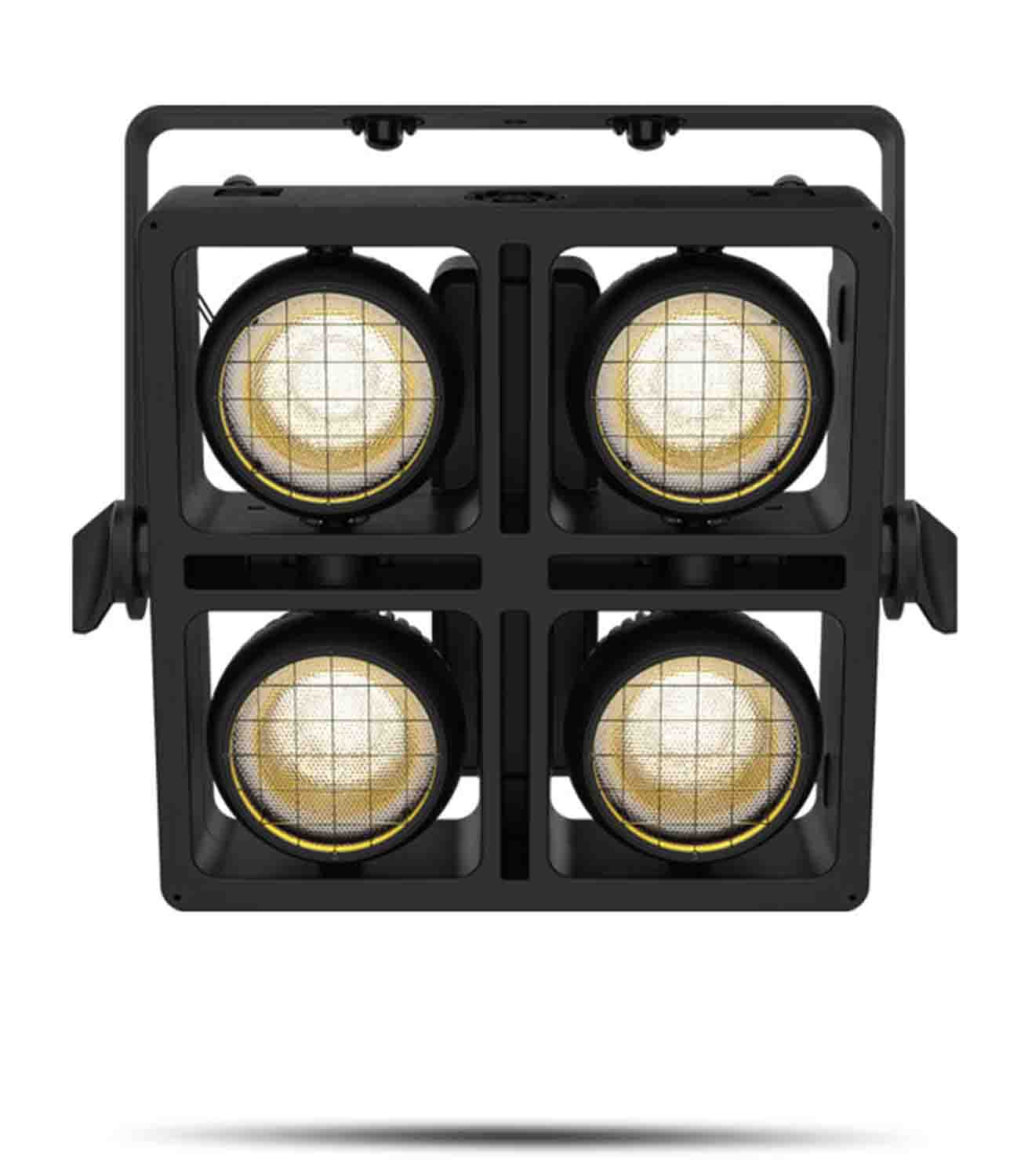

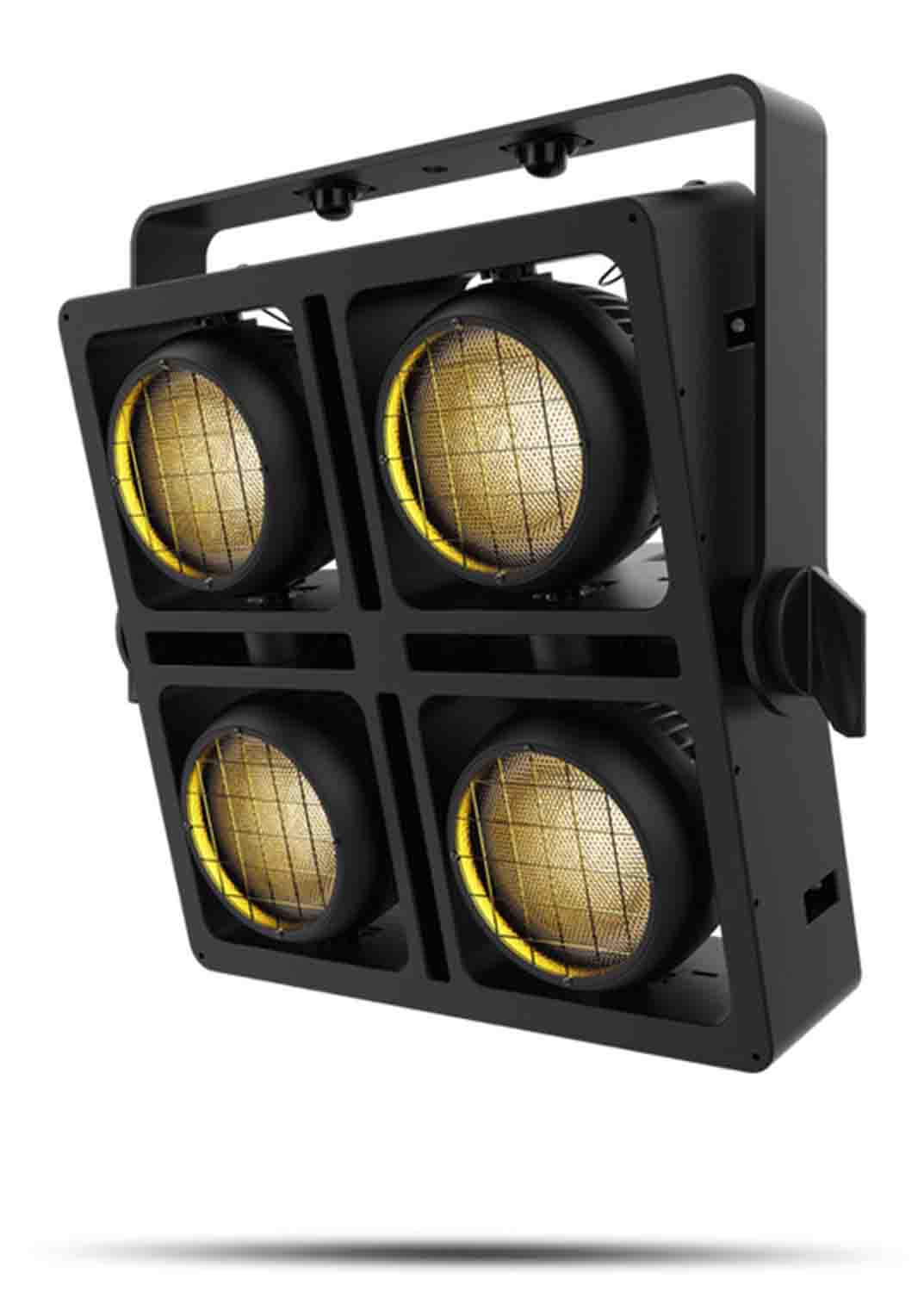

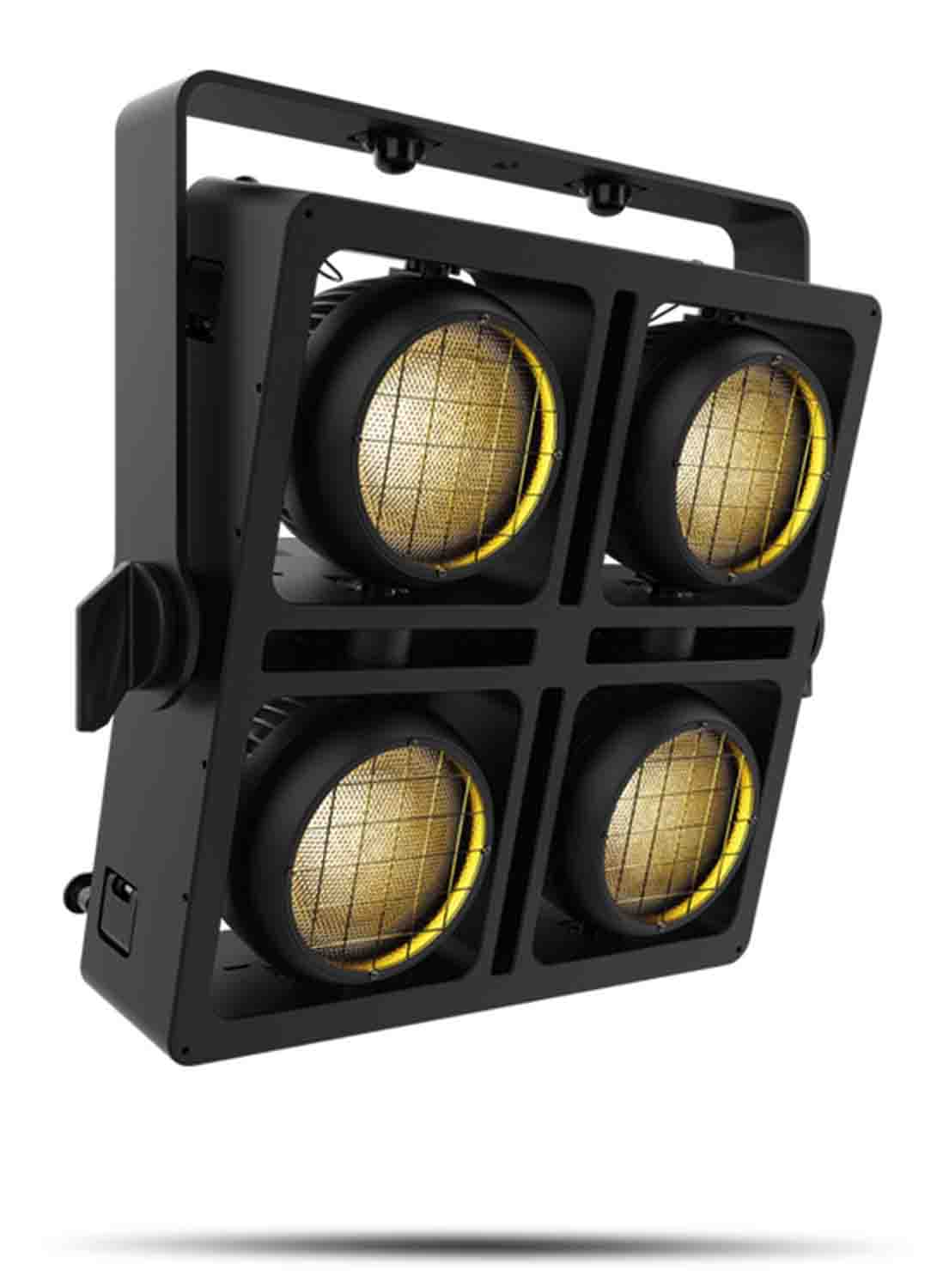

Chauvet Color STRIKE Array 4 Outdoor-Ready Audience Blinder

The Chauvet Pro STRIKE Array 4 Outdoor-Ready Audience Blinder is an electrifying outdoor-ready audience blinder with four high-power warm white LEDs housed in independently focusable pods. An emulated “amber shift” warms the color temperature of the light as it dims to deliver a classic tungsten look. Its variable PWM and high CRI make it ideal for broadcast applications. Thanks to a custom interlocking system CHAUVET Professional has developed, STRIKE Array 4 can be interconnected with multiple Array units for scalable design configurations without any tools. Omega-Bracket locks are also installed both on the yoke and the back of the IP65 blinder – giving you a streamlined truss mounting process.

Product Specifications:

Optical

Light Source: 192 LED (WW) 1.33 W, (2.2 A), 2700 K, 50,000 hours life expectancy

Light Source: 20 LED (Amber) 2.63 W, (.758 A), 50,000 hours life expectancy

Color Temperature (At Full): 2770 K

Cri: 93.2

Beam Angle: 61.5°

Field Angle: 100.5°

Illuminance (Total): 684 lux @ 5 m

Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 25,000 Hz

Dynamic Effects

Dimmer: Electronic

Strobe Rate: 0 to 25 Hz

Dim Modes: 4

Built-In Automated Programs: Yes

Construction / Physical

Dimensions: 18.5 x 16.7 x 6.3 in (470 x 424.5 x 161 mm)

Dimensions (Shipping Size): 20.7 x 8.5 x 19.3 in (525 x 215 x 490 mm)

Weight: 28.7 lb (13 kg)

Weight (Shipping Weight): 33.1 lb (15 kg)

Exterior Color: Black

Housing Material: Aluminum die-cast

Connections

Power Connection: Edison (Local) plug to Seetronic Powerkon IP65

Power Input: Seetronic Powerkon IP65

Power Output: Seetronic Powerkon IP65

Data Connectors: 5-pin IP65 XLR

Cable Length (Power): 5 ft (1.5 m)

Control

Control Protocol: DMX, RDM

Dmx Channels: 1, 3, 4, 5, 6, or 10

Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)

Power Linking: 5 units @ 100 V; 6 units @ 120 V; 11 units @ 208 V; 12 units @ 230 V; 12 units @ 240 V

Power and Current: 243 W, 2.44 A @ 100 V, 60 Hz [9.0 A inrush]

Power and Current: 241 W, 2.01 A @ 120 V, 60 Hz [10.8 A inrush]

Power and Current: 244 W, 1.18 A @ 208 V, 60 Hz [14.2 A inrush]

Power and Current: 245 W, 1.07 A @ 230 V, 50 Hz [12.8 A inrush]

Power and Current: 247 W, 1.03 A @ 240 V, 50 Hz [12.8 A inrush]

Certifications / Qualifications

CE, MET, FCC, ETL, cuLus

Ip Rating: IP65, temporary outdoor/wet use

Ip Rating: IP65, outdoor/wet, with pressure equalizing M12 GORE valve

Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

What's Included

STRIKE Array 4

Seetronic Powerkon IP65

Omega bracket with mounting hardware

Warranty Card

Quick Reference Guide or User Manual

Optional Accessories

Professional Clamps: CTC-50HC, CTC-50HCN

Seetronic Powerkon power linking cables

5-pin IP or Non-IP DMX Cables
