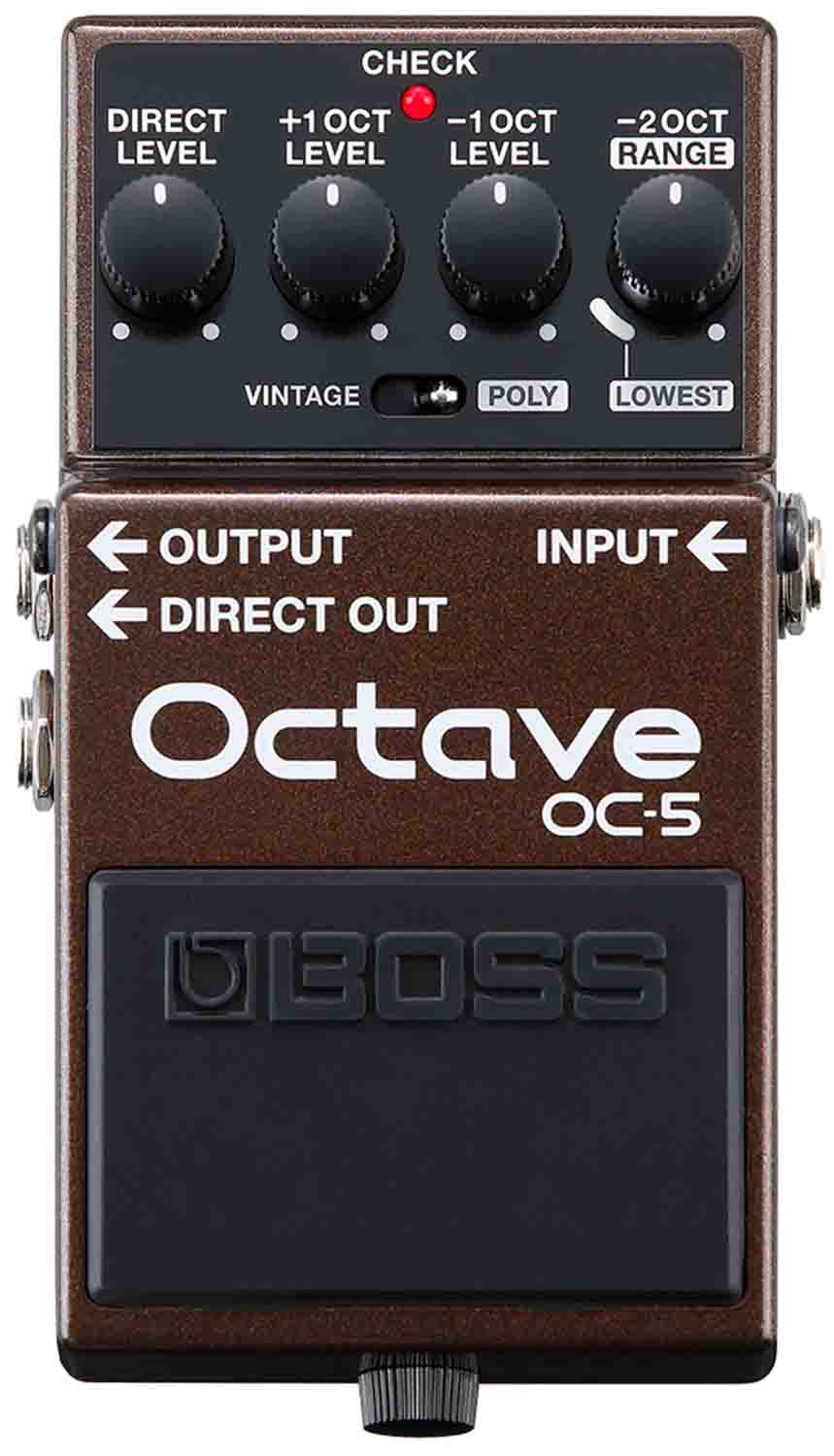

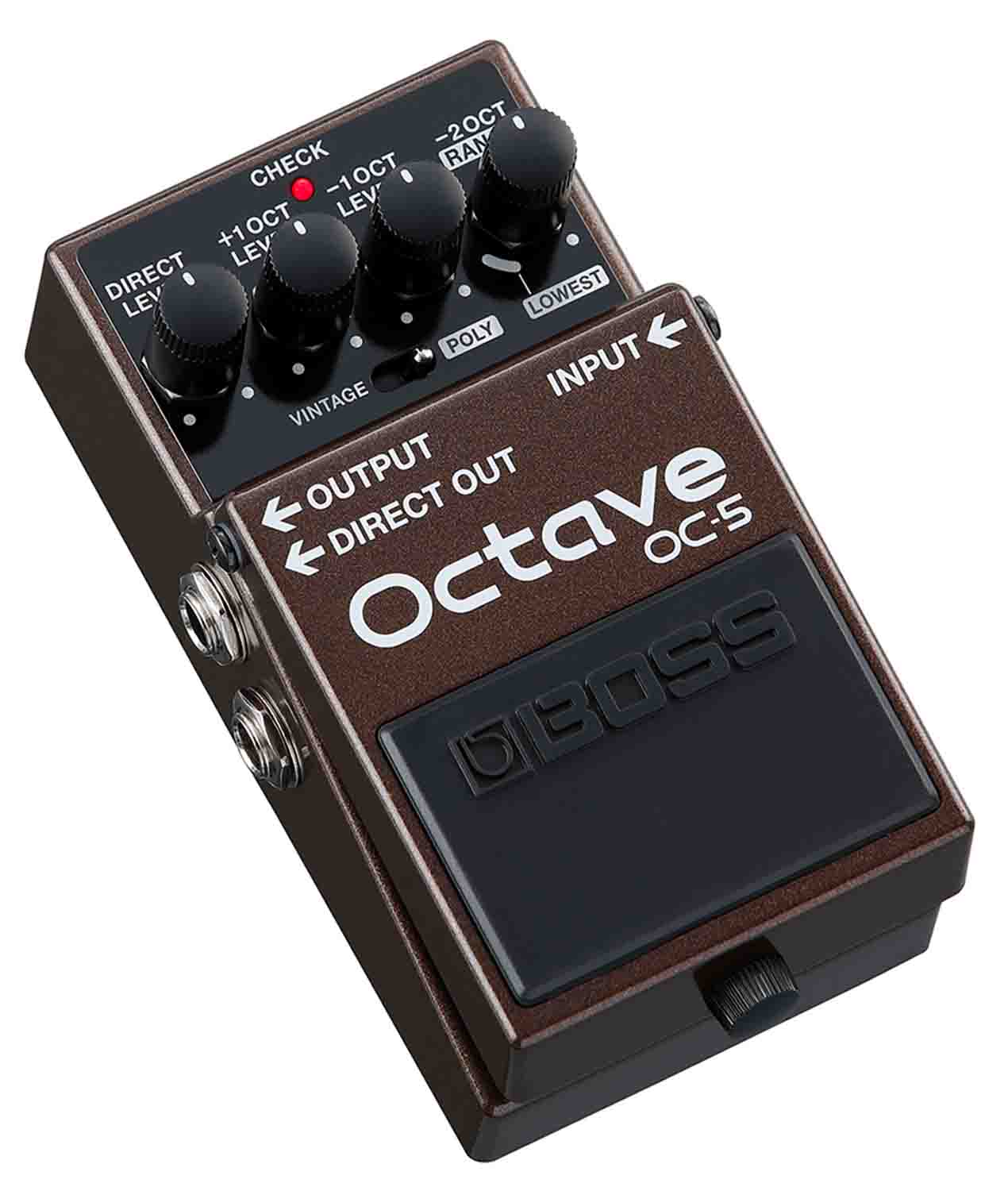

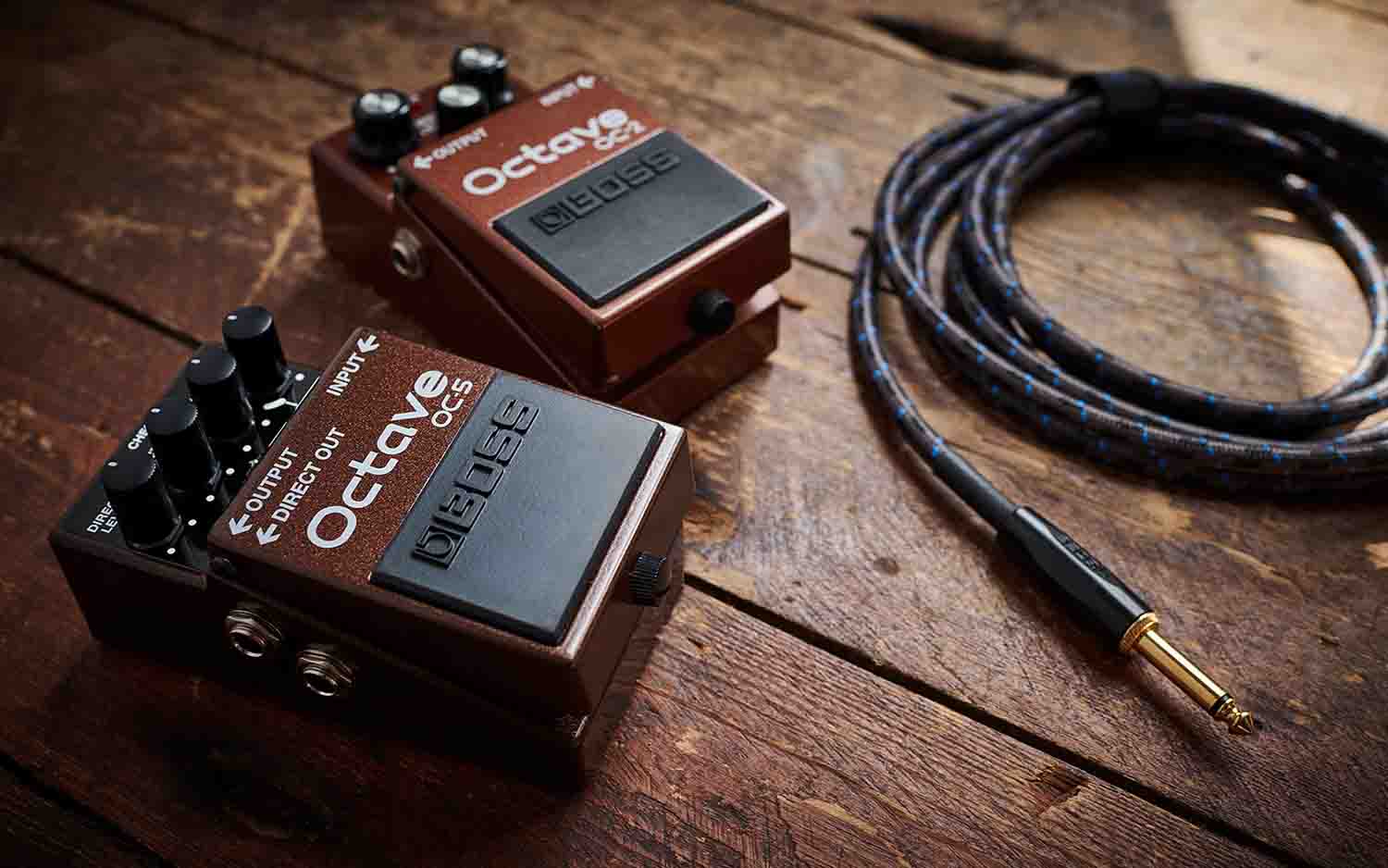

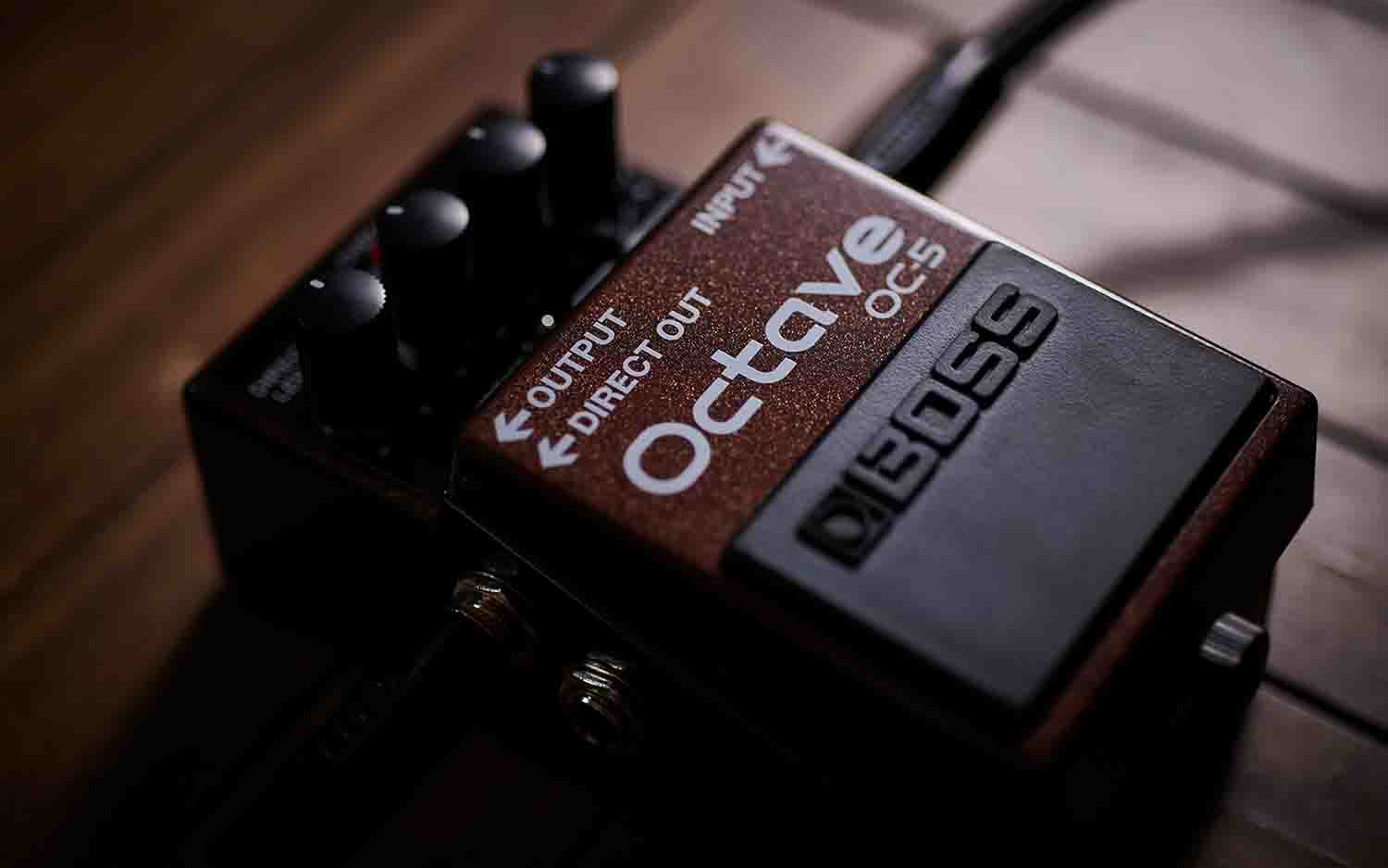

B-Stock: Boss OC-5, Octave Compact Pedal

BOSS OC-5 Octave Guitar Pedal Fusing classic BOSS octave tones with the latest tracking technologies, the BOSS OC-5 sets a new standard in octave pedal performance. Vintage mode provides a spot-on recreation of the legendary mono OC-2 from 1982, while Poly mode offers numerous enhancements for extended-range playing. And with the addition of an octave-up feature, a span of three octaves is now available for creative exploration. From fat, low mono sounds to octave-shifted chords and more, the OC-5 delivers the widest range, finest sound quality, and best playability in any octave stomp to date.

High-Octane Octave Performance

Powered by the latest real-time processing technologies from BOSS, the OC-5 provides exceptional sound and playability for the most expressive octave experience ever. A key feature is the newly developed tracking engine, which delivers clean, accurate performance with no latency. The OC-5 also offers wider range and greater polyphonic capabilities than previous OC models, covering all your octave needs in one high-performance pedal.

Classic Tones with Vintage Mode

Introduced in 1982, the OC-2 was the world’s first modern octave pedal for guitar and bass. Still loved by players everywhere, the stomp’s warm-yet-present tone sits perfectly in a mix, and its characteristic voice can be heard in many famous songs. The OC-5’s Vintage mode brings you the OC-2’s iconic mono sound, coupled with improved response thanks to the new tracking engine. Dedicated level controls are provided for -1 and -2 octave effects and the direct sound, giving you quick access to an endless variety of sub-octave colors.

B-stock may have minor cosmetic scratches or dents further more B-Stock is not covered by full manufacturer warranty. Please call for details.

Product Specifications:

Nominal Input Level: -20 dBu

Input ImpedanceP: 1 M ohm

Nominal Output Level: -20 dBu

Output ImpedanceL: 1 k ohm

Recommended Load Impedance: 10 k ohms or greater

Bypass: Buffered bypass

Controls: Pedal switch, GUITAR/BASS switch, VINTAGE/POLY switch, DIRECT LEVEL knob,      +1OCTknob, -1OCT knob, -2OCT/RANGE knob

Indicator: CHECK indicator (Serves also as battery check indicator)

INPUT jack: 1/4-inch phone type
OUTPUT jack: 1/4-inch phone type

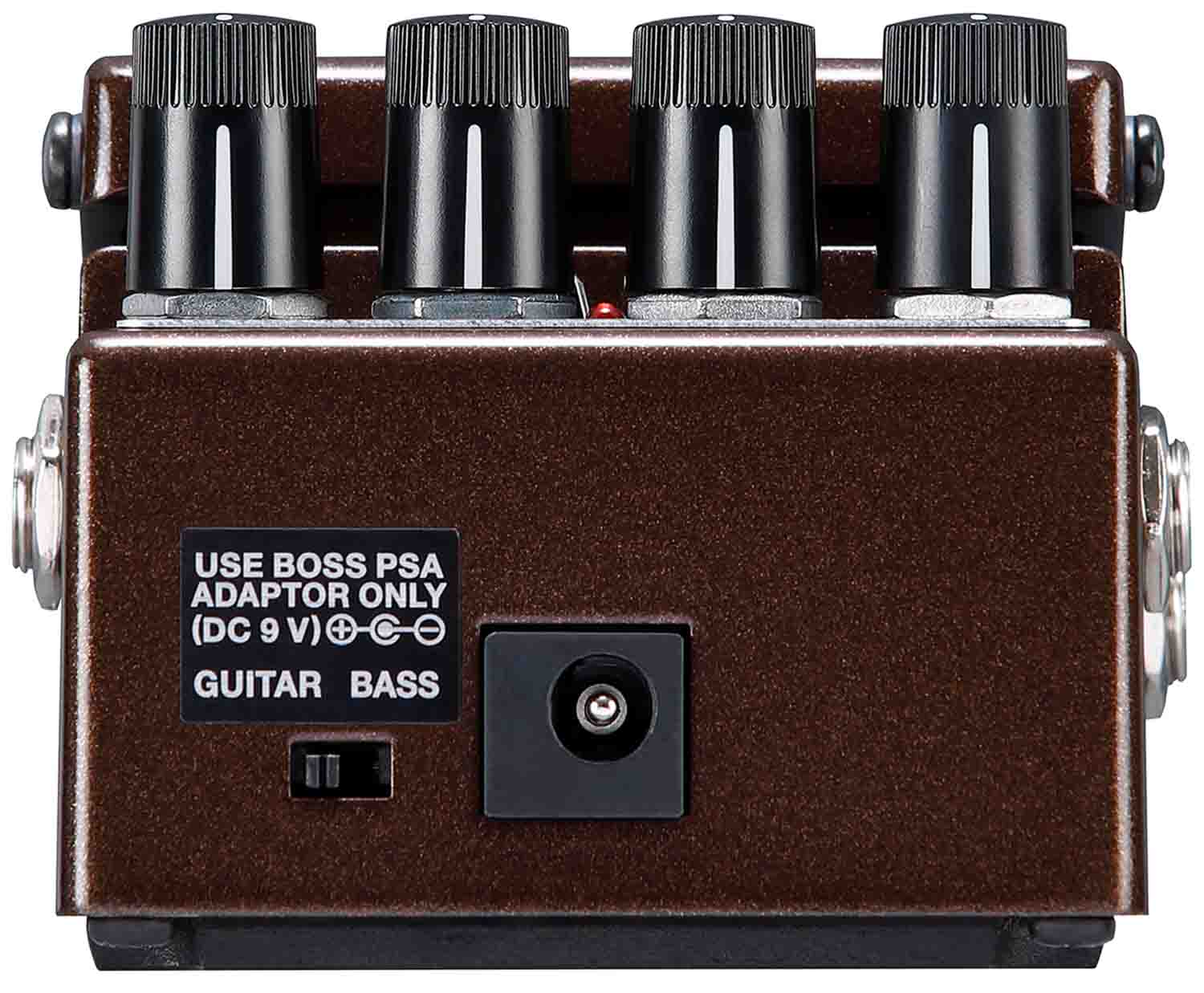

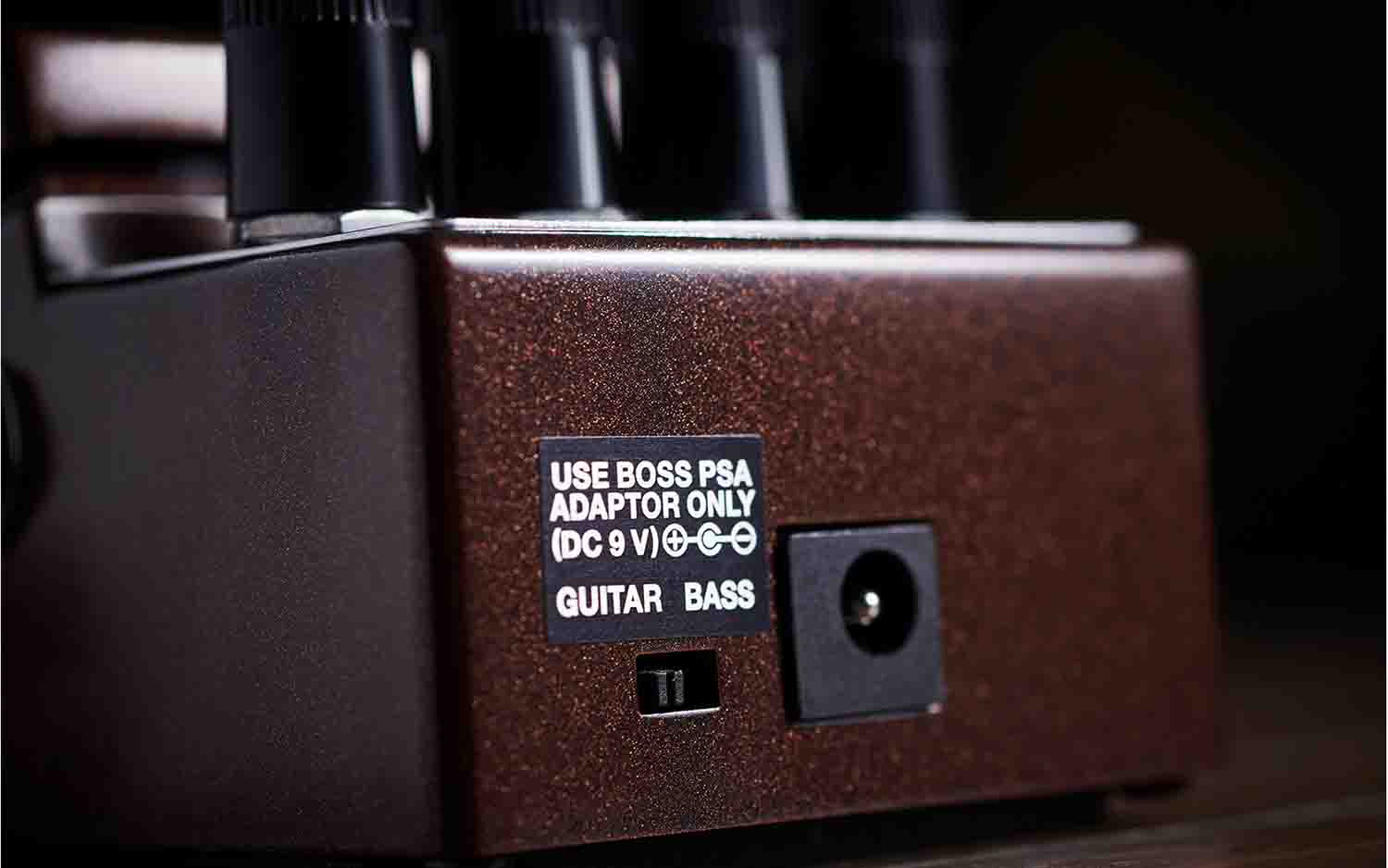

DIRECT OUT jack: 1/4-inch phone type, DC IN jack

Power Supply: Alkaline battery (9 V, 6LR61 or 6LF22)

Current Draw: 55 mA

Expected battery life under continuous use: Alkaline: Approx. 7 hours

Width: 73 mm, 2-7/8 inches

Depth: 129 mmm, 5-1/8 inches

Height: 59 mm, 2-3/8 inches

Weight (including battery): 440 g, 1 lb
