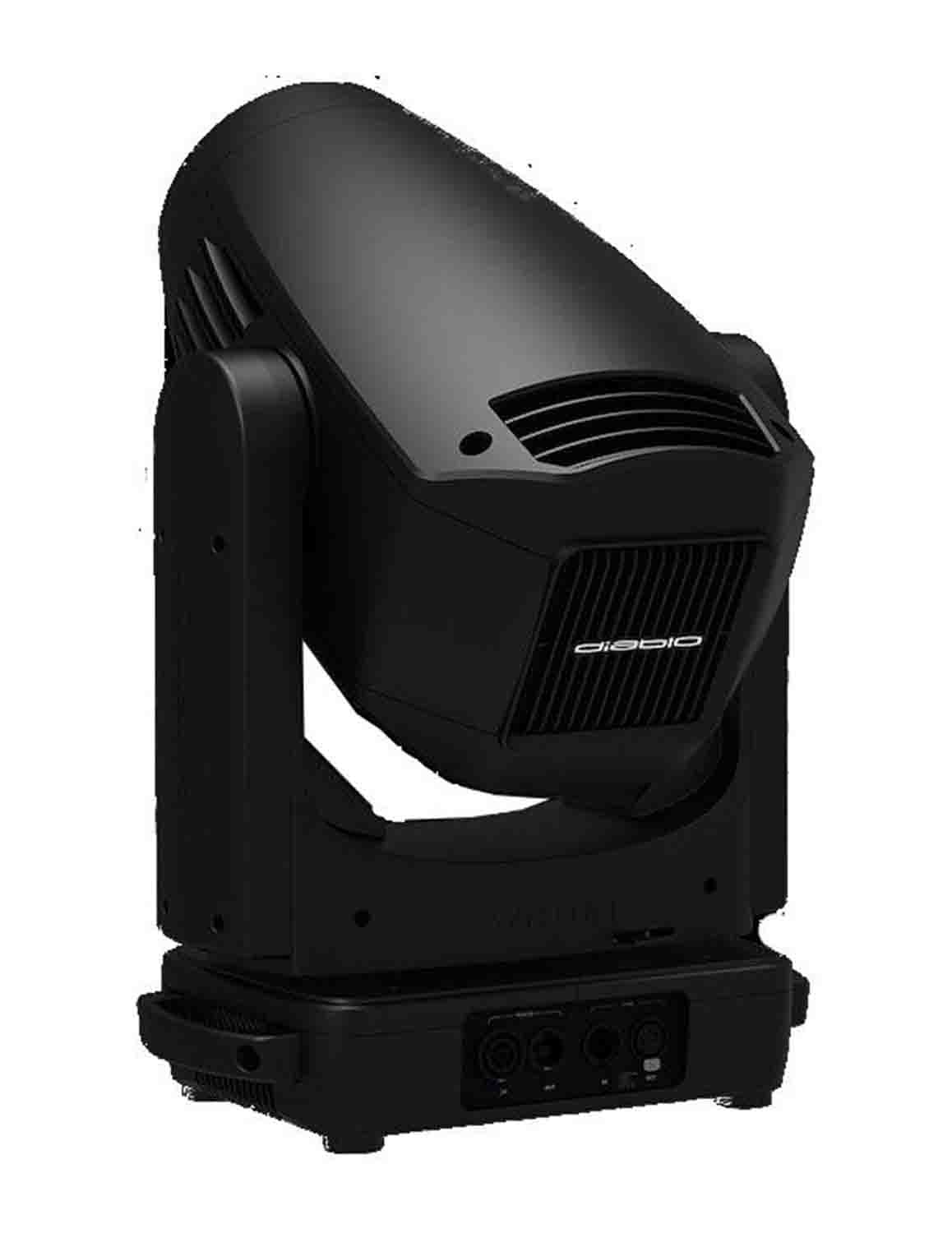

AYRTON AY011350, 300W LED Moving Head Profile with 7 to 53 Degree Zoom

The AYRTON AY011350, 300W LED Moving Head Profile with 7 to 53 Degree Zoom is a powerhouse of technology that will tempt the most demanding lighting designers. To achieve its objective, Ayrton has miniaturized the framing system while maximizing the performance level. As in other profile luminaires of the product line, the framing section allows accurate positioning of its four shutter blades on a 100% surface area in all positions, so that the user can frame any object regardless of the luminaire's position. A new ultra-compact high-output 550 W power supply feeds eight additional motors in the framing system, fitting into the original MISTRAL format. DIABLO borrows the same 13-element proprietary optical system delivering a 7.5:1 zoom ratio with a zoom range of 7° to 53°. The 119 mm frontal lens can produce an extremely uniform flat beam that can render images perfectly in all conditions and at any beam angle.

DIABLO-TC is geared for applications that require perfect color rendition, using a monochromatic light source with a native color rendering index greater than 90 and high TM30 readings, at a color temperature of 6000 K. Fully equipped at the factory, DIABLO includes a CMY color mixing system combined with a progressive CTO and a wheel with seven complementary colors that produces an infinite palette of bright pastels and saturated colors. The effects section includes a wheel with seven interchangeable HD glass gobos, a continuous dynamic effects wheel, a 15-blade iris diaphragm, a heavy frost filter and a five-facet circular rotating prism. DIABLO has a highly efficient phase-change liquid cooling system using a heat pipe that includes a particularly effective ultra-silent ventilation mode, perfect for stage and studio applications.

Product Specification:

Dimensions: 16.92 x 25.98 x 11.02

Weight: 48.06
