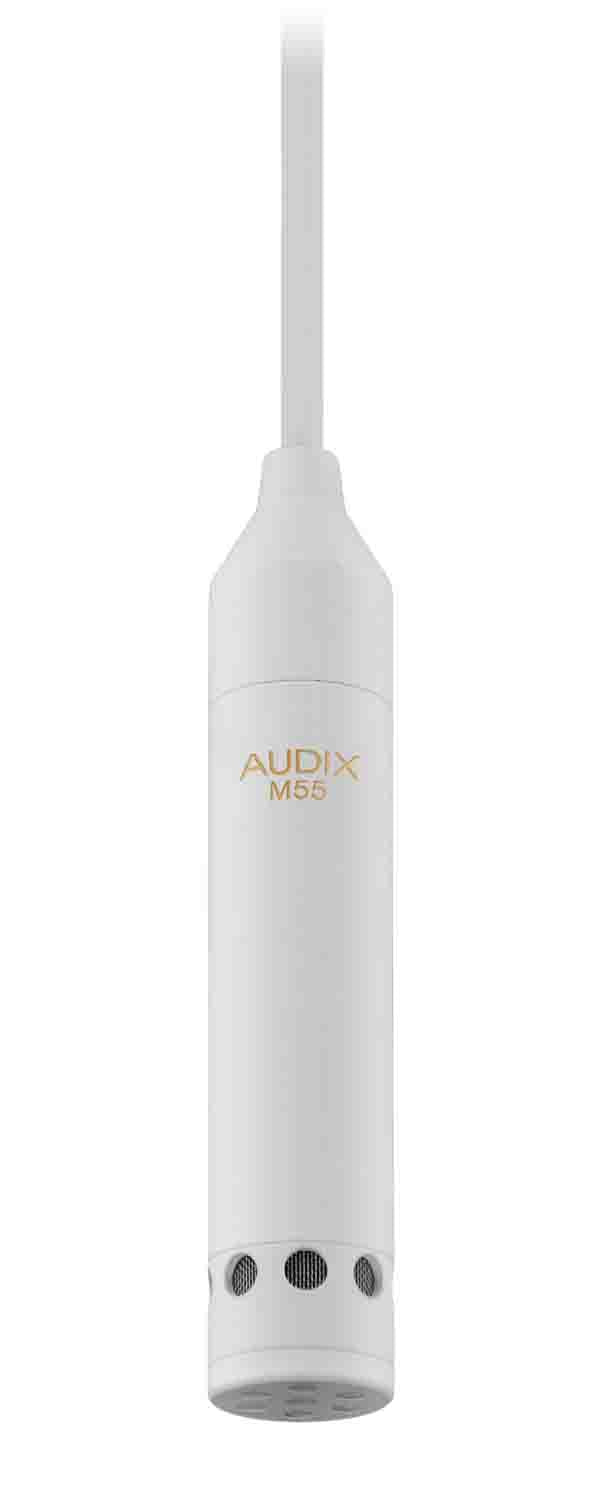

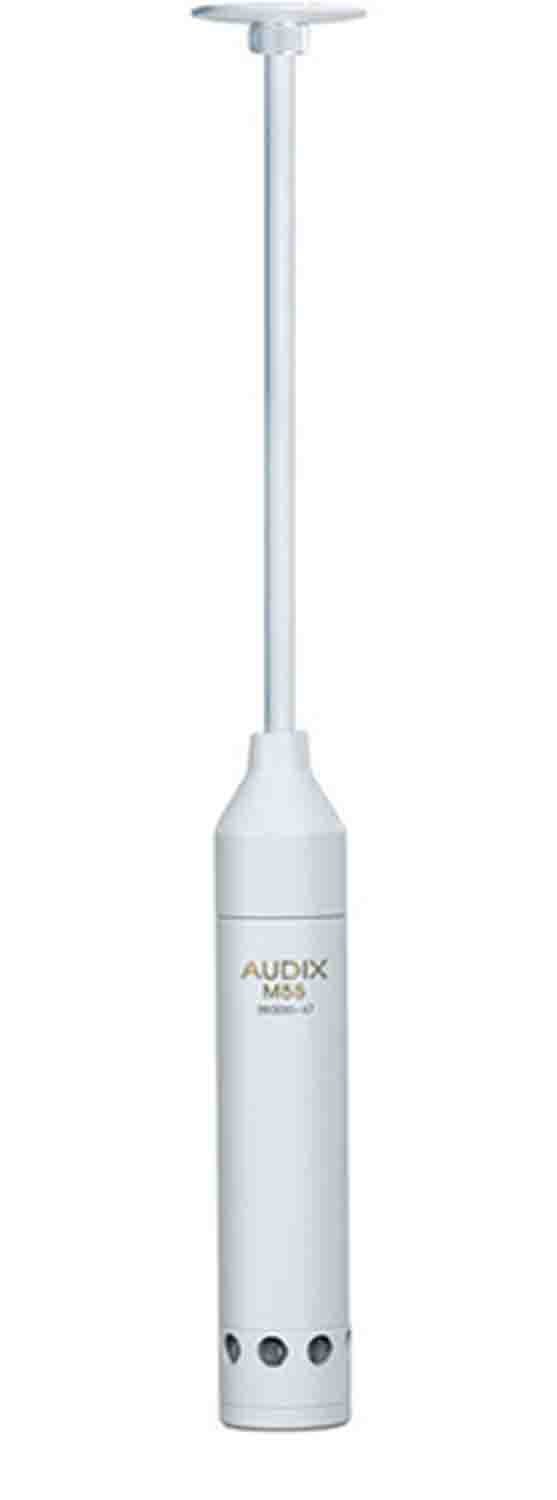

Audix M55WO Omnidirectional Hanging Ceiling Microphone with Height Adjustment

The Audix M55WO Omnidirectional Hanging Ceiling Microphone with Height Adjustment is designed for applications where aesthetics, sound quality, and ease of installation are critical. The primary applications for the ceiling-mounted M55 include Video & Teleconference (VTC), distance learning, hospital rooms, surveillance, and ambient room miking.

The M55 conferencing microphone accommodates interchangeable capsules with cardioid, hyper cardioid, omnidirectional, and super cardioid (shotgun) coverage patterns. All electronics are fully integrated with high sensitivity and low noise. The signal output is balanced to eliminate RF interference caused by cell phones and mobile devices.

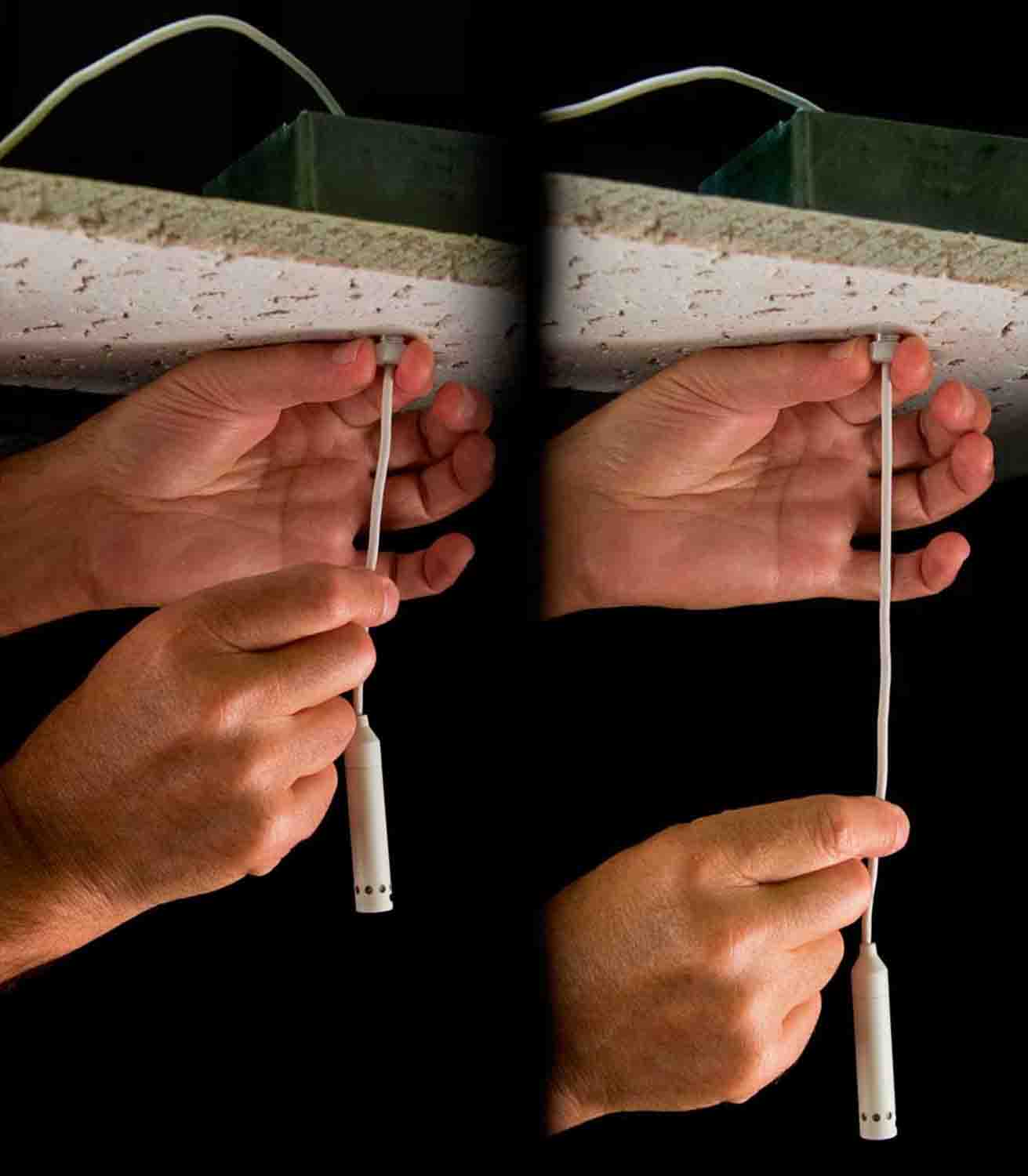

Installing the M55 hanging microphone requires drilling just one 5/8-inch hole in the ceiling, with no additional tools needed. The M55’s mounting hardware easily adjusts the hanging height up to four feet from the ceiling surface without removing ceiling tiles. An optional aiming clip (MCHANGER (opens a new window)) easily makes any additional angular adjustments. The cable assembly, with a terminal block connector, is neatly housed in an airtight, plenum-rated junction box. A wire safety cable provides additional seismic restraint.

Product Specification:

Frequency Response: 60 Hz to 10 kHz

Polar Pattern: Omnidirectional

Output Impedance: 150 Ohms

Sensitivity: 40 mV/Pa @ 1 kHz

Equivalent Noise Level: 22 dB (A-Weighted)

Signal to Noise Ratio: 72 dB

Dynamic Range: 108 dB

Power Requirement: Phantom Power: 18 to 52 V

Connector: Phoenix

Material of Construction: Aluminum and zinc alloy

Length: Mic: 2.1" / 5.4 cm

Package Weight: 1.64 lb

Box Dimensions (LxWxH): 9.6 x 6.1 x 4"
