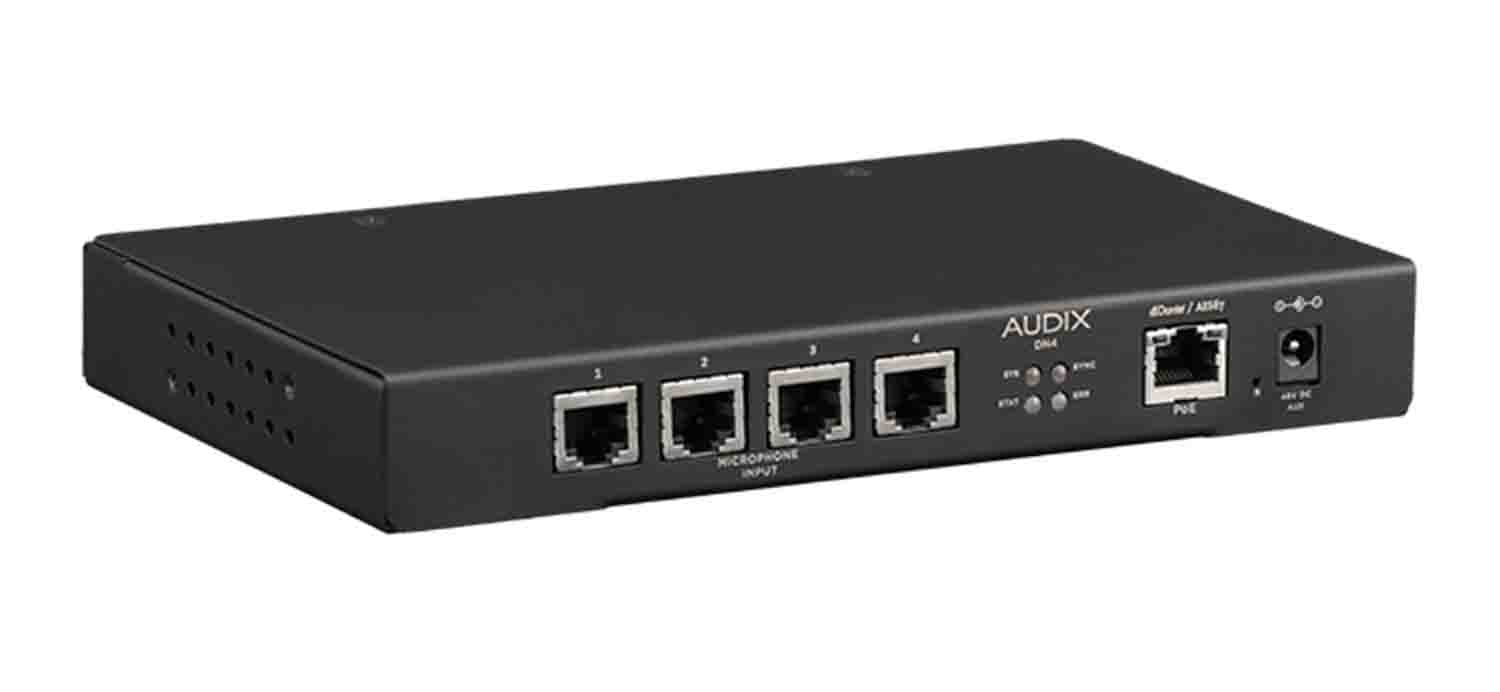

Audix DN4 Dante AES67 Integrated Microphone System Interface

The Audix DN4 Dante AES67 Integrated Microphone System Interface is a 4-channel, analog-microphone-to-Dante (or AES67) interface featuring selectable pre-amp gain, low- and high-pass filters, and LED logic control.

The DN4 microphone interface is a key part of the Audix Dante, AES67 Integrated Microphone System, the fast, trouble-free way to stream Audix audio performance through Ethernet networks. High-quality audio and all microphone functions – including on-off contact closure and LED status indicators – are available through a single CAT5 - CAT7 cable with RJ45 connections at both interface and microphone. This simple configuration eliminates wiring errors, accelerates installation, and reduces cost.

The DN4 features four inputs for Audix RJ45-equipped, single-element microphones and two 5V logic outputs per port, with source/sink capability for LEDs that are controlled by network-connected DSPs and one logic input per port for buttons. Low-pass and high-pass filter settings are available on each audio channel, as are eight selectable gain levels, with all settings configurable via software.

Product Specification:

Mic Input Connector: Shielded 8P8C, RJ45

Phantom Power: 48 VDC, 14 mA/Port (Short-Circuit Protected)

Max Input: -14 dBu, 155 mV (0 dB Gain)

Input Impedance: 1.15 kOhms (Balanced)

CMRR: 50 dB

EIN: -120 dBu (Unweighted)

SNR: -96 dB (Unweighted)

Chipset Dante: UXT-01-004

Dimensions: 1.1 x 8.0 x 4.9"

Weight: 1.41 lb / 0.64 kg
