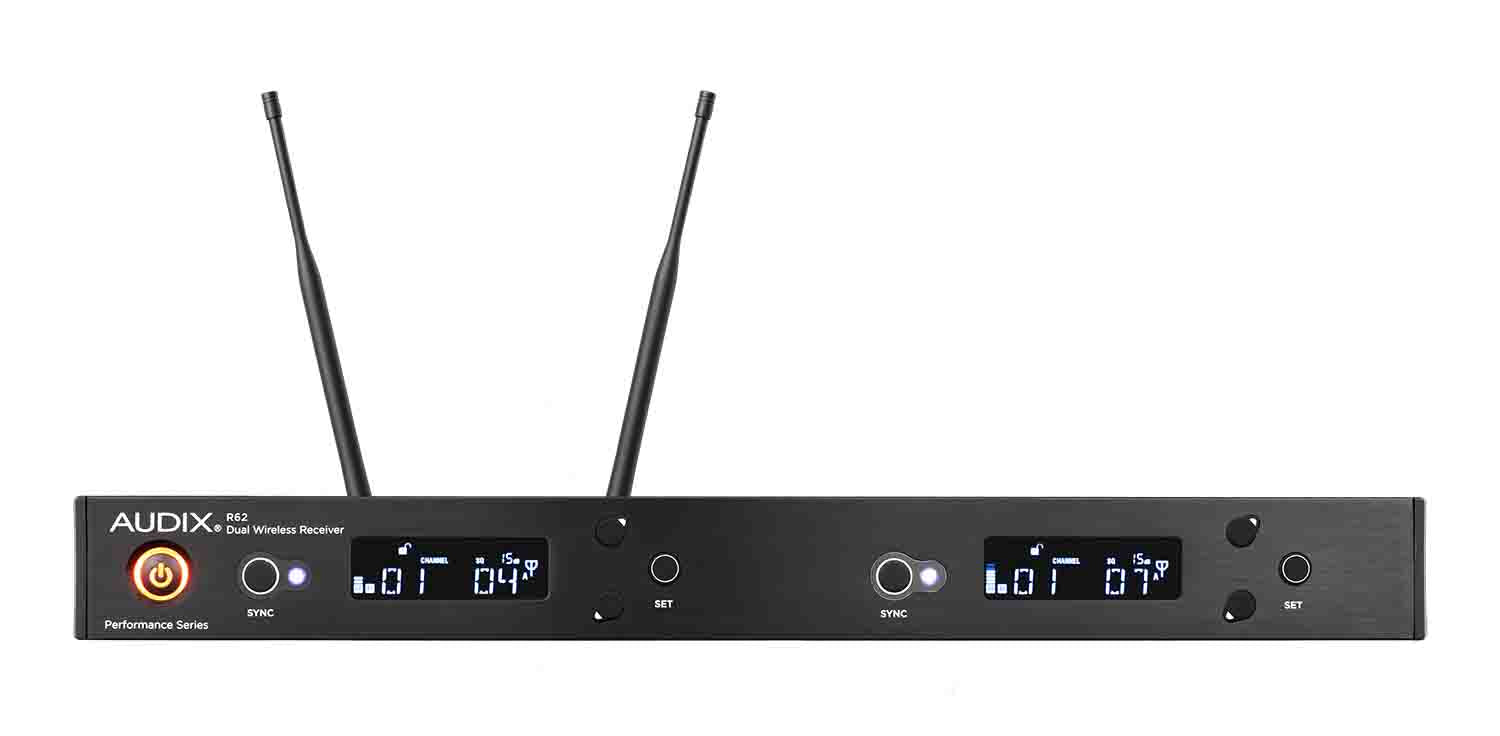

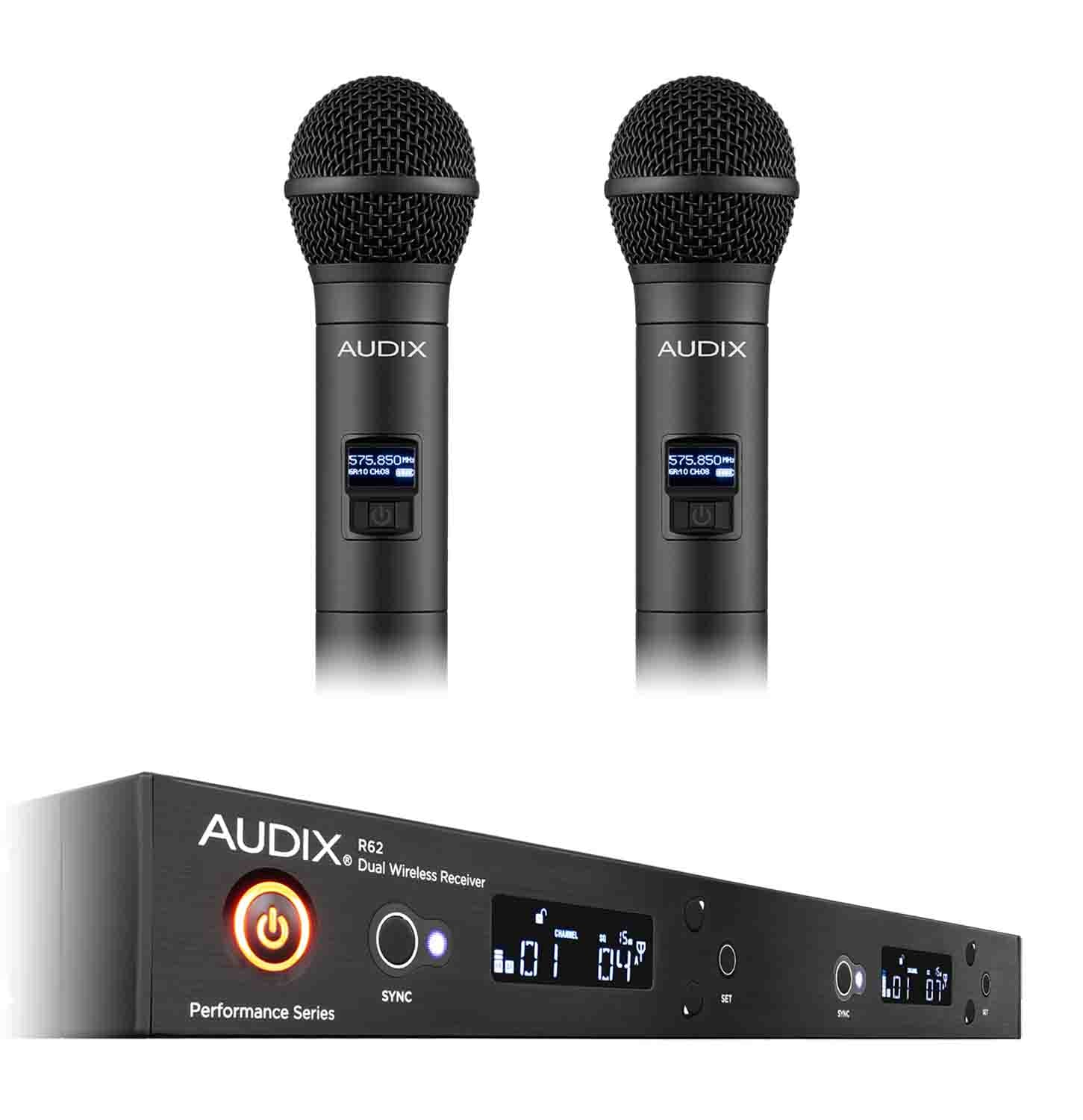

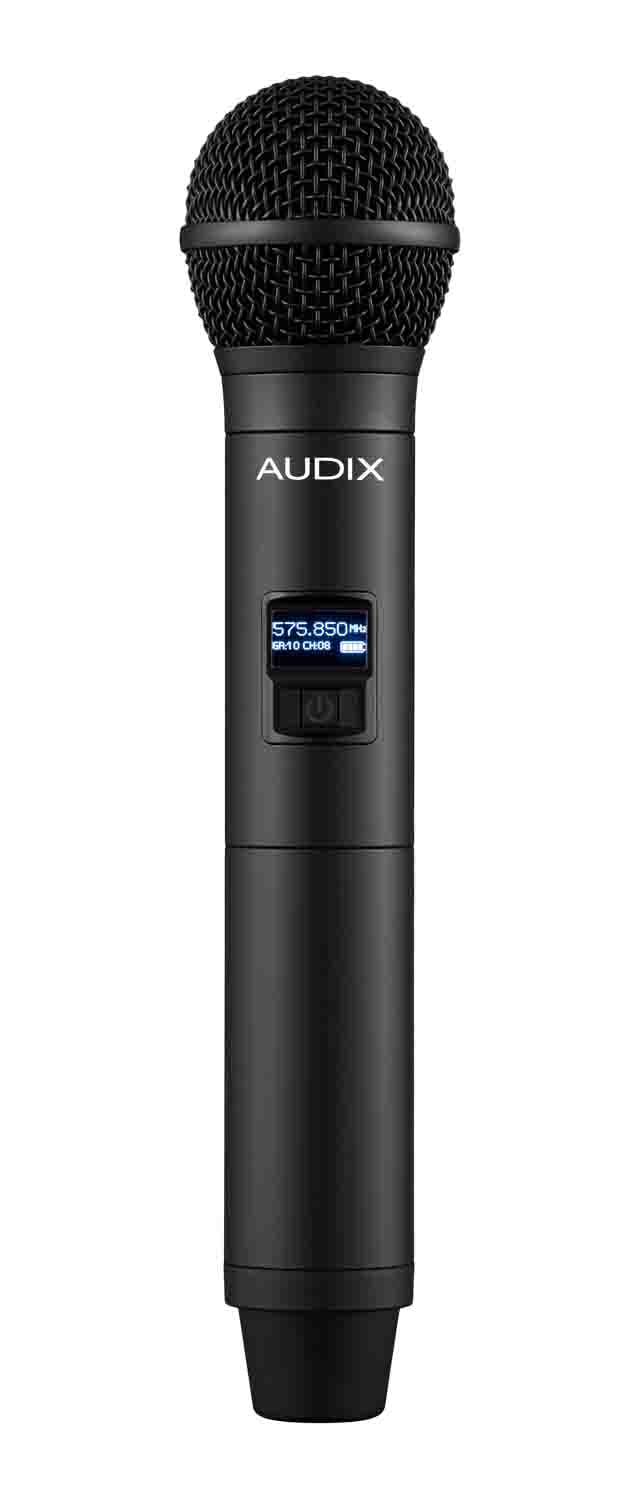

Audix ADX40 AP62OM2 Dual-Channel True Diversity Receiver with Two H60 OM2 Handheld Microphone Transmitters

The Audix ADX40 AP62OM2 Dual-Channel True Diversity Receiver with Two H60 OM2 Handheld Microphone Transmitters is our best-selling vocal microphone, has slight bass proximity, a tailored mid-range, and a full-bodied sound. Ideally optimized for small to mid-size PA systems, workhorse microphone known for its excellent isolation on stage, outstanding feedback rejection, and ability to handle high sound pressure levels without distortion.

A single space rackmount kit with BNC cables for front mounting antennas is included. Optional accessories include active directional antennas and an antenna distribution system for up to four systems (8 channels).

Product Specification:

Frequency Band: 522 to 586 MHz

Bandwidth: 64 MHz

Switchable Frequencies : 207 pre-coordinated frequencies

Reception Frequencies: 2560 tunable frequencies (spaced 25 kHz apart)

Wireless Range: Up to 450' / 137 m

Antenna Connector: 2 x BNC (8 VDC, 150 mA)

Audio Level Control: -12 to +9 dB in 3-dB steps

Frequency Response: 45 Hz to 18 kHz

Pilot Tone: 32 kHz

Receiving System: Dual tuner, true diversity

Signal to Noise Ratio: 112 dB at 30 kHz deviation (A-weighted)

Total Harmonic Distortion (THD): <0.4% (33 kHz deviation at 1 kHz)

Sensitivity: 5 dBµV (S/N 60 dB at 25 kHz deviation, A-weighted)

Power Requirement: 100 to 240 VAC, 50/60 Hz, 12 VDC, 1 A

Enclosure Material: Metal

Dimensions: 16.0 x 8.2 x 1.7"

Weight: 4.8 lb
