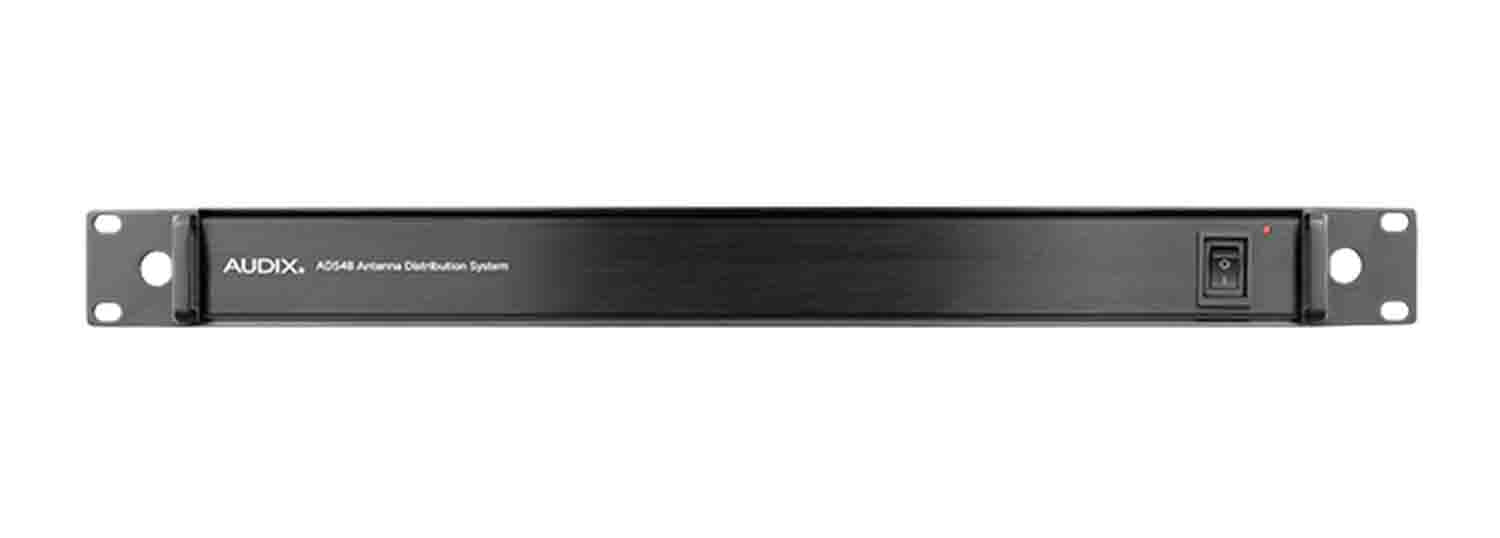

Audix ADS48 Antenna Distribution System for Up to Four AP42/AP62 Two-Channel Microphone Systems

The Audix ADS48 Antenna Distribution System for Up to Four AP42/AP62 Two-Channel Microphone Systems is a wide range UHF antenna distribution system that combines up to four wireless systems to be able to run off a single pair of antennas and power supply. The ADS48 has an internal switching power supply which eliminates the need for the individual DC power supplies normally needed for each receiver. RF signals are internally amplified in order to compensate for any loss that may result from splitting the signal.

When used in conjunction with the AP42 or AP62 two-channel systems, the RF signals are internally amplified and the power supply takes up only 5 rack spaces.

Product Specification:

Product Type: RF splitter

Intended for: Wireless microphone system

Frequency Range: 520 - 936 MHz

Package Content: 2 antennas, RF splitter, 5 power cables, 8 BNC cables, 2 antenna cables

Width: 18.9 in

Depth: 9.8 in

Height: 1.8 in

Weight: 4.74 lbs

Power Source: Integrated power supply

Package Weight: 8.7 lb

Box Dimensions (LxWxH): 23.4 x 16.8 x 3.4"
