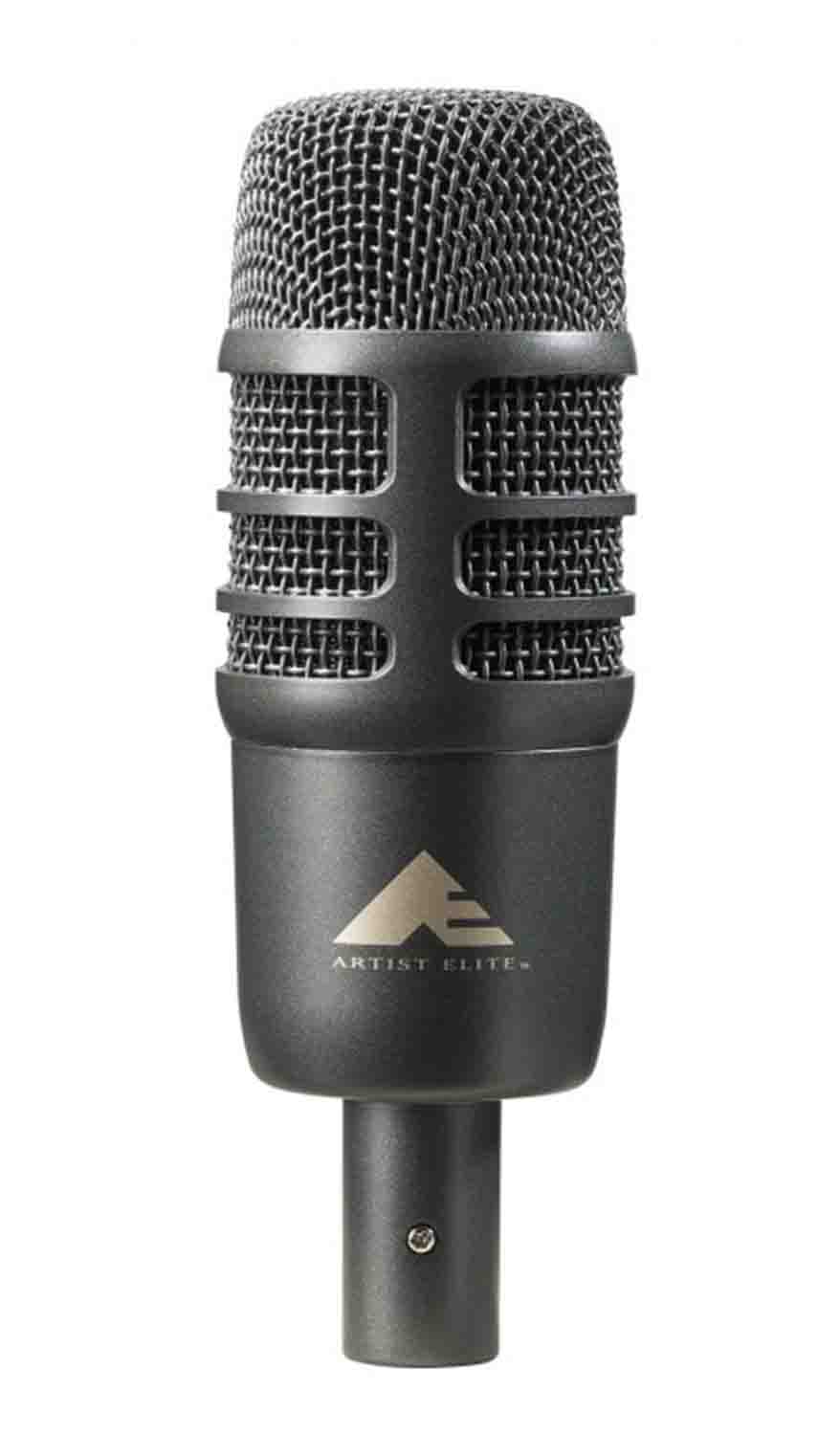

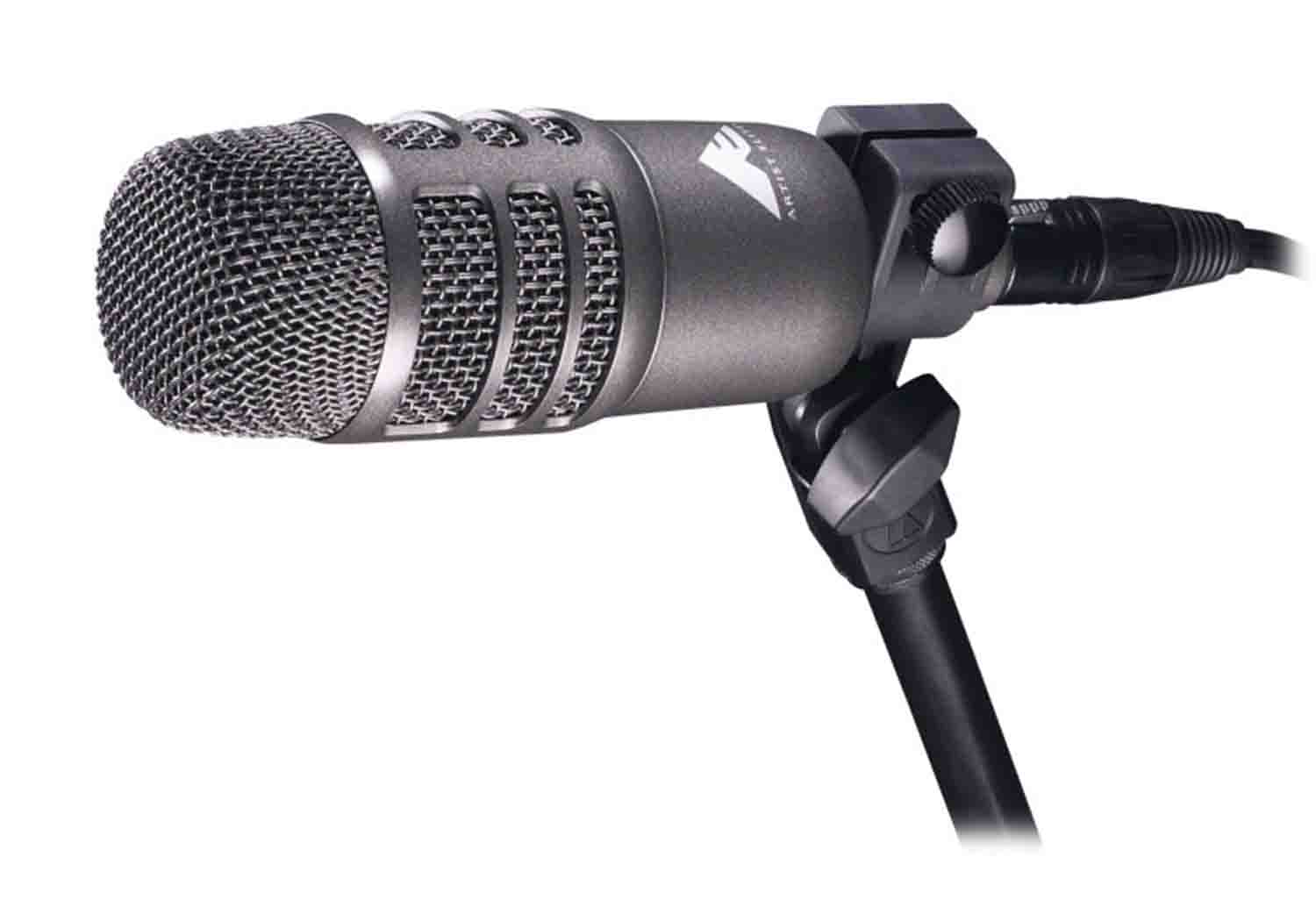

Audio Technica AE2500 Dual Element Cardioid Kick Drum Microphone

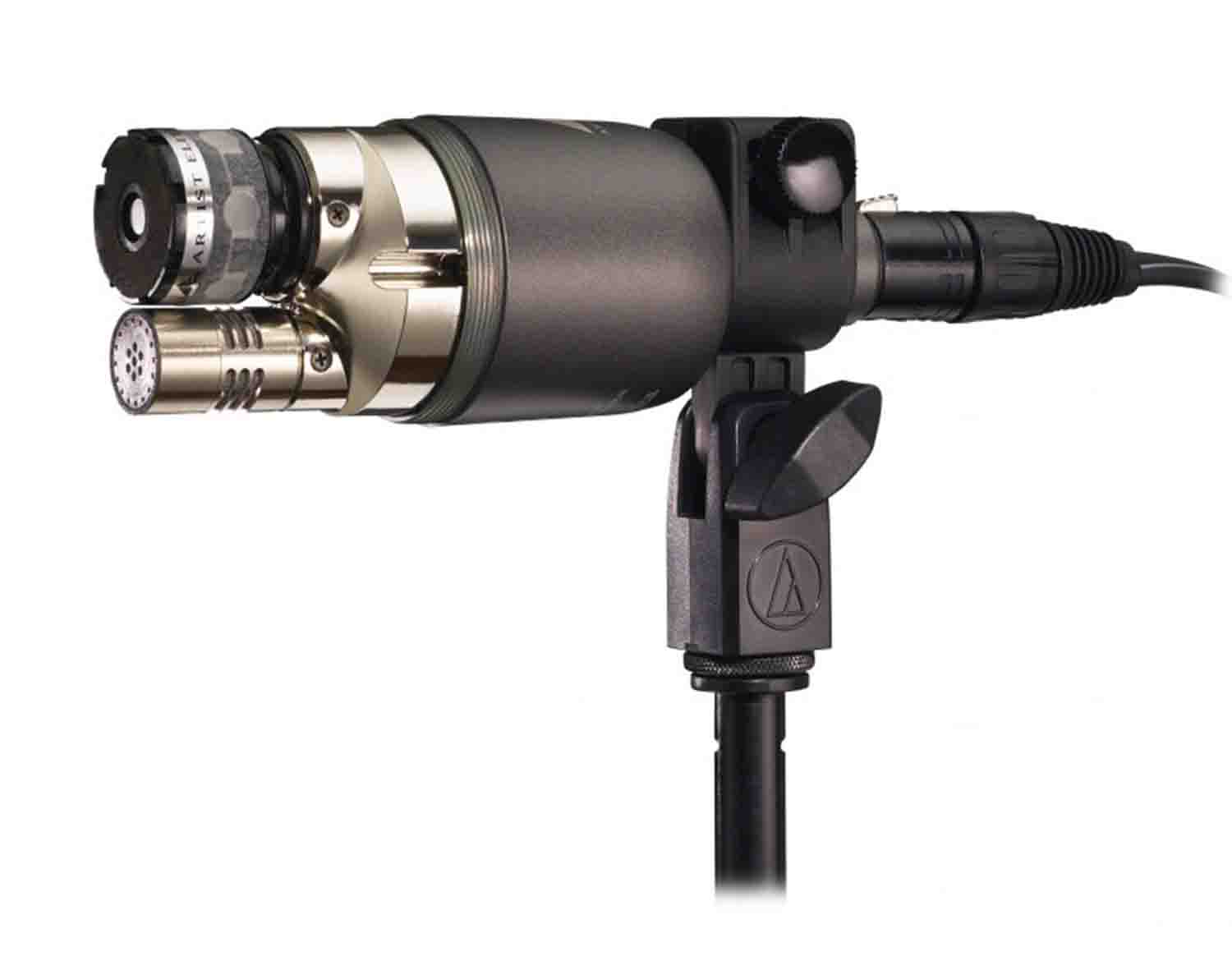

The Audio Technica AE2500 Dual Element Cardioid Kick Drum Microphone features cardioid condenser and dynamic capsules combined in one housing. The dynamic element delivers the aggressive attack of the beater; the condenser captures the round tonalities of the shell. Two layers of resistive mesh form multiple densities over the dynamic element’s side-entry ports, exercising precise control over the time at which off-axis signals arrive at the diaphragm. The condenser diaphragm is optimally tensioned and aged for long-term consistency and stability.

Product Specification:

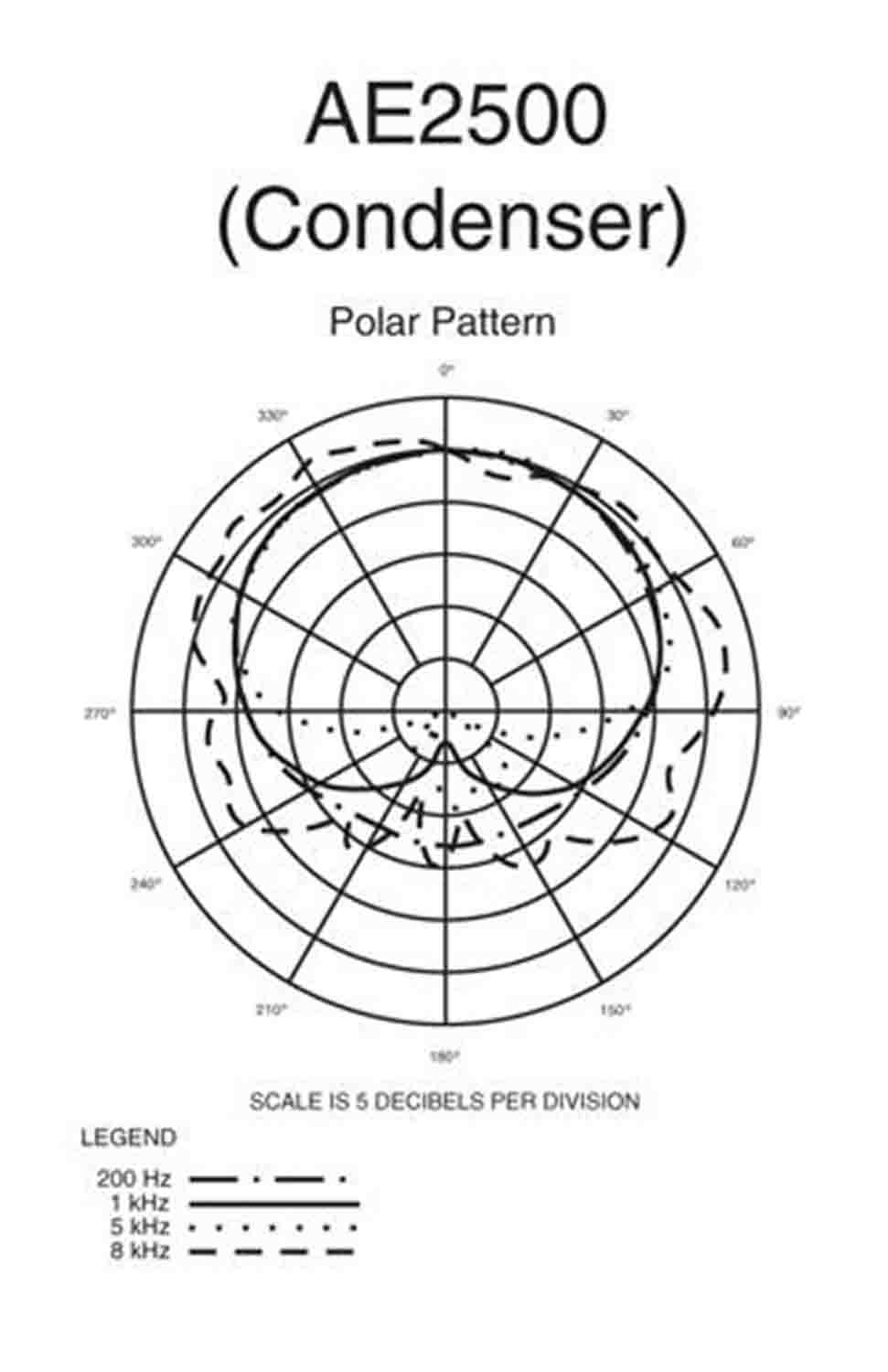

Polar Pattern: Cardioid

Pad: -10 dB

High-Pass Filter: 80 Hz, 12 dB/Octave

Maximum SPL: 148 dB SPL (1 kHz, 1% THD)

Dynamic Range: 124 dB (1 kHz, at Max SPL)

Signal-to-Noise Ratio: 70 dB (1 kHz, at 1 Pa/94 dB SPL)

Output Connectors (Analog): 1 x XLR 5-Pin

Operating Voltage: 11 to 52 V

Operating Current Consumption: 3 mA

Dimensions: ø: 2.17 x L: 6.5" / ø: 55 x L: 165 mm

Weight: 13.8 oz / 390 g

Package Weight: 2.4 lb

Box Dimensions (LxWxH): 9.5 x 5 x 2.9"
